Page 24
Lift Operating Instructions
Lift Power
On/Off Switch
Power
Indicator
Light
Before lift operation, park the vehicle on a level
surface, away from trafc. Place the vehicle
transmission in “Park” and engage the parking
brake.
Manual Door(s): Open manual doors fully and
secure in full open position before operating the
lift.
Power Door(s): Open and close power door(s)
using the pump module OPEN/CLOSE switch,
or optional remote control. Optional power
door(s) cannot be activated using the hand-
held pendant.
Do not operate the lift if you suspect lift
damage, wear, or any abnormal condition.
Refer to the Manual Operating Instructions to
manually operate lift.

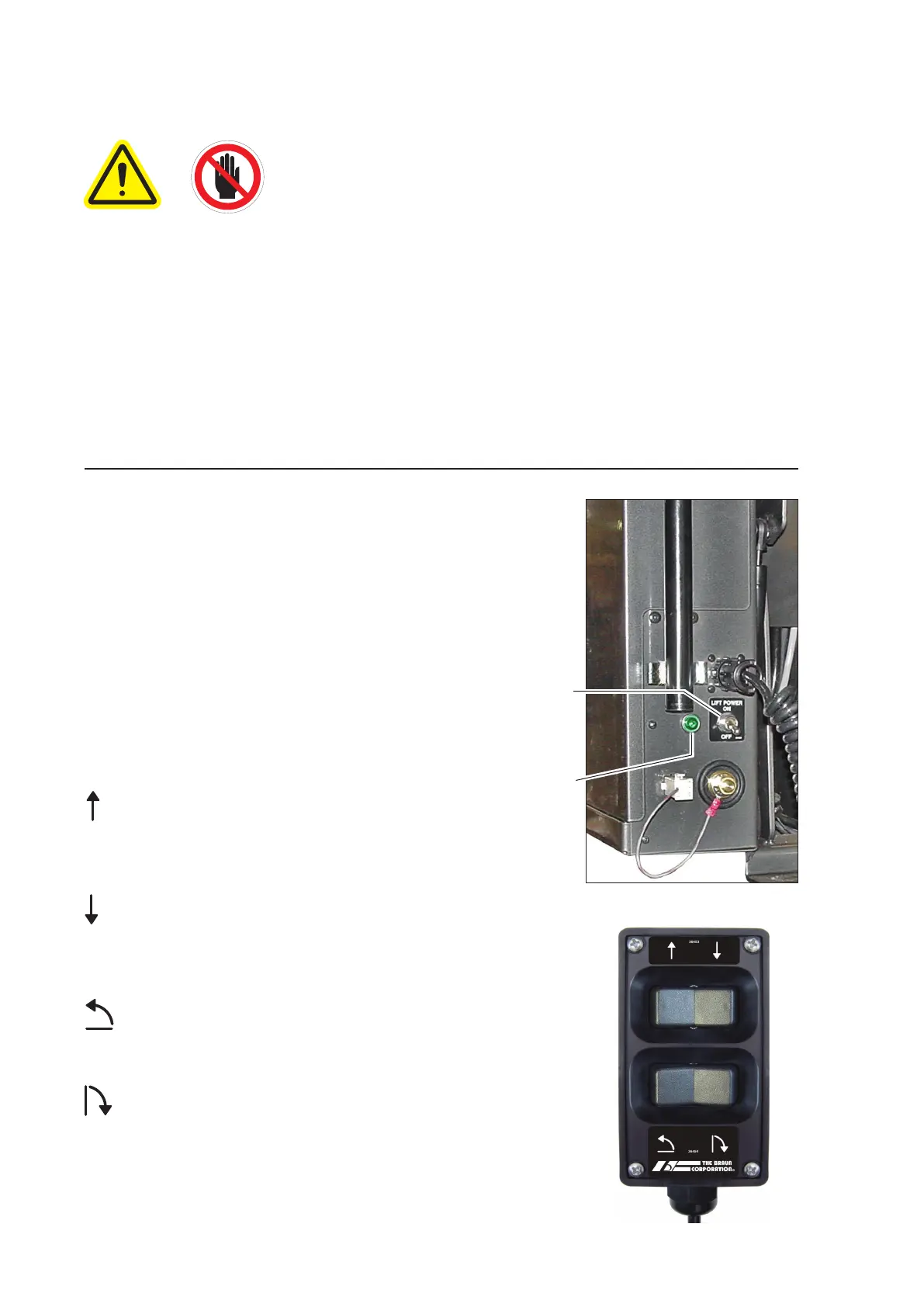

Hand-held
Pendant Control
36514
Lift Power ON/OFF Switch: This switch must be
in the ON position in order to activate the lift. The
green Power Indicator Light illuminates to signal
power to the lift.
UP: From ground level, the UP function will
raise (rotate) the roll stop to the vertical
position. The platform then raises to oor level
position.
DOWN: From oor level, the DOWN function
lowers the platform to ground level and then
unfolds (lowers) the roll stop to the ramp (horizon-
tal) position.
Control Switch Functions:
Hand-held Pendant Control: The hand-held
attendant’s pendant control is equipped with two
rocker switches. When there is power to the lift,
the lift function labels illuminate to identify the
functions.
FOLD: From oor level, the FOLD function
folds the platform inward to the stowed
position.
UNFOLD: From stowed position, the
UNFOLD function unfolds the platform out-
ward to the oor position.
Note: If any functions do not occur as
described, discontinue lift use immediately.
