Braun L955SE3143IB-2 User Manual

Page 33

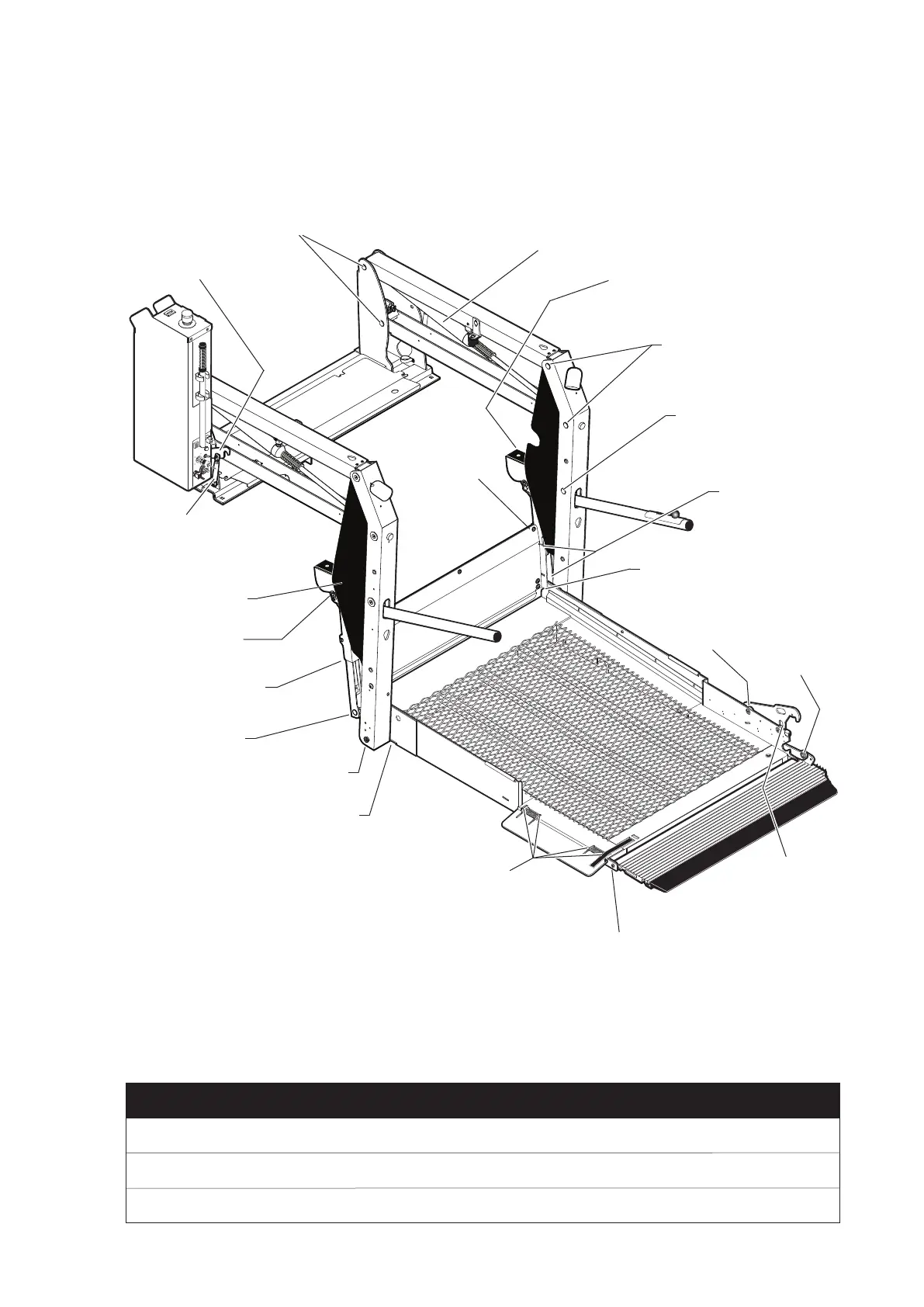

Lubrication Diagram
Maintenance and Lubrication Schedule
Specied (recommended) Available Braun
Lubricant Type Lubricant Amount Part No.
See the Maintenance/Lubrication Schedule for recommended applications per number of cycles.
LO - Light Oil
DE - Door-Ease
LG - Light Grease
15807
15806
15805
Light Penetrating Oil
(30 weight or equivalent)
LPS2, General Purpose
Penetrating Oil
16 oz.
Aerosol Can
Stainless Stick
Style (tube)
Door-Ease
Stick (tube)
1.68 oz.
Light Grease
(Multipurpose)
Lubriplate
14 oz.
Can
Lift-Tite
™
Latches
(Tower Pivot Points - 2)
LO
Parallel Arm
Pivot Pin
Bearings (16)
LO
Lift-Tite
™
Latch
Dampening Spring
(2 springs - 4 Points)
LO
Hydraulic Cylinder
Pivot Bushings (8)
LO
Roll Stop Lever
Bearings (2)
LO
Roll Stop Latch
Pivot Point
LO
Bridge Plate
Pivot Bearings (2)
LO
Outer
Fold Arm
Roller Pin
Bearings (4)
LO
Bridge Plate
Lever Bearings (2)
and Slots (2)
LO
Handrail / Switch
Arm Pivot Pin
Bearings (4)
LO
Parallel Arm
Pivot Pin Bearings (16)
LO
Saddle Bearings (2) / Buttons (4)
DE
Saddle Support
Bearings (8)
LO
Outer Fold Arm
Cam Followers (4)
LO
Inner/Outer Fold Arm
Contact Area (2)
LG
Inner Fold Arm
Bearings (8)
LO
Platform Pivot Pin Bearings (4)
LO
Lift-Tite
™
Latch Rollers (2)
LO
Side Entry Hinge
Pivot Points (4)
LO
Roll Stop Hinge
Pivot Points (2)
LO
Roll Stop
Latch Slot
(Both Sides)
LG
