BraunAbility 02 Series - Lubrication Diagram

Page 8
Specied (recommended) Available BraunAbility
Lubricant Type Lubricant Amount Part No.
LO - Light Oil
LG - Light Grease
Light Grease Lubriplate 14 oz.
(Multipurpose) Can
Light Penetrating Oil LPS2, General Purpose 16 oz.
(30 weight or equivalent) Penetrating Oil Aerosol Can
Stainless Stick Door-Ease 1.68 oz.
Style (tube) Stick (tube)
DE - Door-Ease
15807
15806
15805
See the Maintenance/Lubrication Schedule for recommended applications per number of cycles.
Maintenance and Lubrication

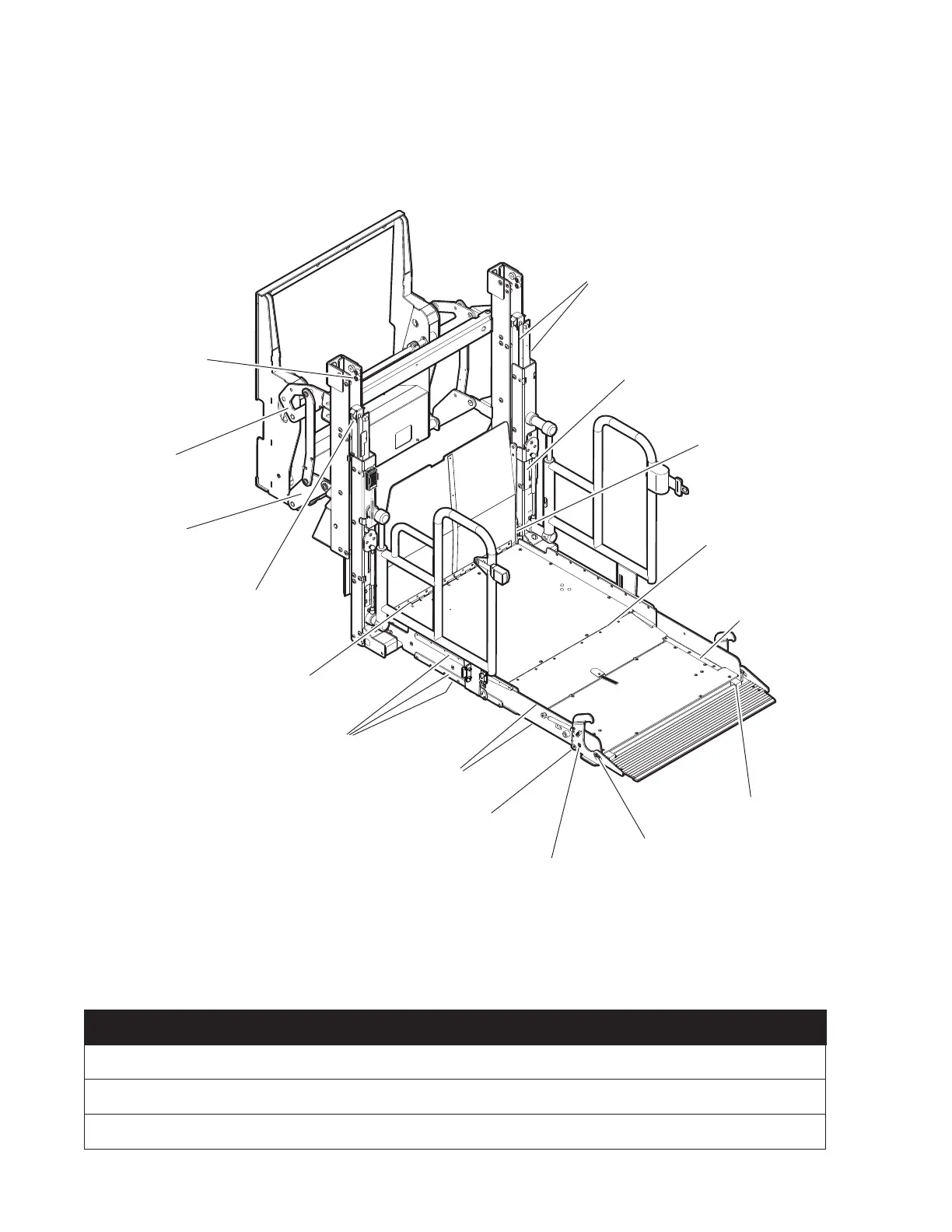

Lubrication Diagram
STOW
DOWN UP
Upper
Control Arm
Pivot Points (8)
LO
Lower
Control Arm
Pivot Points (6)
LO
Intermediate Beam
Chain Roller (2)
LO
Inner / Outer
Vertical Channel
Roller Pins (56)
LG
Inner
Roll Stop
Hinge
LO
Transition Plate
Ramp Hinge
LO
Sliding Platform
Guides (2)
(bottom edge)
DE
Outer Barrier
Pivot Bearings (2)
LO
Outboard
Side Plates
(4 places)
DE
Outer Barrier
Latch Pivot (2)
LO
Outer Barrier
Bracket Slot (2)
(both sides)
LG
Inner Roll Stop
Slide Bracket Slot Area (2)
(front & back)
DE
Inner Roll Stop
Lever Rollers (2)
and Bearings (2)
LO
Intermediate
Vertical Channel
(I-Beam) Edges (8)
DE
Outer Barrier
Latch Split Foot
Pivot
LO
Platform Slide
Tracks (6)
