BraunAbility 02 Series - Switch and Sensor Locations

Page 3

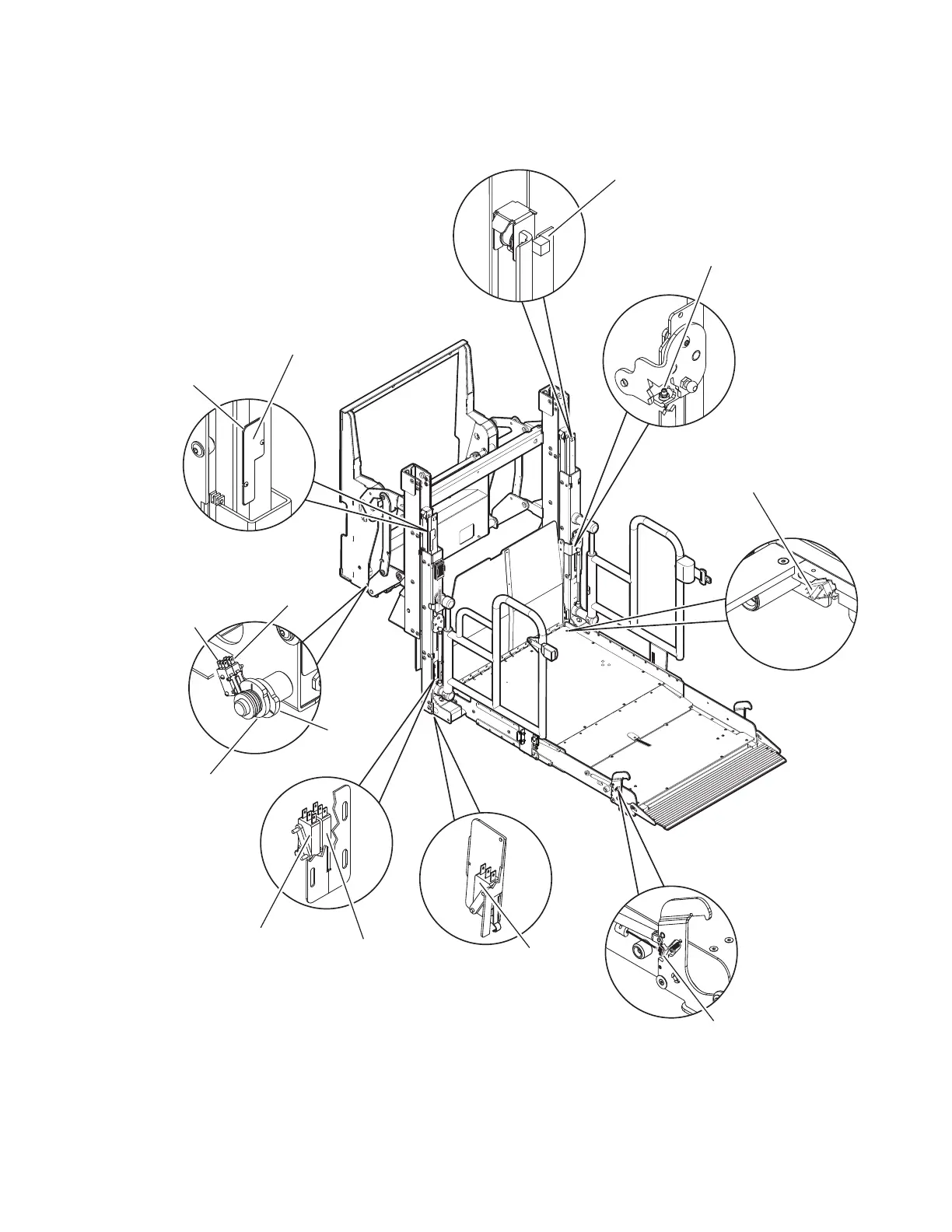

Switch and Sensor Locations
STOW
DOWN UP
Inner Roll Stop
Occupied Switch
15754
Platform Unfold
Limit Switch
30205
Stow Level
Limit Switch
30205
Inner Roll Stop
Deployed
Limit Switch
30205
Floor Level
Limit Switch
30205
Full Out
Limit Switch
30205
Full Out
Cam
400024
Full In
Cam
400024
Full In
Limit Switch
30205
Inner Roll Stop Deployed -
Floor Level Cam (Outer)
500-2015BM
Inner Roll Stop Deployed -
Floor Level Cam (Inner)
500-2014BM
Inner Roll Stop Up
Activation Block
Outer Barrier
Occupied / Raised
Microswitch
34769A
