BraunAbility 02 Series - Lift Terminology

Page 2
STOW
DOWN UP
Rear
Front
Outboard
(passenger's side)
Inboard
(driver's side)
“Arrows/30°-30°”6-13-90
(of vehicle)
(of vehicle)
Outboard
Right
Left
Inboard

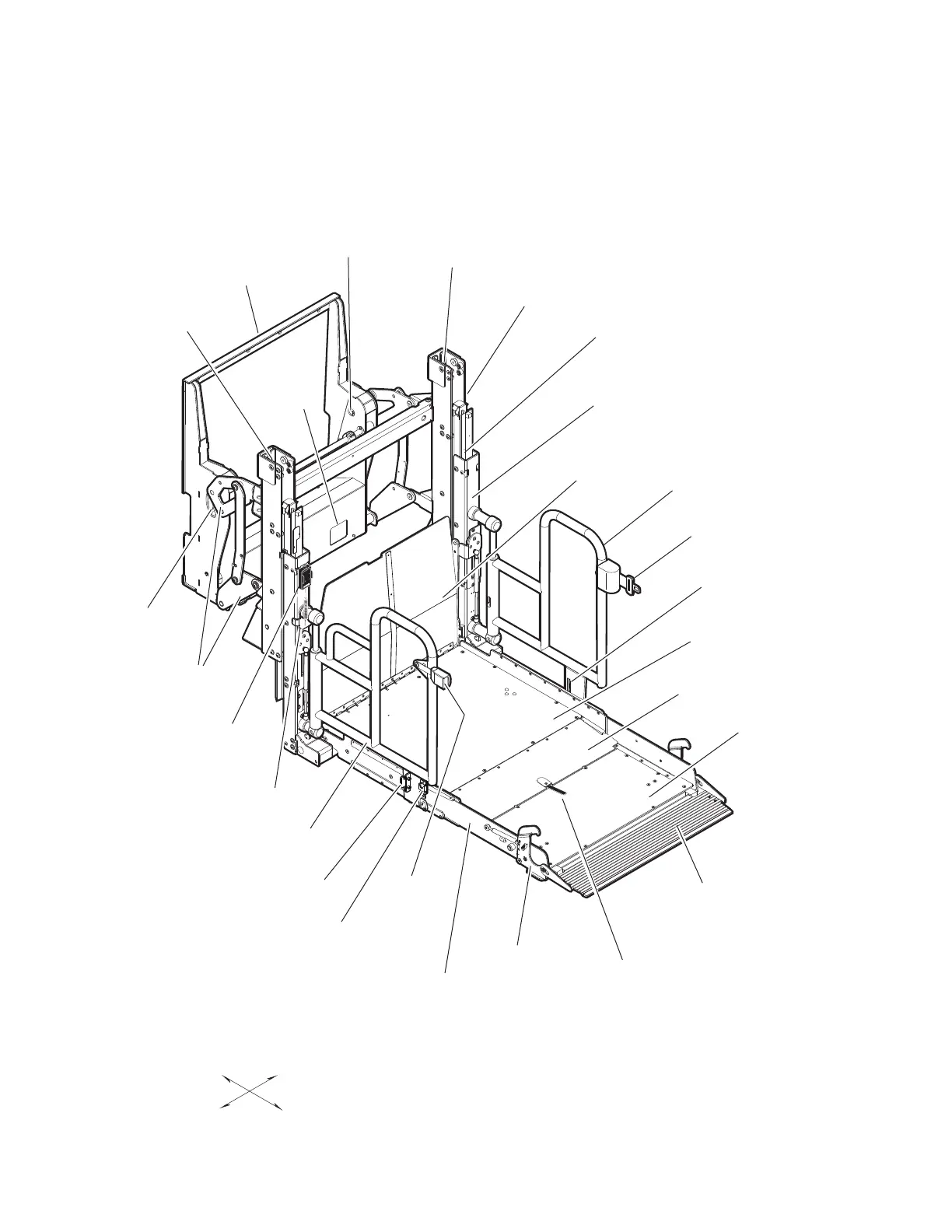

Lift Terminology
Raise / Lower
Hydraulic
Cylinder
(not visible)
Hand-Held
Attendant's
Control Pendant
Inner
Roll Stop
Outer Barrier
Inner
Vertical
Channel (2)
Upper/Lower
Control Arms (2)
Right
Handrail
Pump
Module
Inner
Platform
Outer
Platform
Raise / Lower
Hydraulic
Cylinder
(not visible)
Stow / Deploy
Hydraulic
Cylinder
Outer Barrier
Latch (2)
Outboard
Platform
Side Plates (2)
Mounting
Base
Outer
Vertical
Channel (2)
Intermediate
Vertical
Channel
(S-Beam)-2
Transition
Plate
Left
Handrail
Stow / Deploy
Hydraulic
Cylinder
Transition Plate
Strap
Handrail
Belt
Platform
Support Bracket (2)
Handrail
Latch
Handrail
Belt
Receptical
Platform
Latch
Pendant
Clip
