Brecknell C3236 - 5 Scale Configuration [LF 2]

AWT35-501815 Issue AB C3236_u_en_501815.docx Page 16

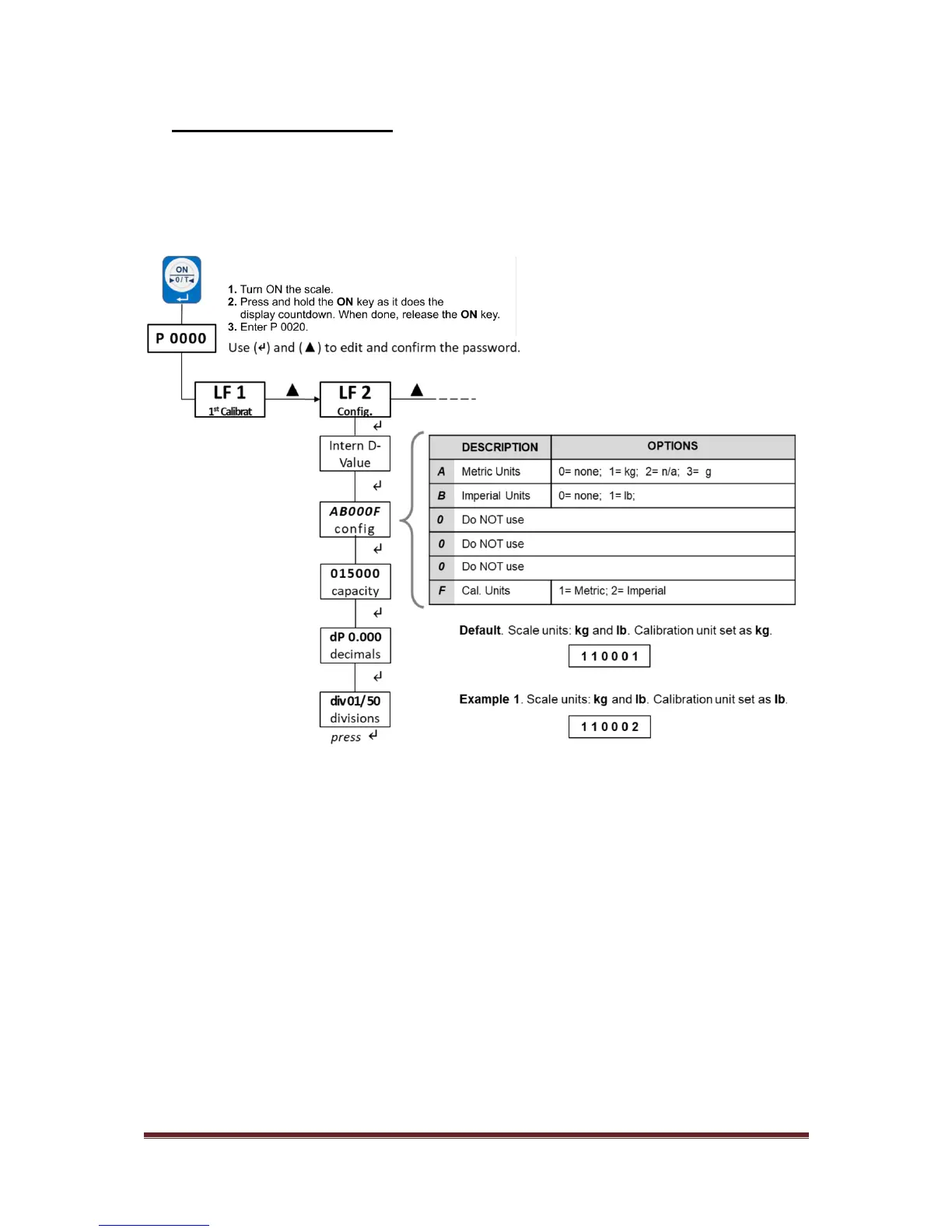

5. Scale Configuration [LF 2]
Enter the function LF 2 to set the units, range mode, calibration units, decimal position of the
separator and division size.
Navigate the menus and increase a numeric value by pressing FN (▲) key. Use ON/ZERO/TARE (↵)
key to confirm and/or move to the next option or numeric value position. Press UNIT (ESC) key to exit
the option or the menu.
