Brecknell C3236 - Front Panel; Display Annunciators

AWT35-501815 Issue AB C3236_u_en_501815.docx Page 8
When the scale is turned on, the battery annunciators are:
- LOW BATTERY, battery needs to be recharged;
- CHARGE, battery is being charged (6hrs).
Do not use any other type of power adaptor than the one
supplied with the scale and verify that the AC power
socket outlet is properly protected.
Charge the battery before using (+6hrs).
Caution! When cleaning or washing down the
scale, please insure the power adaptor is fully
removed from the scale prior to cleaning.

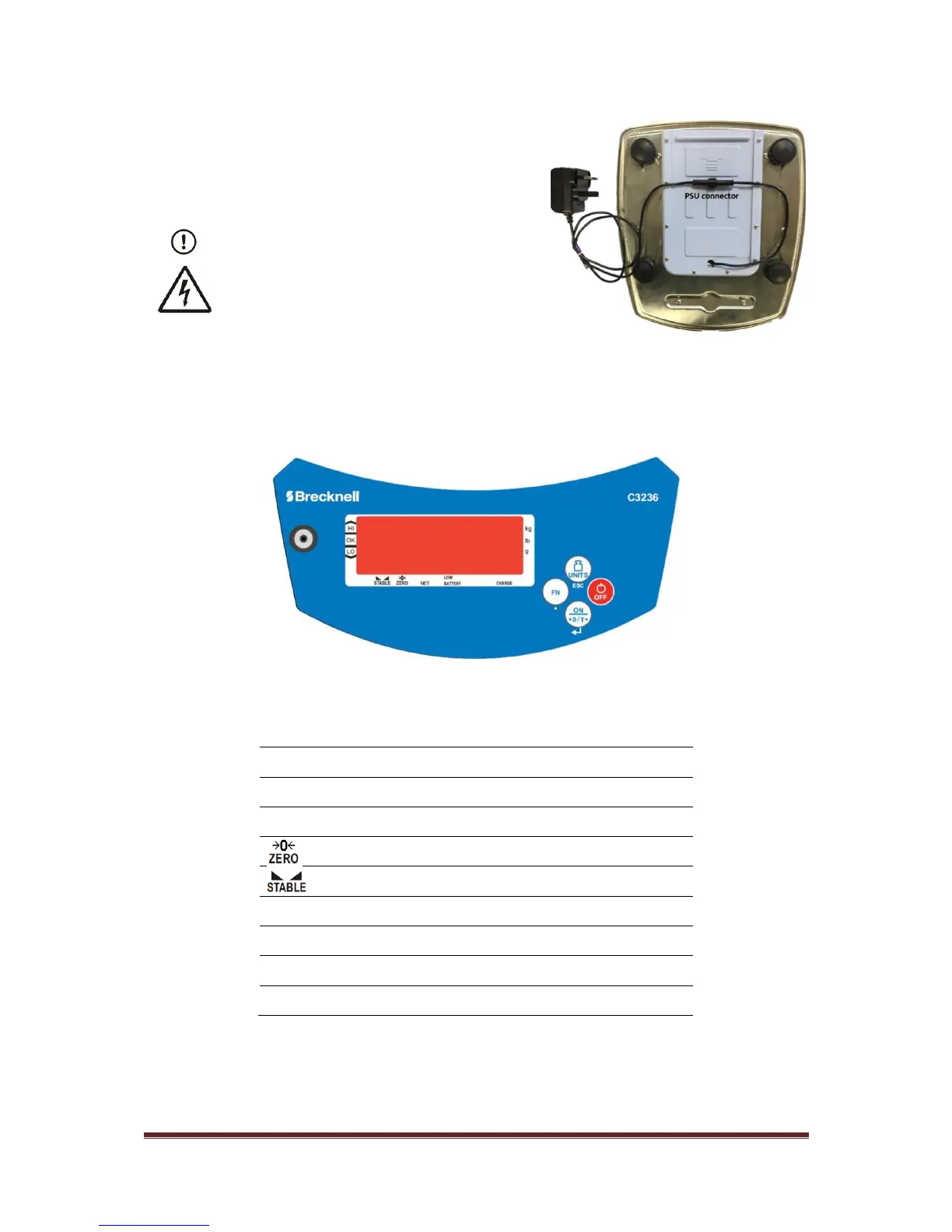

Figure 1 - C3236 underside view.
2.5. Front Panel
Figure 2 shows the front panel of the unit. It includes the display window, the annunciators arrayed
around the display, the four keys, and the bubble level.
Figure 2 - C3236 front panel.
2.5.1. Display Annunciators
HI
Over acceptable weight range
OK
Within acceptable weight range
LO
Under acceptable weight range
Scale at Zero
Display reading is stable
NET
Indicates a Net weight
LOW BATTERY
Battery needs to be recharged
CHARGE
Battery is being charged (6hrs).
kg lb g
Current unit of measure
