Brent 1082/882 — Set Up
2-12
Optional Weather Guard Tarp Installation (continued)

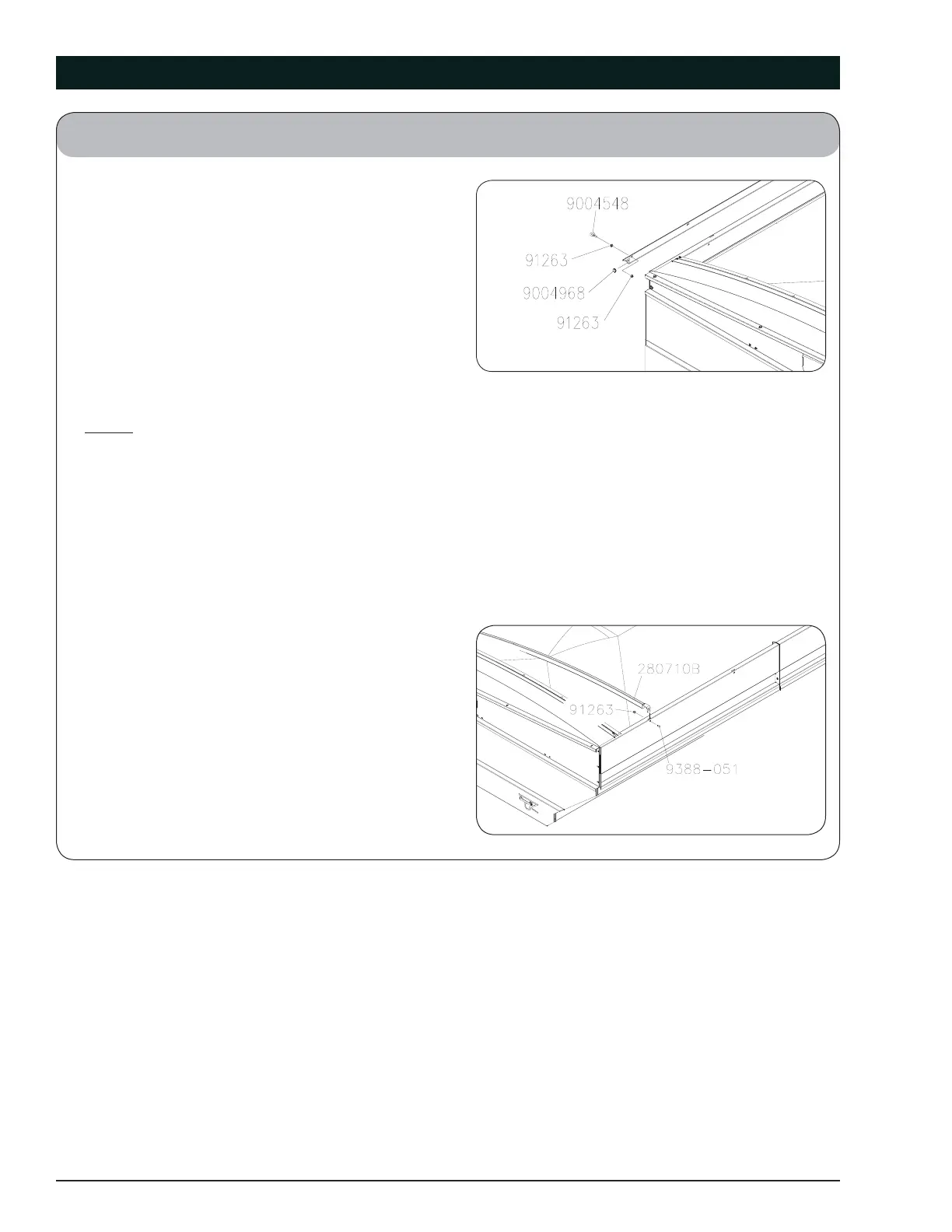

4. Secure latch plate (221670) to front of panel
with eyebolt (9004548) and two fl ange nuts
(91263). See fi gure 4.
The latch plates are divided in the center of the
cart with pre punched holes for ease of assembly.
Locate the front and rear latch plates. Looking at
the right side of the cart, position the front latch
plate on the front right sideboard. The holes
should line up with the existing tarp bow holes.
Use the provided hardware to attach the latch
plates. Repeat for rear latch plate.
NOTE: If holes are not drilled in the
sideboards or panels for attaching latch
plates, locate the hold position by attach-
ing latch plates to the right side panel
or boards using the existing bow bracket
holes and provided hardware. Drill the necessary
holes with 7/16” drill bit through the center of the
open slots of the latch plate. Finish assembling
the latch plate with the provided hardware.
5. Assemble the bow brackets (280710B) to the
left side panel or side board with carriage bolts
(9388-051) and fl ange nuts (91263). See fi gure
5.
Fig. 4
Fig. 5
(July 2013)
