Brent 1082/882 — Set Up
2-11(November 2014)
Optional Weather Guard Tarp Installation (continued)

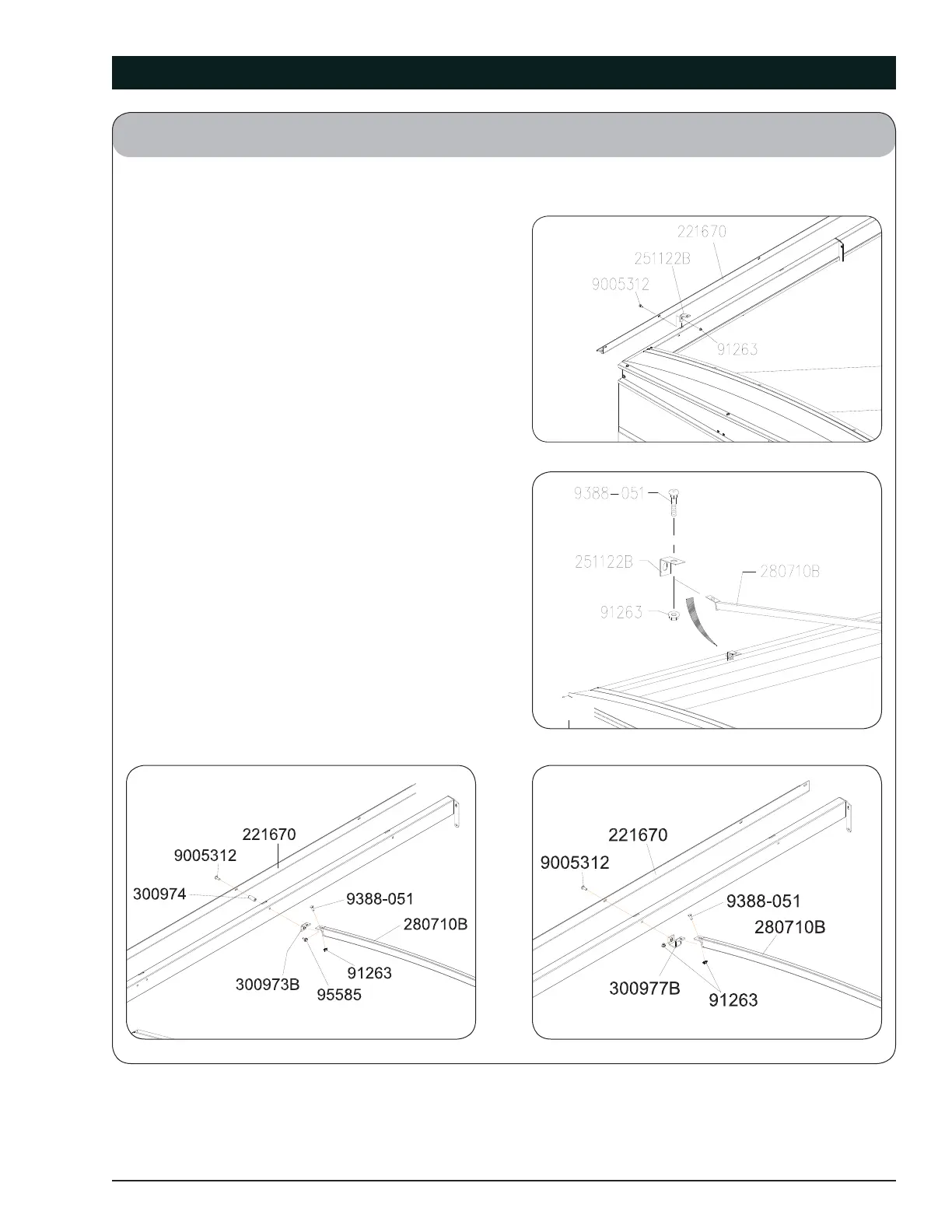

3. Assemble the bow brackets and latch plates:
Models 882 & 1082
(with Old Style Bow Bracket)
Assemble the bow brackets (251122B) and
latch plate (221670) to the right side panel
or side board with torx screw (9005312) and
fl ange nuts (91263). See fi gure 3. Position
the bows (280710B) under the side brackets
(251122B) and retain with carriage bolts (9388-
051) and fl ange nuts (91263). See fi gure 3A.
Same for both the right and left sides.
Model 882
(with New Style Bow Bracket)
Assemble the bow brackets (300973B) and
latch plate (221670) to the right side panel or
side board with torx head screw (9005312),
boss tube (300974) and capscrew (95585). Se-
cure to side board using capscrew (9388-051)
and fl ange nut (91263). See fi gure 3B.
Model 1082
(with New Style Bow Bracket)
Assemble the bow brackets (300977B) and
latch plate (221670) to the right side panel or
side board with torx head screw (9005312) and
fl ange nut (91263). Secure to side board using
capscrew (9388-051) and fl ange nut (91263).
See fi gure 3C.
Fig. 3
Model 1082
Model 882
Fig. 3B
Fig. 3C
Fig. 3A
