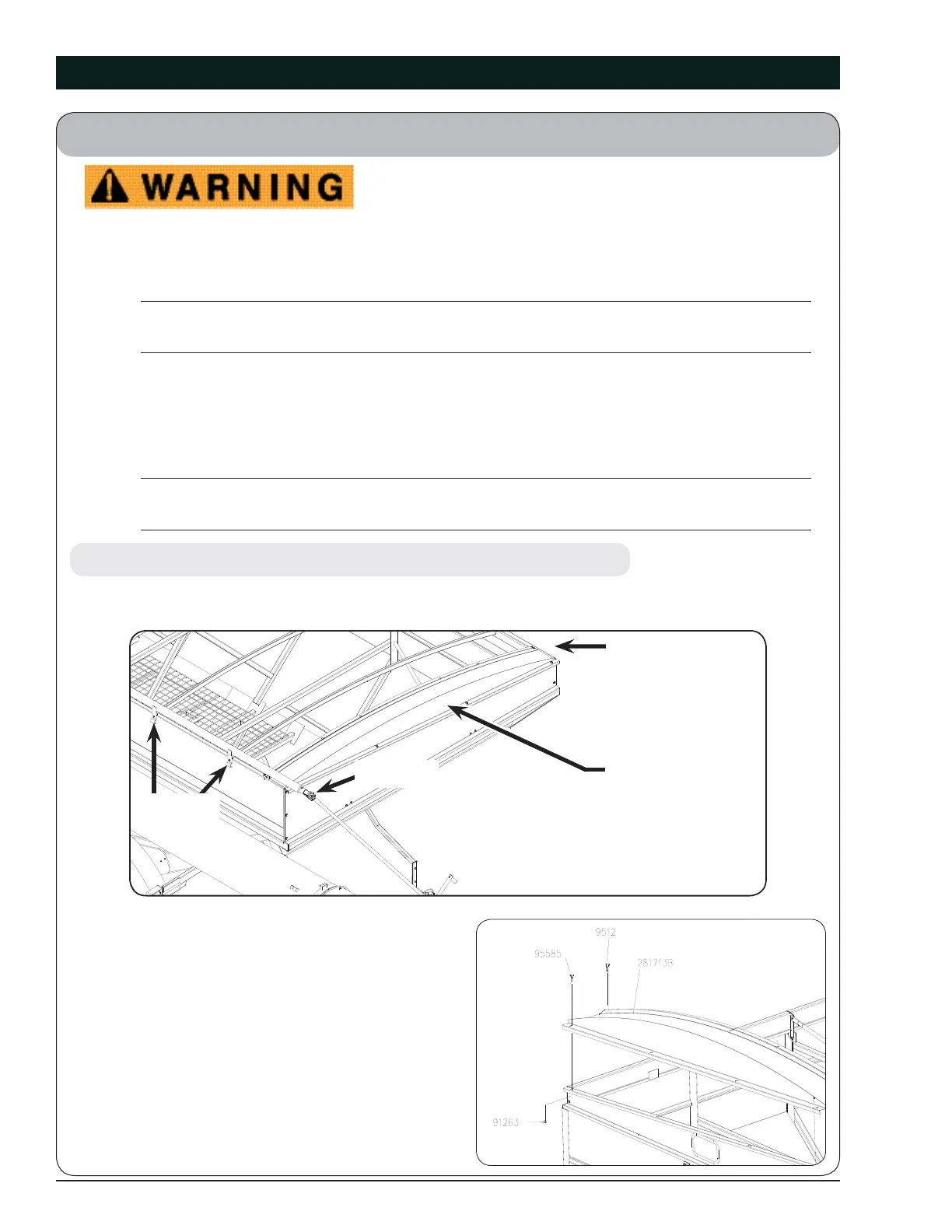

Brent 1082/882 — Set Up
2-10
Optional Weather Guard Tarp Installation
• TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE
PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING INSIDE,
AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE IS RESTRICTED
MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE CART.
• EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT
MUST BE WORN WHILE SERVICING IMPLEMENT.
• FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER
THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES
AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY
INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 250 LBS. SPECIFIC
LOAD RATINGS FOR INDIVIDUAL LOADS WILL BE GIVEN AT THE APPROPRIATE TIME
IN THE INSTRUCTIONS.
• TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH.
BE SURE MACHINE IS SECURELY BLOCKED.
End Caps, Bows
1. Install the side board extensions to the box.
2. Assemble the end caps (281713B) to the front
and rear side boards with fl ange screws (95585)
and fl ange nuts (91263). Fasten to right and
left side boards with self-threading screws
(9512). Install Trim-lok on front board. See Fig.
2.
Fig. 1
Tarp Stops
U-Joint
End Cap
Latch Plates
Fig. 2
(July 2013)
