PTO Shaft and Clutch (continued)

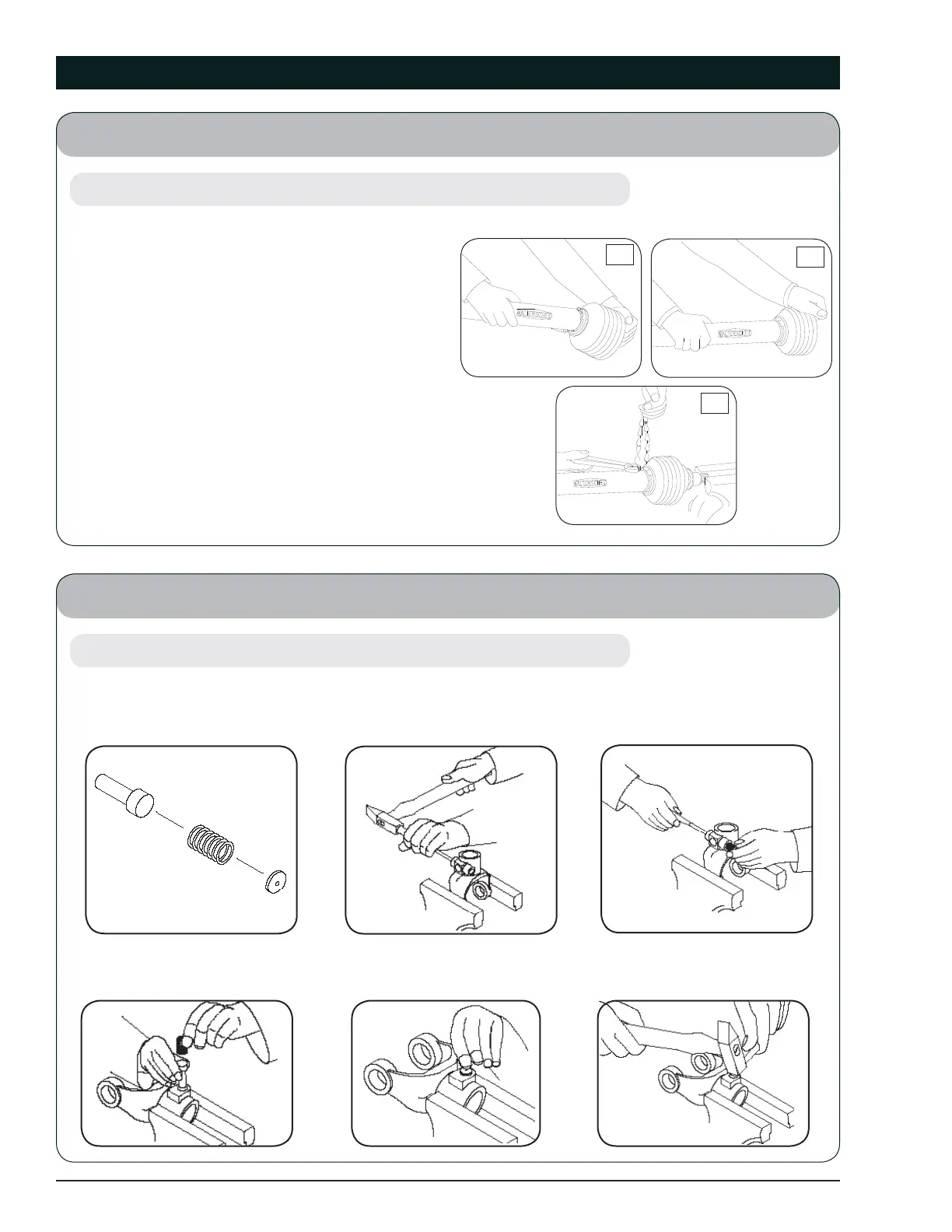

To Assemble Cone (Figs. L1 - L3)
1. Dismantle guard (Figs. J1 - J3). Remove
old cone (e.g. cut open with knife). Take off
chain. Place neck of new cone in hot water
(approx 80
o
C / 180
o
F) and pull onto bearing housing
(Fig. L1).
2. Turn guard cone into assembly position (Fig.
L2). Further assembly instructions for guard
(Figs. K1 - K5).
3. Reconnect chain if required (Fig. L3).
L1
L2
L3
(October 2011)
Quick-disconnect
Pin
Compression
Spring
Washer
PTO Quick Disconnect
Quick Disconnect Pin
Using a drift punch and hammer, drive the pin towards the retaining washer to force the
complete assembly out. Clear the edges of the retaining washer bore to accept the new one
by removing the deformed metal from the last peening operation to hold the washer in place.
Insert quick-disconnect pin, compression spring and washer into hole, Holding the washer in
place, peen the edges of the pore seat to retain the washer, spring and pin.
