Brent 1082/882 — Set Up
2-16
Optional Weather Guard Tarp Installation (continued)
Hand Crank
14. Locate the mounting bracket underneath the
rear perimeter, centered on the box. Use cap-
screws (9390-099) and fl ange nuts (9002058) to
attach the crank holder tube (265706B). Attach
brackets (265743B & 221700B) to crank holder
tube (265706B) using capscrew (9390-055) and
locknut (9928). See fi gure 12.
NOTE: A slight bow in the crank tube should
indicate adequate tension.
NOTE: U-Joint may need to be re-indexed on
the splined shaft of the roll tube to achieve
an ideal tarp tension. Over time it may need
to be readjusted.

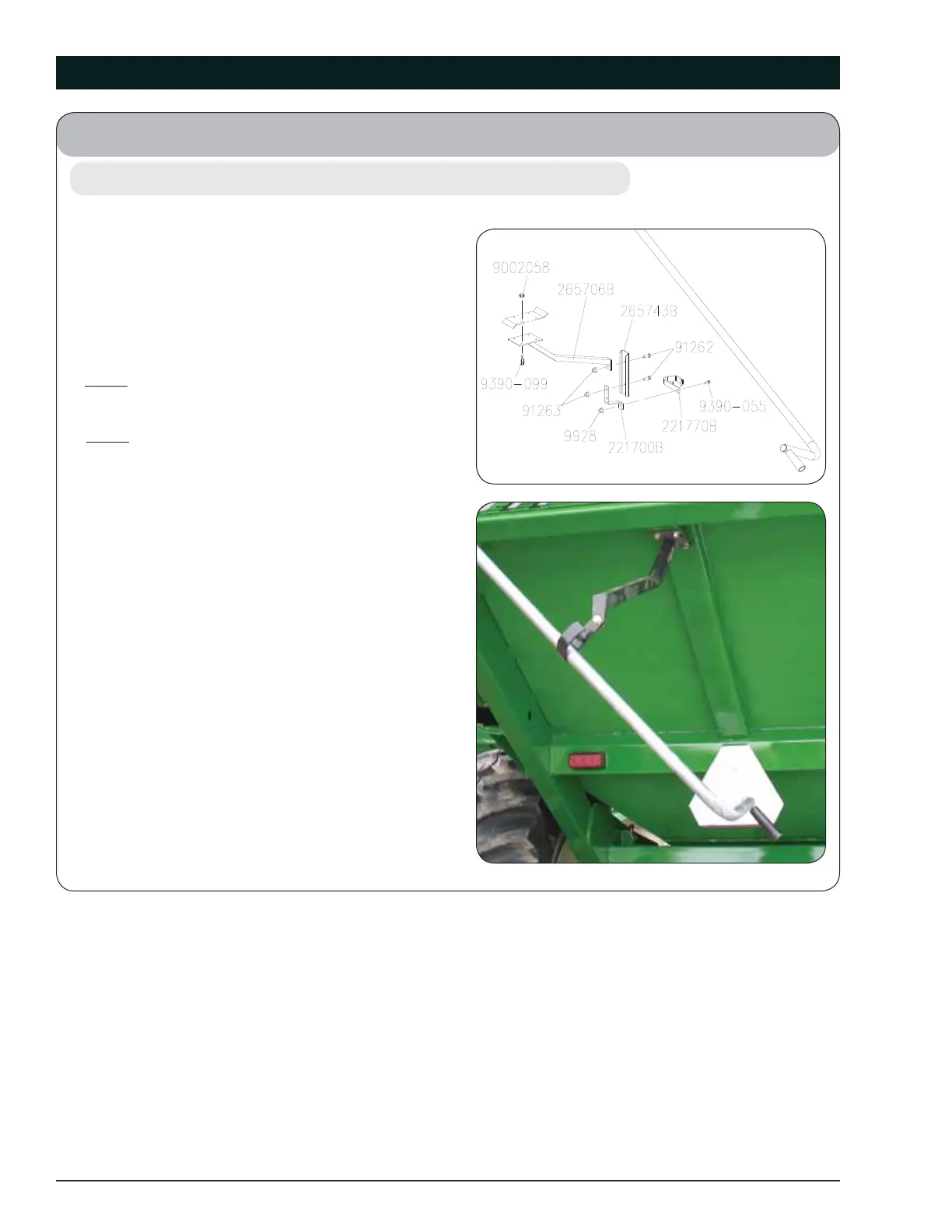

Fig. 12
(July 2013)
To Next Page
