Brent 1082/882 — Maintenance
4-4
Auger System
(April 2015)
Nuts to be on
Opposite Side of Tube

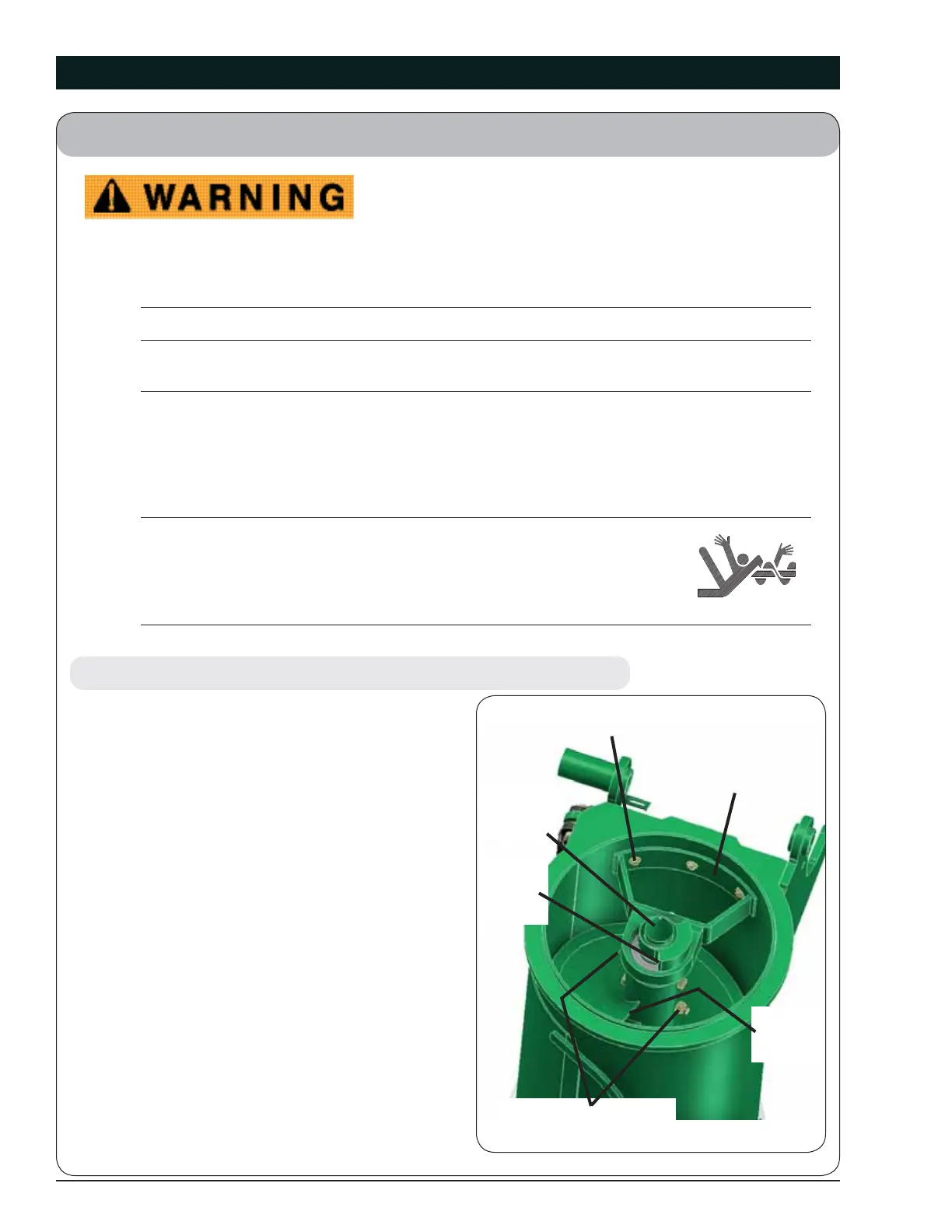

Fig. 4-1
Capscrew (9390-056), Flat Washers (9405-076),
Lock Washer (9404-021), Hex Nut (9394-006)
Hanger Bearing
Weldment (281502B)
Drive Dog
(281506B)
Flighting
Trailing
Edge
Drive
Lobe
Surface
• TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE
PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING INSIDE,
AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE IS RESTRICTED
MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE IMPLEMENT.
• KEEP HANDS CLEAR OF PINCH POINT AREAS.
• EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT
MUST BE WORN WHILE SERVICING IMPLEMENT.
• FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER
THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES
AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY
INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 4,000 LBS. SPECIFIC
LOAD RATINGS FOR INDIVIDUAL LOADS WILL BE GIVEN AT THE APPROPRIATE TIME
IN THE INSTRUCTIONS.
• MOVING OR ROTATING COMPONENTS CAN CAUSE SERIOUS IN-
JURY OR DEATH. ALWAYS DISCONNECT POWER SOURCE BEFORE
SERVICING. ENSURE SERVICE COVERS, CHAIN/BELT COVERS AND
CLEAN-OUT DOOR(S) ARE IN PLACE AND SECURELY FASTENED
BEFORE OPERATING MACHINE.
Lower Auger Disassembly
1. Remove the three 3/8-16UNC x 1 1/4 cap-
screws (9390-056), six fl at washers 3/8” (9405-
076), three lock washers 3/8” (9404-021) and
hex nuts 3/8-16UNC (9394-006) which secures
the hanger bearing weldment (281502B) to the
auger tube (Fig. 4-1).
2. Using a safe lifting device rated for a minimum
of 700 lbs., remove auger from auger tube and
perform required repair or replacement.
3. Remove the two 5/8-11UNC x 6 capscrews
(9390-136), lock washers 5/8” (9404-029) and
hex nuts 5/8-11UNC (9394-014) which secures
the drive dog to the auger as shown in Fig. 18.
To Next Page
