Brent 1082/882 — Maintenance
4-20
PTO Quick Disconnect (continued)

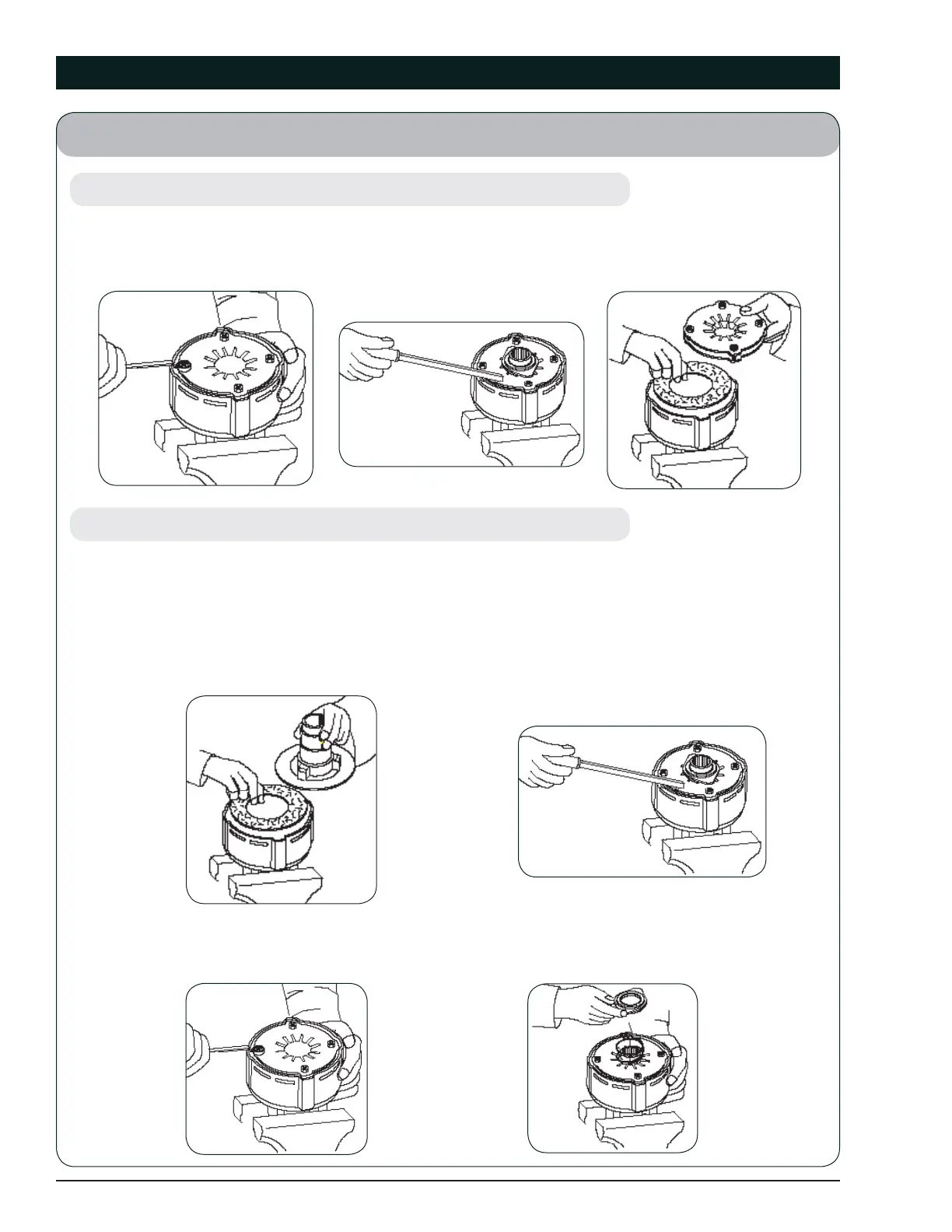

Clutch Disassembly
Tighten the four hex nuts (12) uniformly until the clutch pack and hub are loose. Use special tool
9002007 to bend all four retaining lugs back on the edge of the clutch housing. Remove the thrust
plate with Belleville springs to get at the friction disks, drive plates and hub for inspection and service.
Clutch Assembly
Place hub and friction disks into the clutch housing. Note that items #8 and ( are only used in the four
plate clutch. Next, compress the Belleville spring(s) to the pressure plate by tightening the four hex
nuts and placing them into the clutch housing as illustrated.
Use special tool #9002007 to bend the retaining lugs inward over the Belleville spring edges
to secure the springs when you back the four hex nuts off. (Note: Wide lugs for one (1)
Belleville spring, narrow lugs for two (2) Belleville springs).
With the lugs in place, loosen the four hex nuts completely to the end of the threaded studs. Replace
the quick-disconnect assembly.
