WIRELESS 7-IN-1 SENSOR
16
15
14
12
13
11
10
2
3
6
1
4
5
7
9
8

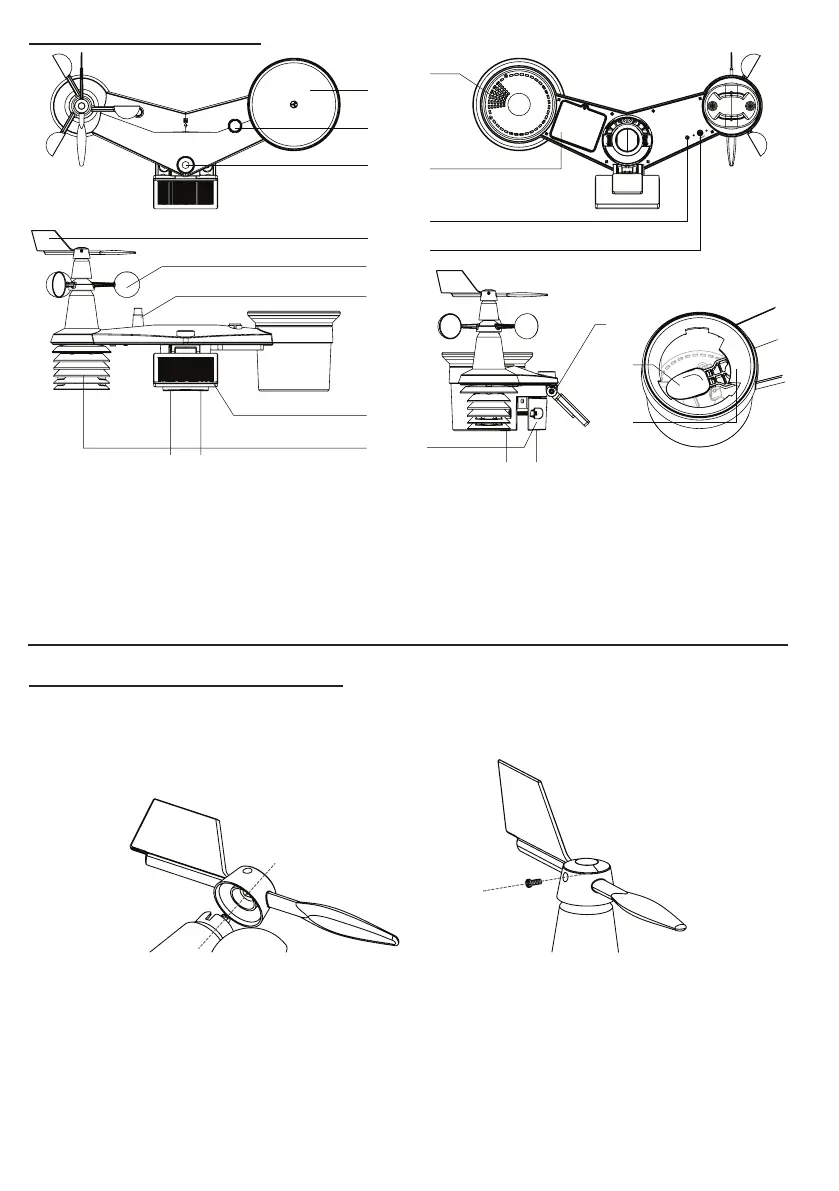

1. Rain collector
2. Balance indicator
3. UVI / light sensor
4. Wind vane
5. Wind cups
6. Antenna
7. Solar panel
8. Radiation shield and
thermo-hygro sensor
9. Drain holes
10. Battery door
11. Red LED indicator
12. [ RESET ] key
13. Mounting clamp
14. Adjustable hinge of solar
panel
15. Tipping bucket
16. Rain sensor
INSTALLATION AND SETUP
INSTALL WIRELESS 7-IN-1 SENSOR
INSTALL WIND VANE
With reference to photo below, (a) locate and align the at are on the wind vane shaft to the at surface on
the wind vane and push the vane onto the shaft. (b) tighten the set screw with a precision screwdriver.
Step 1 Step 2
