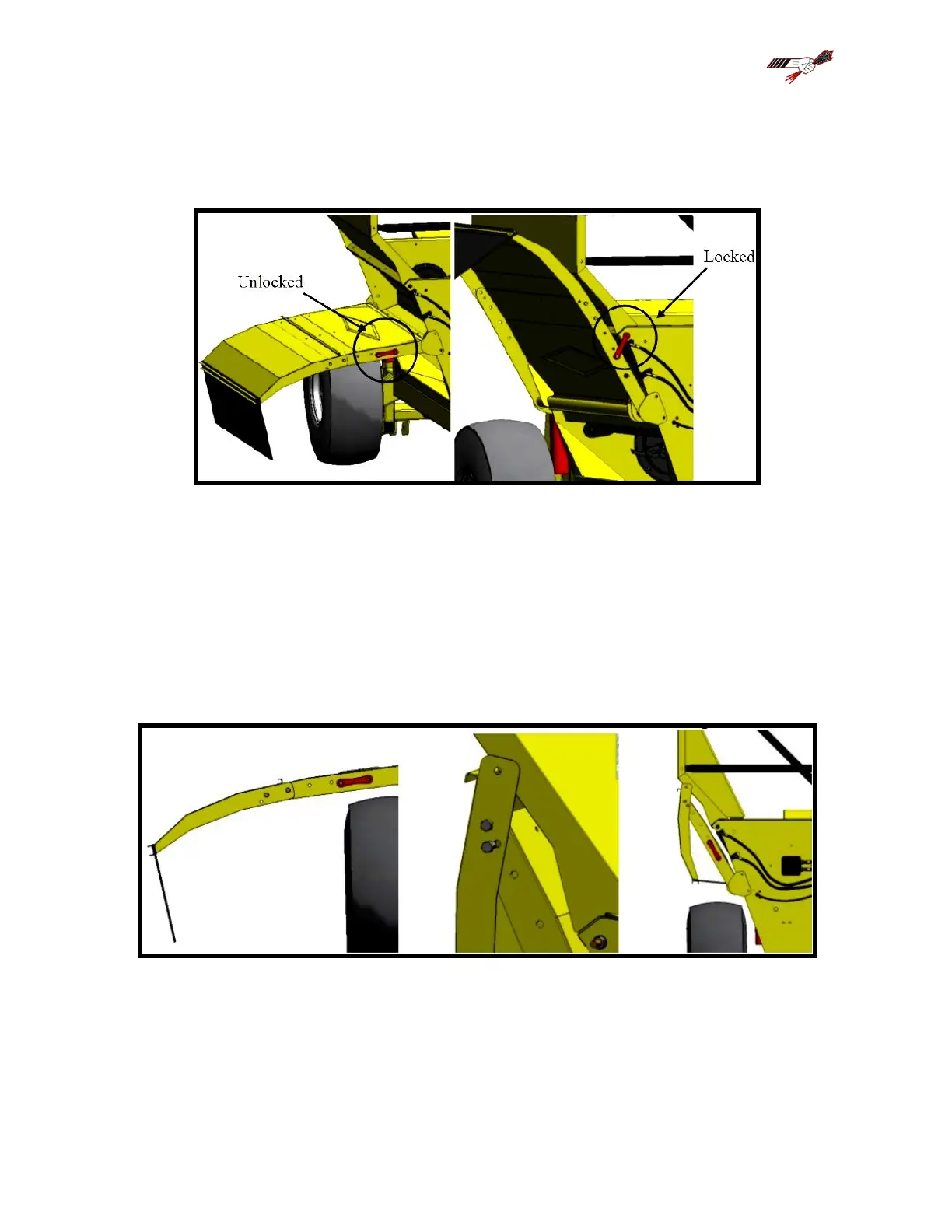

For transport and storage, the deflector lock should be put in place by swinging the lock as shown
and fastening with a lynch pin.
The Bale King 5300 deflector also has the ability to fold for more compact long term storage or
long distance transport.
• Move the deflector to its lowest position
• Remove the 7 top carriage bolts from the deflector.
• Loosen all the 4 bolts on the front and back of the deflector.
• Raise the deflector to its highest position with the hydraulics. Remove the bolts closest to
the machine center (both front and back) and swing the outer deflector down.
Be sure that the outer deflector fits nicely outside the tub walls. Some fine tuning may be
required. Replace the bolts on the front and back in the available holes as shown. The deflector
should now fit inside the width of the wings.
