Bridgeview BALE KING 5300 - Rotor & Drive Components

Bridgeview Manufacturing Inc.
Page 42

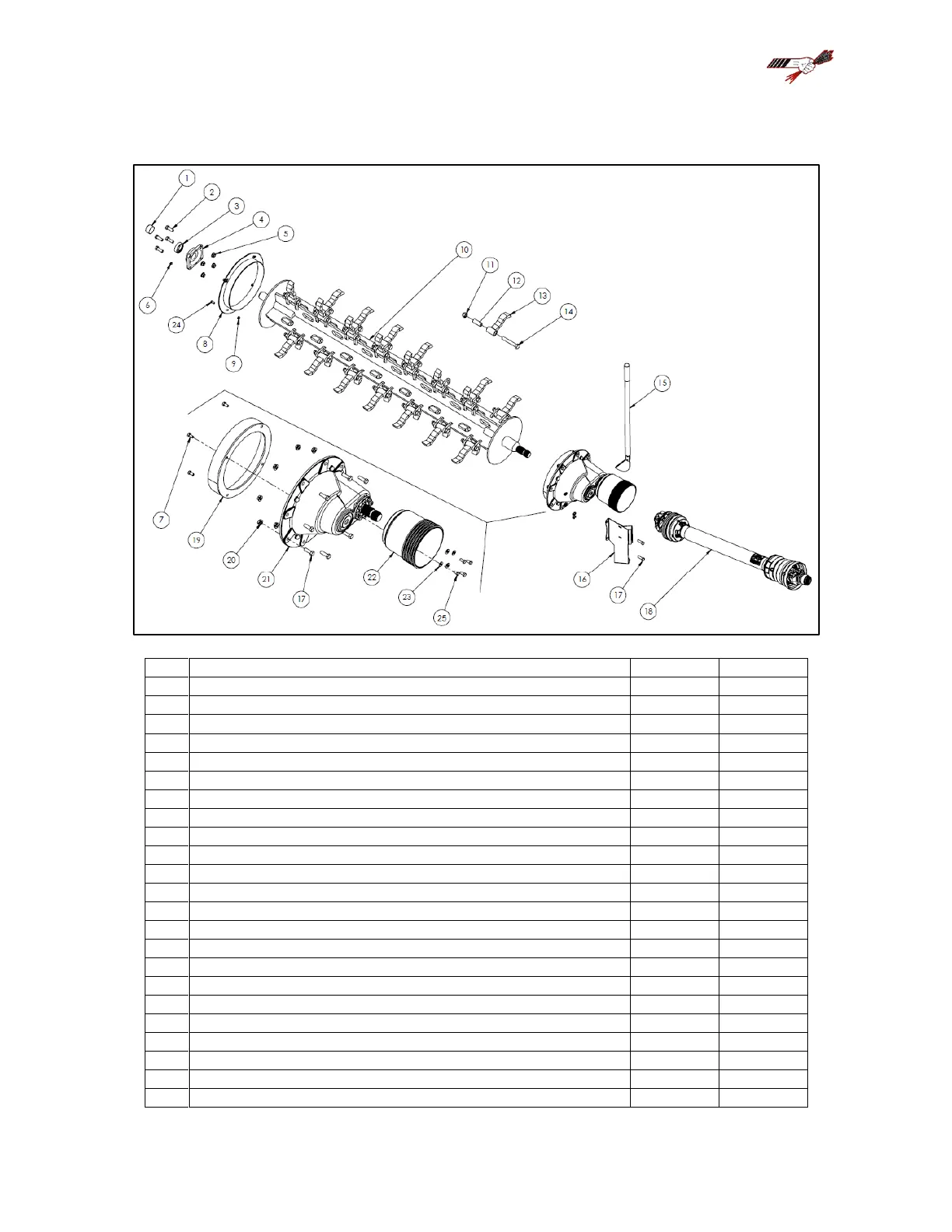

Rotor & Drive Components
#
DESCRIPTION
PART #
QTY
1
Rotor Shaft Cap
17380
1
2
Bolt, 5/8" x 1-3/4" NF Gr. 8
10274
4
3
Lock Collar
10268
1
4
Rotor Bearing * Includes # 3 & 6 *
10221
1
5
Nut, 5/8" NF Serrated Flange Gr. 8
15398
4
6
Grease Zerk, 1/8" NPT Straight
10270
1
7
Bolt, 3/8" x 3/4"
11816
4
8
Rotor Twine Guard, Rear
22413
1
9
Nut, 3/8" Serrated Flange
10271
4
10
X-Rotor Weldment
22449
1
11
Nut, 3/4" Stover Lock
11823
28
12
Brass Flail Bushing
10005
28
13
Rotor Flail
22412
28
14
Bolt, 3/4" x 4-3/4"
10443
28
17
Bolt, 1/2” x 1-1/2”
10174
8
18
PTO Shaft * See Breakdown *
-
1
19
Gearbox Twine Guard
23002
1
20
Nut, 1/2” Stover Lock
20154
8
21
Gearbox Assembly * See Breakdown *
-
1
22
PTO Safety Shield
32679
1
23
Flat Washer, 3/8"
11667
4
24
Bolt, 3/8 x 1"
13806
4
25
Bolt, M10 x 16
25154
4
