Bridgeview BALE KING 5300 - Three Bale Kit Right Arm (Series 1)

Bridgeview Manufacturing Inc.
Page 70

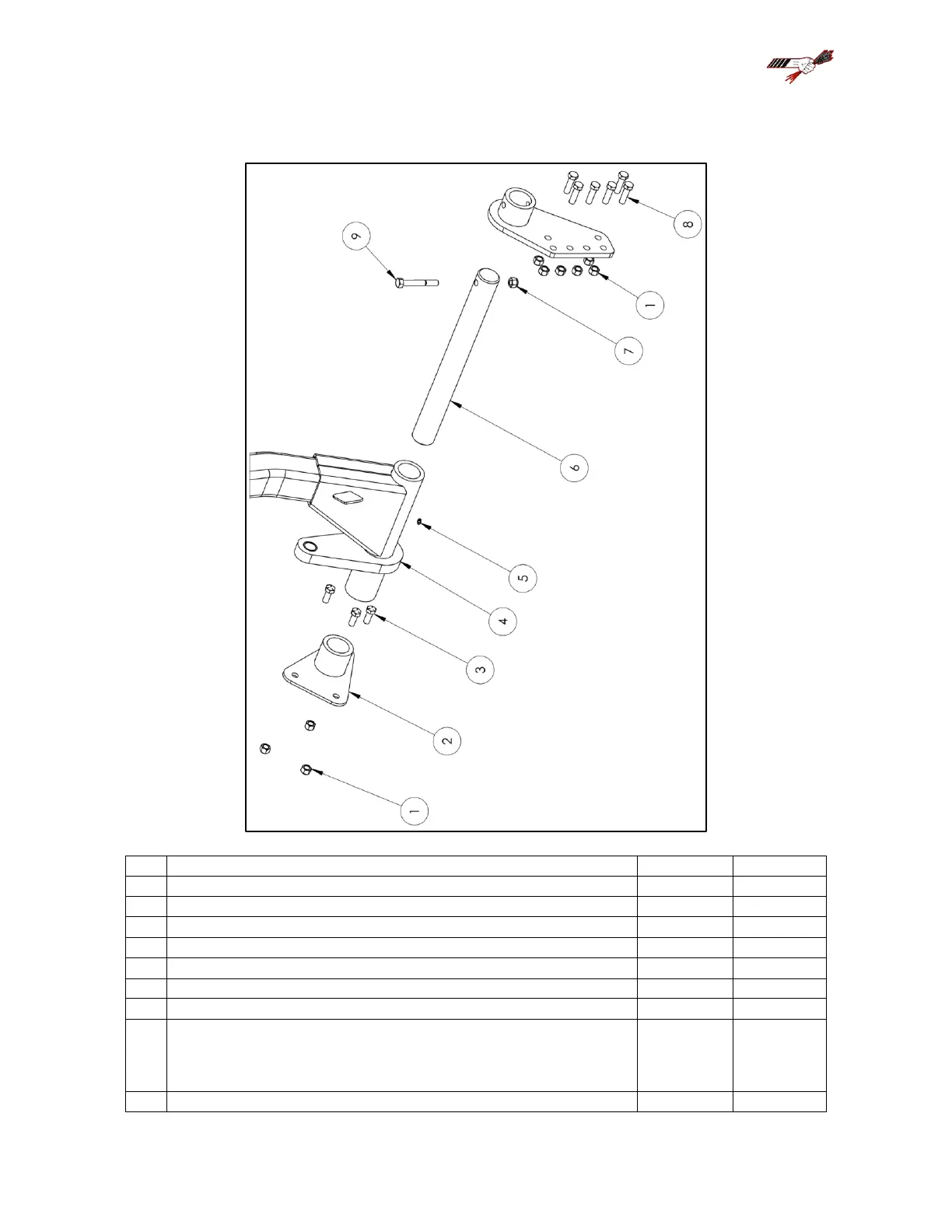

Three Bale Kit Right Arm (Series 1)
#
DESCRIPTION
PART #
QTY
1
Nut, 1/2” Stover Lock Fine Thread
32153
9
2
Tub Mount
31873
2
3
Bolt, 1/2” x 1-1/4” Fine Thread
32152
3
4
3 Bale Kit Right Arm
31854
1
5
Grease Zerk
16364
1
6
Arm Pin
31660
1
7
Nut, 1/2” Nylock
16741
1
8
Bolt, 1/2” x 1-3/4” Fine Thread
NOTE: If your machine only has accommodation for 4 bolts instead of
6, the holes should be drilled out to 5/8” and a 5/8” x 1-3/4” UNF Gr.8
Bolt should be installed.
32151
6
9
Bolt, 1/2” x 3-1/2”
10353
1
