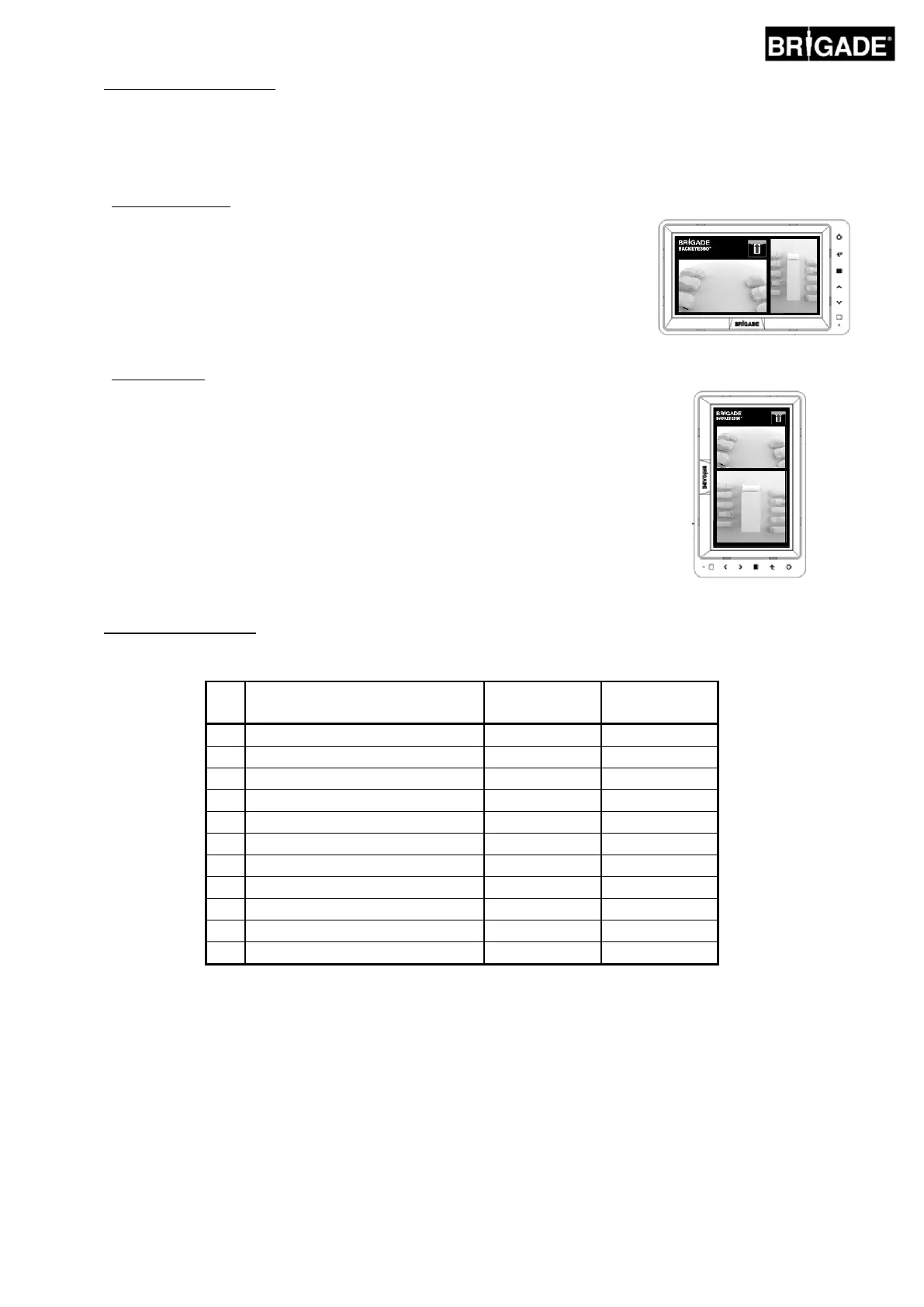

2.3 Display Configurations
The BN360-300 system can be installed in either Landscape or Portrait Display Mode depending on the users
preference. The desired monitor orientation/layout will determine which View Configuration is used when installing the
system. The BN360-300 system compatible with Brigades monitor range and customer monitors that are compatible
with CVBS or AHD 1.0.
2.3.1 Lansdcape Mode
For Landscape Mode, the monitor is installed in landscape orientation. The system
can display the 360° surround view image next to a single camera image view or a
full screen single camera view. The default view and triggered views can be
assigned in the Backeye 360 HD Configuration Tool.
2.3.2 Portrait Mode
For Portrait Mode, the monitor is installed in portrait orientation. The system can
display the 360° surround view image in full screen for a larger 360° view, or it can
display the 360° surround view image above (for rear camera) or below (for
front/side camera) the single camera views. The default view and triggered views
can be assigned in the Backeye 360 HD Configuration Tool.
2.4 View Configurations
The system is capable of storing 10 different views per configuration (Landscape or Portrait):
No.
View Mode
Landscape
Portrait
1
Top + Mirrored Rear View
✓
✓
2
Top + Front View
✓
✓
3
Top + Left View
✓
✓
4
Top + Right View
✓
✓
5
Top Full
✓
6
Front Full
✓
7
Rear Full
✓
8
Left Full
✓
9
Right Full
✓
10
Front Crossing Traffic
✓
11
Rear Crossing Traffic
✓
