3 System Components

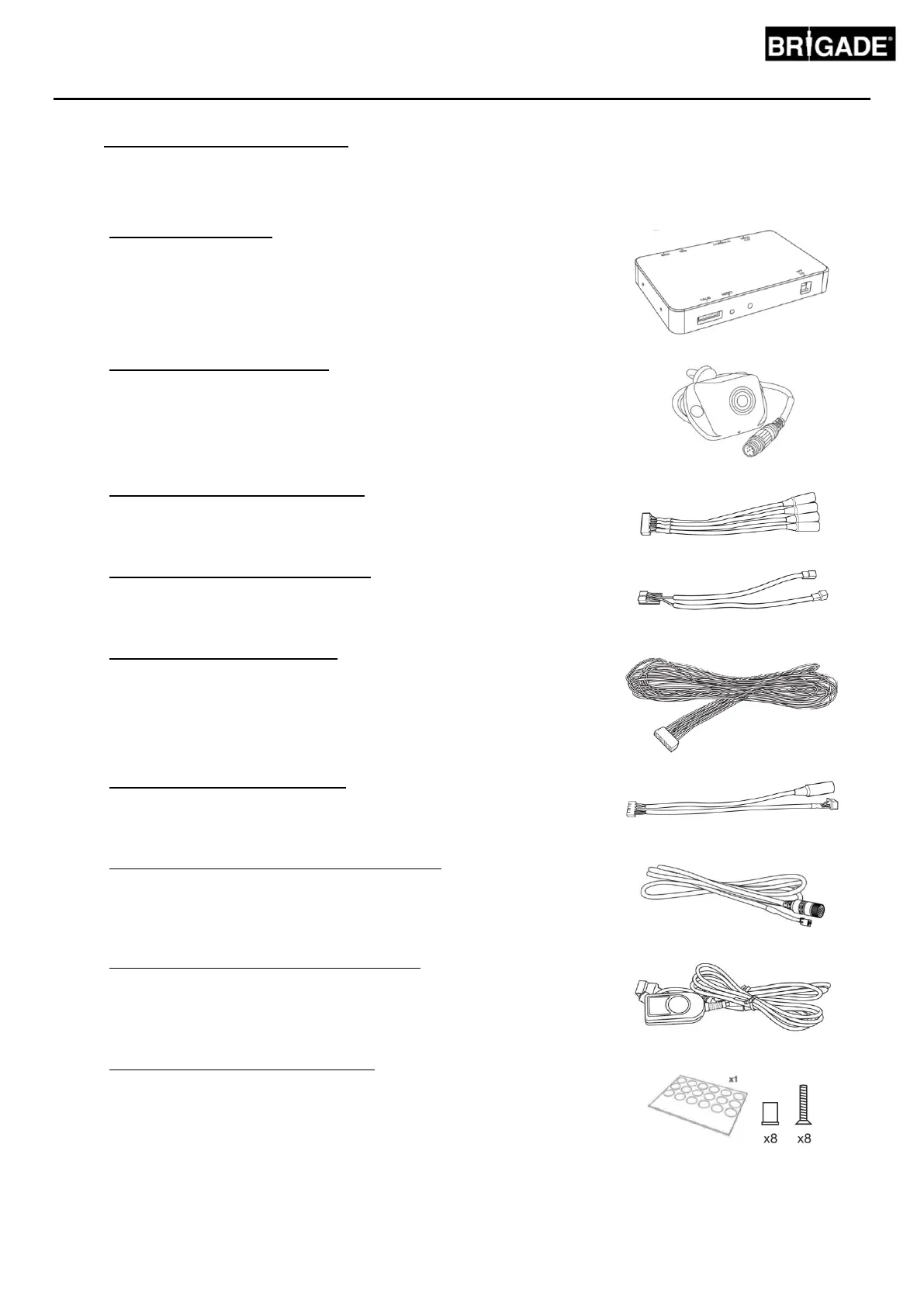

3.1 Backeye® 360° Kit - BN360-300
The following is a list of the components that are supplied with the BN360-300 system.
3.1.1 ECU - BN360-300-ECU
Interfaces between the cameras and monitor, performs the complex image
processing and contains the software for the OSD configuration menu.
3.1.2 Cameras (4 off) - BN360-1000C
Set of four ultra-wide-angled, 720P HD cameras with mounting bracket and
housing included.
3.1.3 Video input harness – BN360-VIN-01
The video input harness provides connectivity between the 4 x cameras and the
ECU
3.1.4 Video output harness – BN360-VO-01
The video output harness provides connectivity between the ECU and the
monitor (either CVBS or AHD)
3.1.5 Power harness - BN360-PWR-01
The power harness provides connectivity between the ECU and the vehicle
power source.
3.1.6 Interface harness – BN360-INT-01
The interface harness provides connectivity between the ECU and the Set-Up &
View Select Button.
3.1.7 Select Video Output Cable – BN360-VBV-L4015
The Video Output Cable provides the Main Interface Harness the ability to
connect to Brigade VBV style monitors.
3.1.8 Set-Up & View Select Button – BN360-CP-01
The Set-Up & View Select Button is used for calibration and changing the view.
The Set-Up & View Select Button does not have to be mounted for driver to use.
3.1.9 Camera Fitting Kit - BN360-1000C-FIX
The fitting kit contains all the required fixing components for fitting the cameras
to a vehicle. This consists of self-tapping screws, machine screws and nuts &
screw caps.
