7.5.2 Backsense Detection Table
The Backsense Detection Table is a floating sub window of the Graphic and Control window
which displays numerical values for all detection data of up to 8 closest objects detected by
the selected sensor.
There is no user interaction available for the Backsense Detection Table. As with the detection
grid of the Graphic and Control, the sensor with lowest base ID value is selected by default.
An example from the Detection Table is shown below:

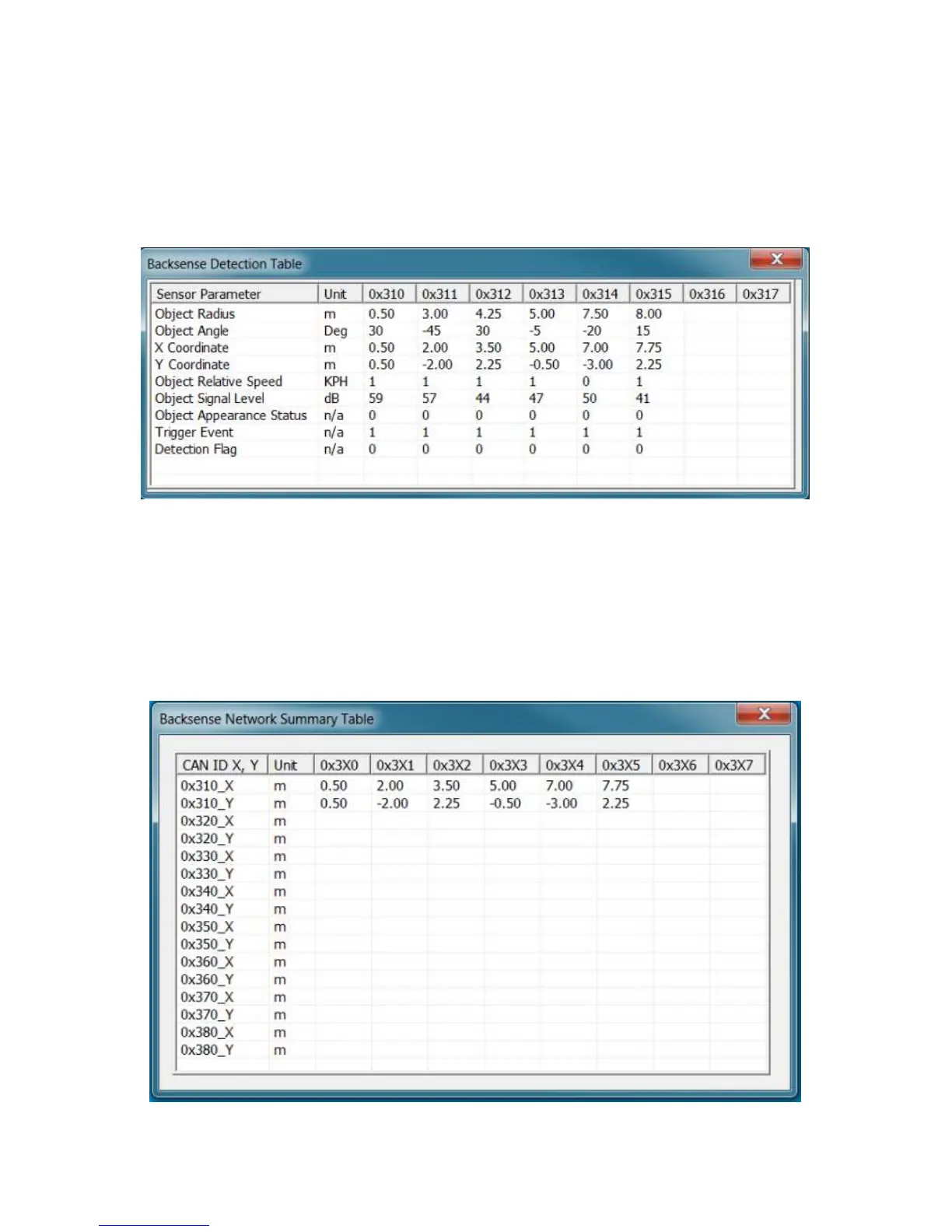

Backsense Detection Table displaying detection data for six objects from Sensor ID 0x01.
7.5.3 Backsense Network Summary Table
The Backsense Network Summary Table is a floating sub window of the graphic and control
window which displays X,Y co-ordinates for up to 8 detected objects of up to 8 connected
sensors as per the maximum capability of the system. There is no user interaction available
for the Backsense Network Summary Table. As with the detection grid of the Graphic and
Control, the sensor with lowest base ID value is selected by default. An example from the
Detection Table is shown below:
Backsense Network Summary Table displaying detection data
for six objects from Sensor ID 0x01
