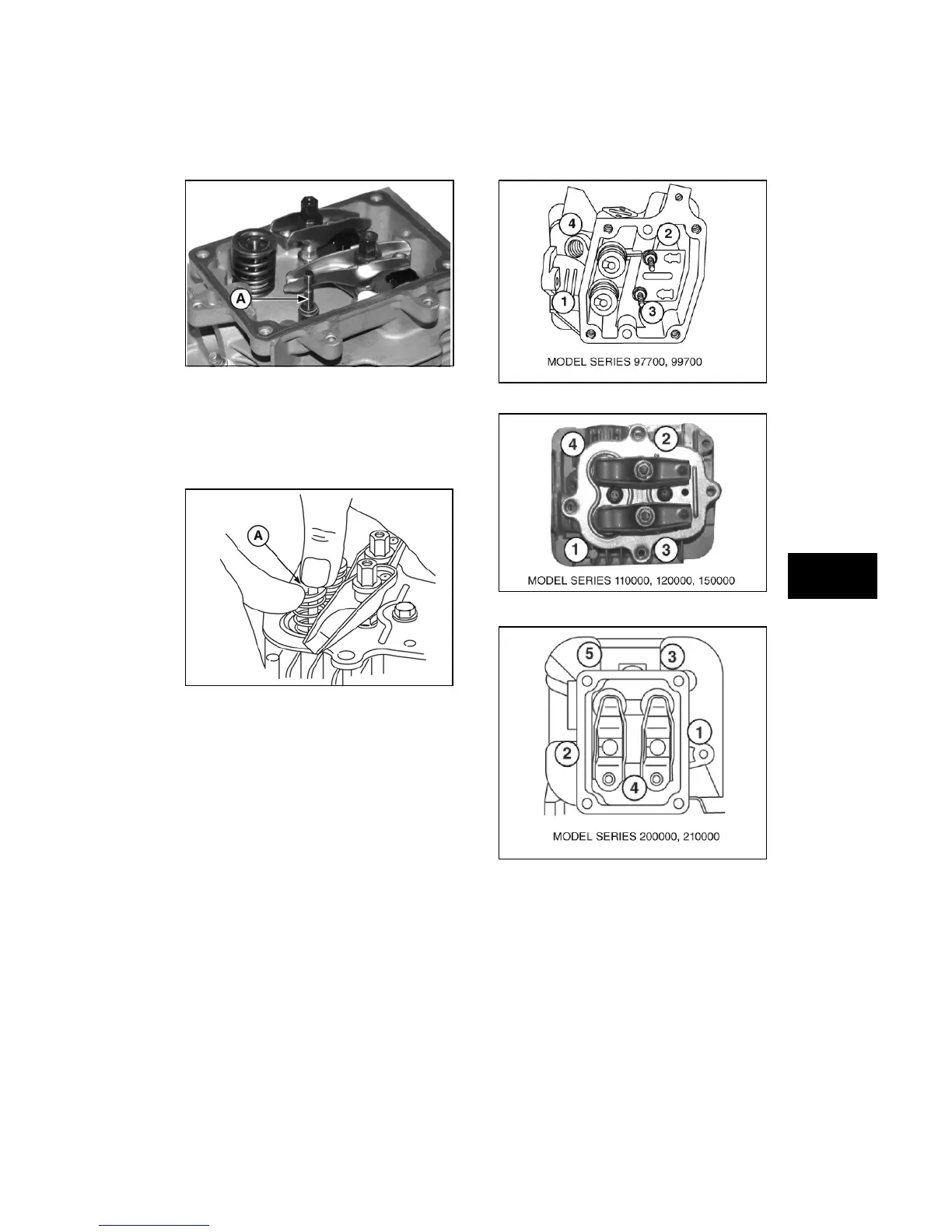

Figure 13
4. Support valve side of cylinder head on
clean shop rags. Place valve springs and
valve spring retainers over valve stems.
Using thumbs, press against each retainer
until it securely locks into groove in valve
stem (Figure 14).
Figure 14
Install Cylinder Head
1. Coat threads of all cylinder head screws
with Valve Guide Lubricant #93963.
2. Using a new head gasket, install cylinder
head on cylinder and start screws by
hand. Step-torque screws in sequence
shown (Figures 15, 16, 17, 18) until final
torque value is achieved. Torque screws
to value listed in Section 12 - Engine
Specifications.
Figure 15
Figure 16
Figure 17
