CYLINDER HEADS AND VALVES
Before the cylinder head can be removed, other
external parts must be removed, such as the air
cleaner, fuel tank, oil fill tube, blower housing,
muffler, carburetor, control bracket assembly,
and intake manifold.
Remove Cylinder Head
Horizontal and Vertical Models 97700,
99700, 110000, 120000, 150000

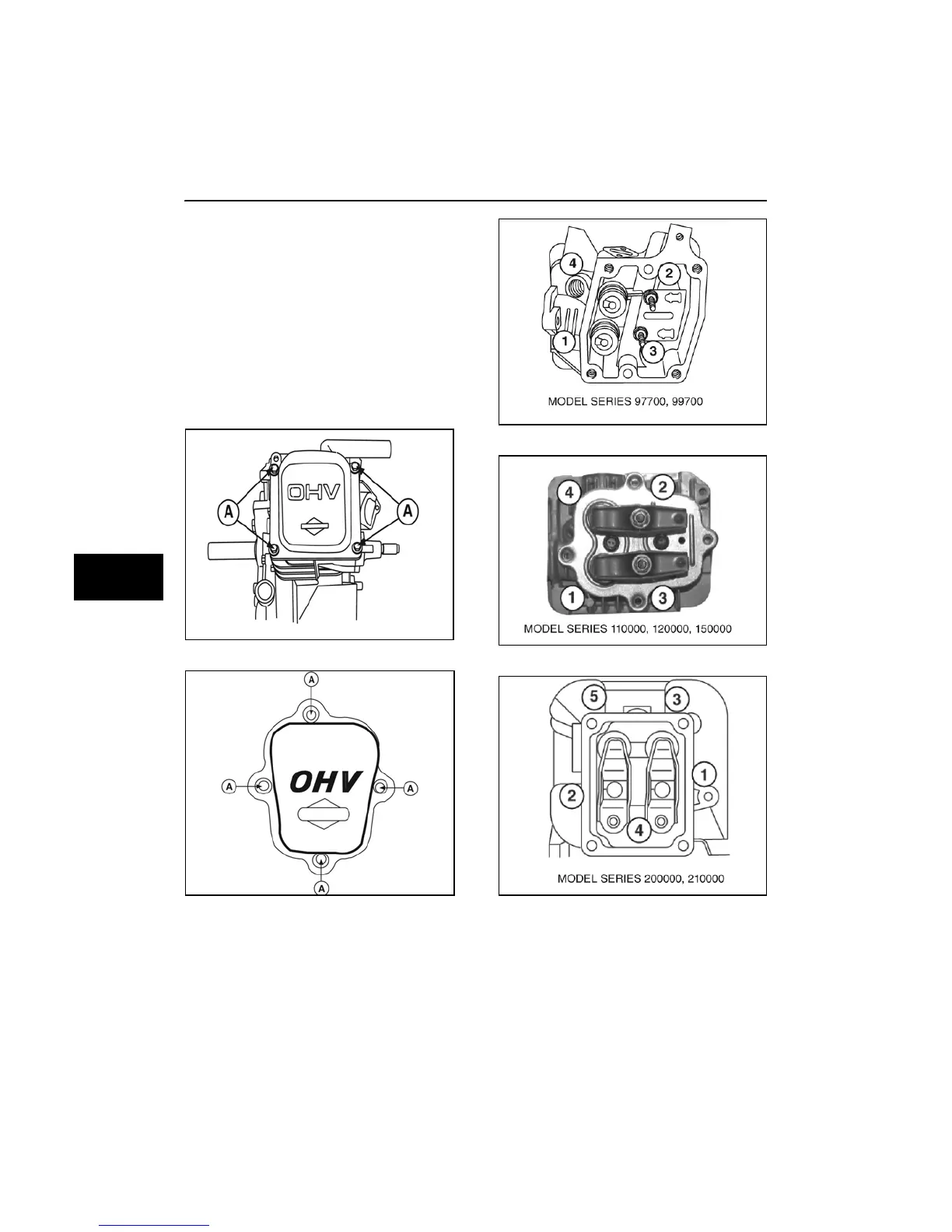

1. Remove four screws (A, Figure 1 or 2)
from rocker cover, then remove cover and
gasket.
Figure 1
Figure 2
2. Remove cylinder head screws (Figures 3,
4, 5. 6), then remove head and gasket
from cylinder.
Figure 3
Figure 4
Figure 5
