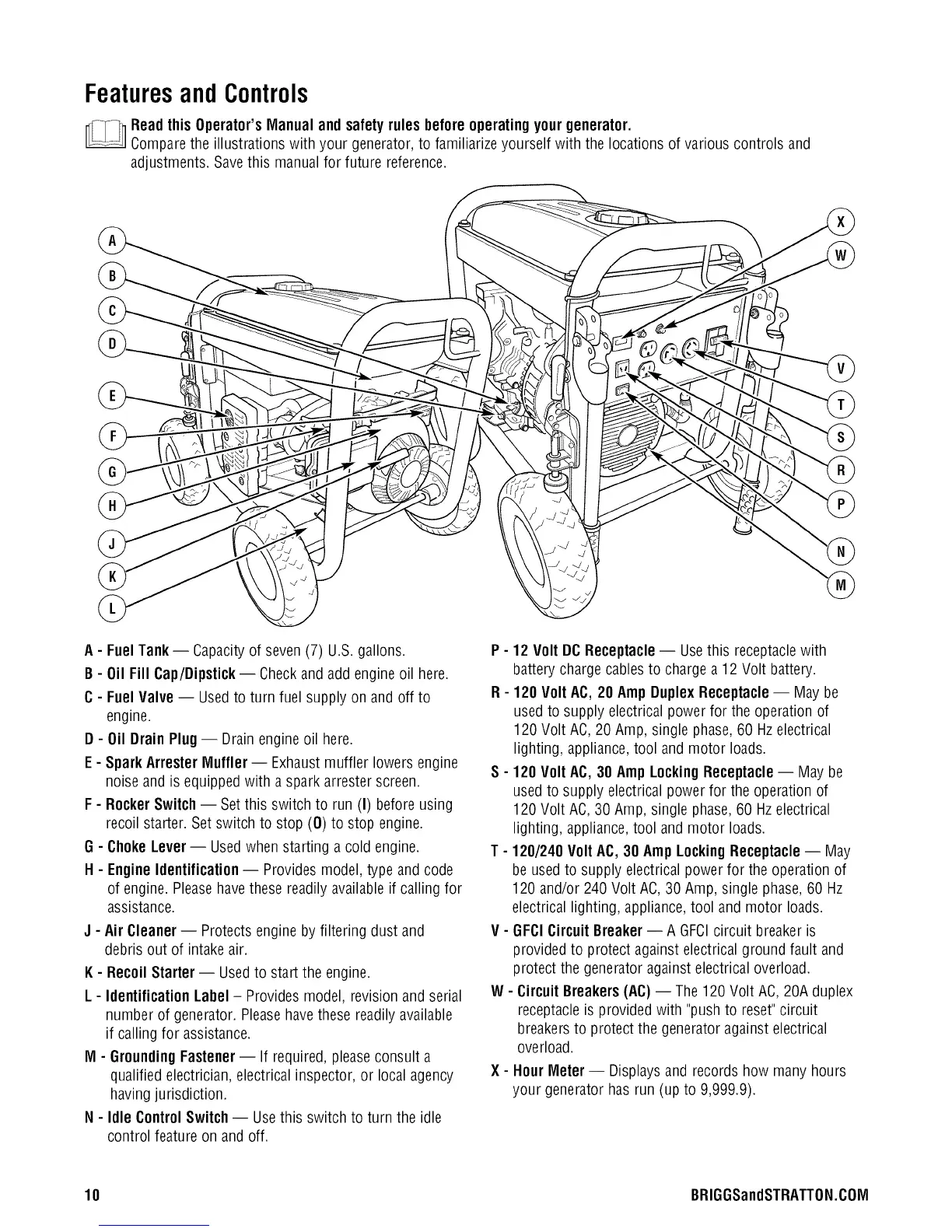

FeaturesandControls
Readthis Operator'sManual and safetyrules beforeoperatingyourgenerator.
Comparethe illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Savethis manual for future reference.
A- FuelTank -- Capacityof seven (7) U.S. gallons.
B- 0il Fill Cap/Dipstick-- Checkand add engineoil here.
C- Fuel Valve-- Usedto turn fuel supply on and off to
engine.
D - 0il DrainPlug-- Drain engine oil here.
E - SparkArresterMuffler -- Exhaustmuffler lowers engine
noise and is equipped with a spark arrester screen.
F - RockerSwitch-- Setthis switch to run (I) before using
recoil starter. Setswitch to stop (0) to stop engine.
G - ChokeLever- Usedwhen starting a cold engine.
H - EngineIdentification-- Provides model, type and code
of engine. Pleasehavethese readily available if calling for
assistance.
J - Air Cleaner-- Protects engine by filtering dust and
debris out of intake air.
K- RecoilStarter-- Usedto start the engine.
L - IdentificationLabel - Provides model, revision and serial
number of generator. Pleasehave these readily available
if calling for assistance.
M - GroundingFastener-- If required, pleaseconsult a
qualified electrician, electrical inspector, or local agency
havingjurisdiction.
N - Idle ControlSwitch-- Use this switch to turn the idle
control feature on and off.
P - 12 Volt DC Receptacle-- Usethis receptaclewith
batterycharge cablesto chargea 12 Volt battery.
R - 120 Volt AC, 20 Amp DuplexReceptacle-- May be
usedto supply electrical power for the operation of
120 Volt AC,20 Amp, single phase,60 Hz electrical
lighting, appliance,tool and motor loads.
S - 120 Volt AC,30 AmpLockingReceptacle-- May be
usedto supply electrical power for the operation of
120 Volt AC, 30 Amp, single phase, 60 Hzelectrical
lighting, appliance,tool and motor loads.
T - 120/240 Volt AC,30 AmpLockingReceptacle-- May
be used to supply electrical power for the operation of
120 and/or 240 Volt AC,30 Amp, single phase,60 Hz
electrical lighting, appliance,tool and motor loads.
V - GFClCircuitBreaker-- A GFCIcircuit breaker is
providedto protect against electrical ground fault and
protect the generatoragainst electrical overload.
W - CircuitBreakers(AC}-- The 120 Volt AC,20A duplex
receptacleis provided with "pushto reset" circuit
breakersto protect the generator against electrical
overload.
X - HourMeter -- Displays and records how many hours
your generator has run (up to 9,999.9).
10 BRIGGSandSTRATTON.COM
