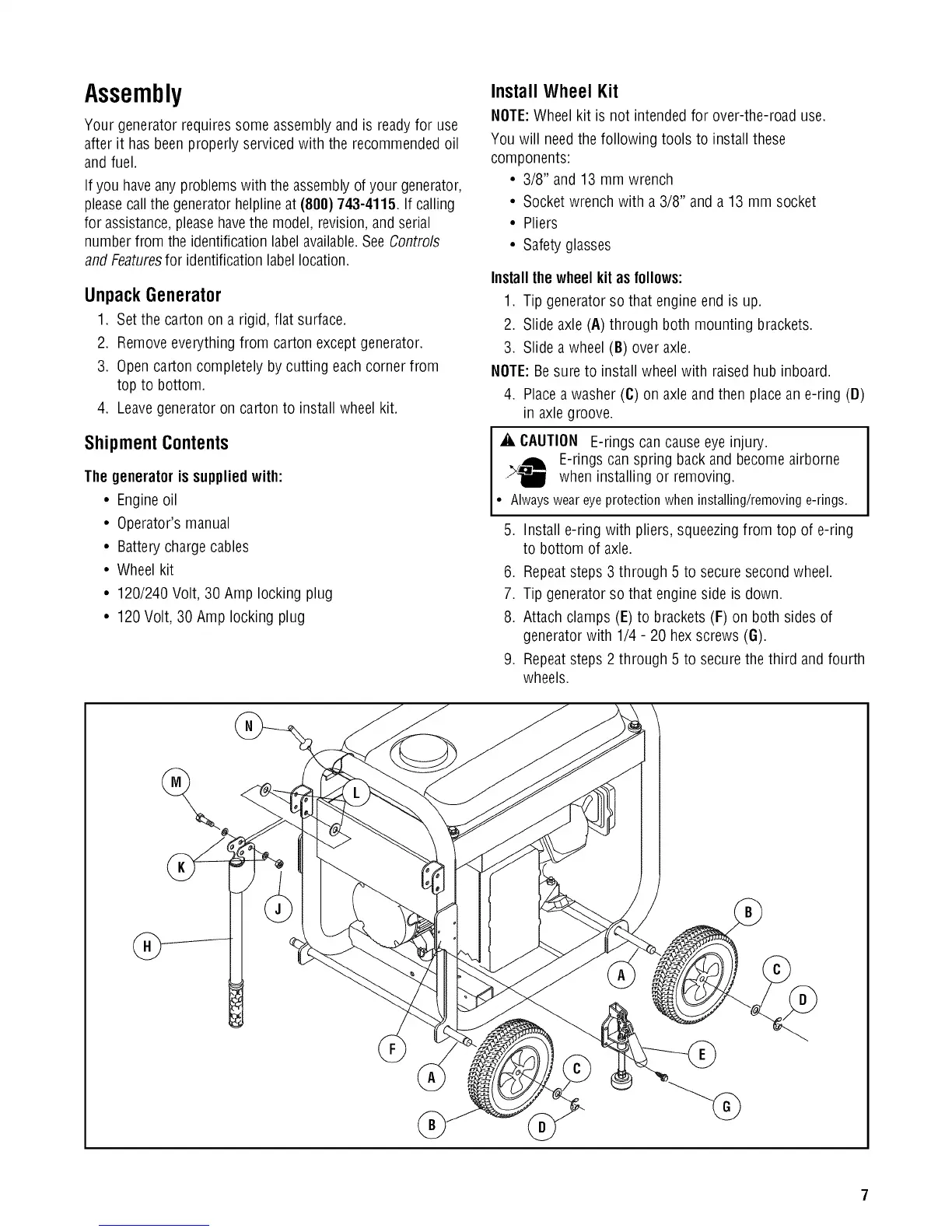

Assembly
Your generator requiressome assembly and is ready for use
after it hasbeen properly servicedwith the recommended oil
and fuel.
If you haveany problemswith the assemblyof your generator,
pleasecallthe generator helplineat (800) 743-4115. If calling
for assistance,pleasehavethe model, revision, and serial
numberfrom the identificationlabel available.SeeControls
and Featuresfor identificationlabel location.
UnpackGenerator
1. Set the carton on a rigid, flat surface.
2. Remove everything from carton exceptgenerator.
3. Opencarton completely by cutting each corner from
top to bottom.
4. Leave generatoron carton to install wheel kit.
Shipment Contents
The generatoris suppliedwith:
• Engineoil
• Operator's manual
• Battery charge cables
• Wheel kit
• 120/240 Volt, 30 Amp locking plug
• 120 Volt, 30 Amp locking plug
Install Wheel Kit
NOTE:Wheel kit is not intended for over-the-road use.
You will needthe following tools to install these
components:
• 3/8" and 13 mm wrench
• Socket wrench with a 3/8" and a 13 mm socket
• Pliers
• Safety glasses
Installthe wheelkit asfollows:
1. Tip generator so that engine end is up.
2. Slide axle (A) through both mounting brackets.
3. Slide a wheel (B) over axle.
NOTE:Besure to install wheelwith raised hub inboard.
4. Place a washer (C) on axle and then place an e-ring (D)
in axlegroove.
_i, CAUTION E-rings can causeeye injury.
E-rings can spring back and become airborne
when installing or removing.
• Alwaysweareyeprotectionwheninstalling/removinge-rings.
5. Install e-ring with pliers, squeezingfrom top of e-ring
to bottom of axle.
6. Repeatsteps 3 through 5 to secure secondwheel.
7. Tip generator so that engine side is down.
8. Attach clamps (E) to brackets (F) on both sides of
generatorwith 1/4 - 20 hex screws (G).
9. Repeatsteps 2 through 5 to securethe third and fourth
wheels.
To Next Page
