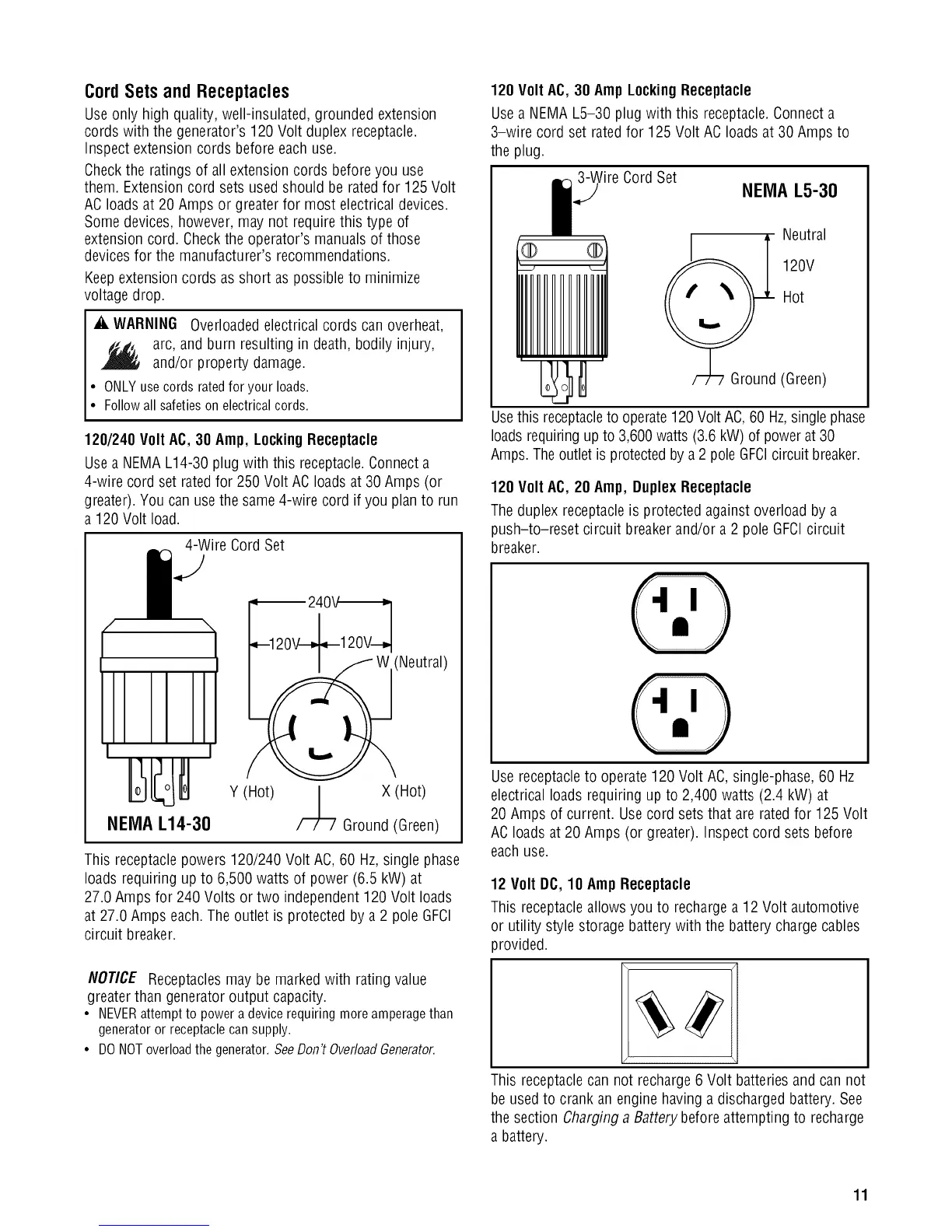

CordSetsandReceptacles
Use only high quality, well-insulated, grounded extension
cords with the generator's 120 Volt duplex receptacle.
Inspect extensioncords before eachuse.
Checkthe ratings of all extensioncords beforeyou use
them. Extensioncord sets usedshould be rated for 125 Volt
ACloads at 20 Amps or greater for most electrical devices.
Somedevices, however, may not require this type of
extension cord. Checkthe operator's manuals of those
devicesfor the manufacturer's recommendations.
Keepextension cords asshort aspossible to minimize
voltage drop.
_i, WARNING Overloadedelectrical cords can overheat,
arc, and burn resulting in death, bodily injury,
and/or property damage.
• ONLYusecordsratedfor your loads.
• Followallsafetiesonelectricalcords.
120/240 Volt AC,30 Amp, LockingReceptacle
Use a NEIVIAL14-30 plug with this receptacle.Connecta
4-wire cord set rated for 250 Volt AC loadsat 30 Amps (or
greater). You can use the same4-wire cord if you planto run
a 120 Volt load.
4-Wire Cord Set
(Neutral)
Y(Hot) | X(Hot)
NEMA L14-30 /-71-7 Ground (Green)
This receptaclepowers 120/240 Volt AC, 60 Hz,single phase
loads requiring up to 6,500 watts of power (6.5 kW) at
27.0 Amps for 240 Volts or two independent 120 Volt loads
at 27.0 Amps each. The outlet is protected by a 2 pole GFCI
circuit breaker.
NOTICE Receptacles may be marked with rating value
greater than generator output capacity.
• NEVERattempt to power a device requiring more amperagethan
generator or receptaclecan supply.
• DONOToverloadthe generator. SeeDon't OverloadGenerator.
120 Volt AC, 30 Amp LockingReceptacle
Usea NEIVIAL5-30 plug with this receptacle.Connecta
3-wire cord set rated for 125 Volt ACloads at 30 Amps to
the plug.
® ®
II11111111111
_'ireCord Set
NEMA L5-30
Neutral
120V
Hot
(Green)
Usethis receptacleto operate120 Volt AC,60 Hz,singlephase
loadsrequiring up to 3,600watts (3.6 kW) of power at 30
Amps.The outlet is protectedby a 2 pole GFCIcircuit breaker.
120 Volt AC, 20 Amp, DuplexReceptacle
Theduplex receptacle is protected against overload by a
push-to-reset circuit breaker and/or a 2 pole GFCIcircuit
breaker.
Usereceptacleto operate120 Volt AC, single-phase, 60 Hz
electrical loads requiring up to 2,400 watts (2.4 kW) at
20 Amps of current. Usecord sets that are ratedfor 125 Volt
ACloads at 20 Amps (or greater). Inspect cord sets before
eachuse.
12 Volt DC,10 AmpReceptacle
This receptacleallows you to recharge a 12 Volt automotive
or utility style storage battery with the battery charge cables
_rovided.
This receptaclecan not recharge6 Volt batteries and can not
be used to crank an engine having a discharged battery. See
the section Charging a Battery before attempting to recharge
a battery.
11
