Briggs & Stratton Standby Generator Systems - Control Panel Operations; Control Panel Button Functions; Programming Mode Sequences

Not for
Reproduction
27
The following chart describes key sequences for accessing different programming modes;
Menu

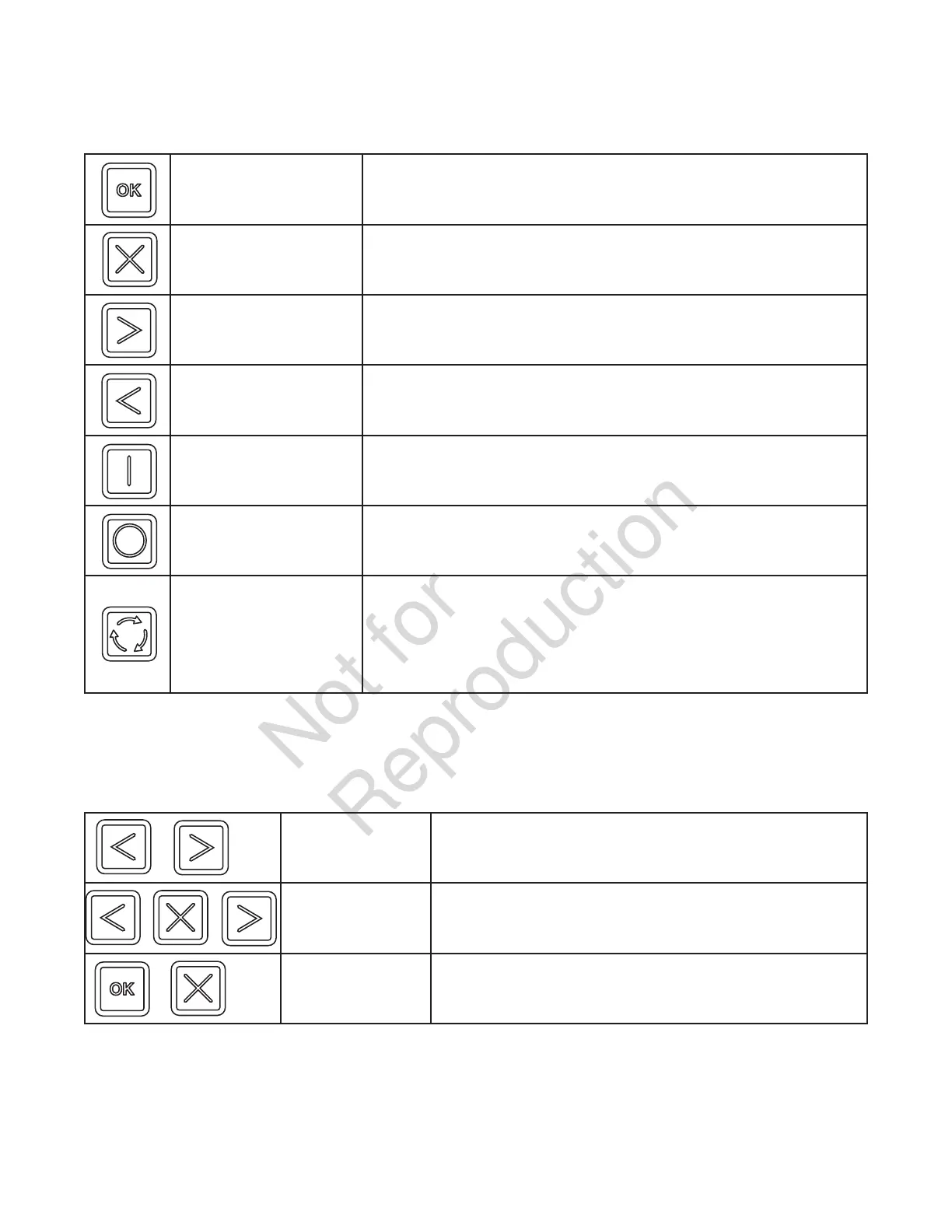

The following chart shows the icons for the buttons that control the system control panel.
MENU
ENTER THE MENU (VIEW SETTINGS)
PRESS TO CONFIRM SELECTION WHEN PROGRAMMING.
ESCAPE (EXIT) RETURN TO LAST MENU ITEM
RIGHT ARROW
TOGGLE THROUGH MENU OPTIONS
SETTING SYSTEM PARAMETERS
LEFT ARROW
TOGGLE THROUGH MENU OPTIONS
SETTING SYSTEM PARAMETERS
MANUAL MODE
USED TO MANUALLY START THE GENERATOR. PRESS AND HOLD BUTTON
TO START THE GENERATOR.
OFF
TURNS OFF RUNNING GENERATOR, PREVENTS UNIT FROM STARTING, AND
RESETS ANY DETECTED FAULTS.
AUTOMATIC MODE
NORMAL OPERATING POSITION. PRESS AND HOLD BUTTON TO PLACE UNIT
INTO AUTOMATIC MODE. IF A UTILITY POWER OUTAGE IS SENSED, THE
SYSTEM WILL START THE GENERATOR. WHEN UTILITY POWER IS
RESTORED, AUTO LETS THE ENGINE STABILIZE INTERNAL TEMPERATURES,
SHUTS OFF THE GENERATOR, AND WAITS FOR THE NEXT UTILITY POWER
OUTAGE.
GENERAL
SET-UP
PRESS AND HOLD [ARROW LEFT AND ARROW RIGHT] FOR THREE
SECONDS TO ENTER THE PROGRAM MODE.
ADVANCED
SETTINGS
PRESS AND HOLD [ARROW LEFT, ARROW RIGHT AND ESC] FOR
THREE SECONDS TO ENTER THE ADVANCED SETTINGS MODE.
WIRELESS
LINK MODE
PRESS AND HOLD [MENU AND ESC] FOR THREE SECONDS TO
ENTER THE WIRELESS LINKING MODE.
