Control Panel Prompts
Automatic Mode
In Automatic Mode, the display screen will display via scrolling
text:
• GENERATOR READY - if the unit is in standby and utility
power is present.
• GENERATOR ON - if the unit is running and utility power is
not present.
• SERVICE CODE - if a system fault has been detected.
General System Parameters
To view general system parameters, press the MENU button.
The following will scroll across the digital display and then move
to the next item:
• Run time
• Date
• Time
• Exercise Cycle date and start time
The user can press the LEFT ARROW or RIGHT ARROW at any
time to move to the next item.
The user can press ESCAPE to go back to GENERATOR READY.
If no user inputs are made for 10 seconds after all the items have
been displayed, the control board will reset to
GENERATOR READY.

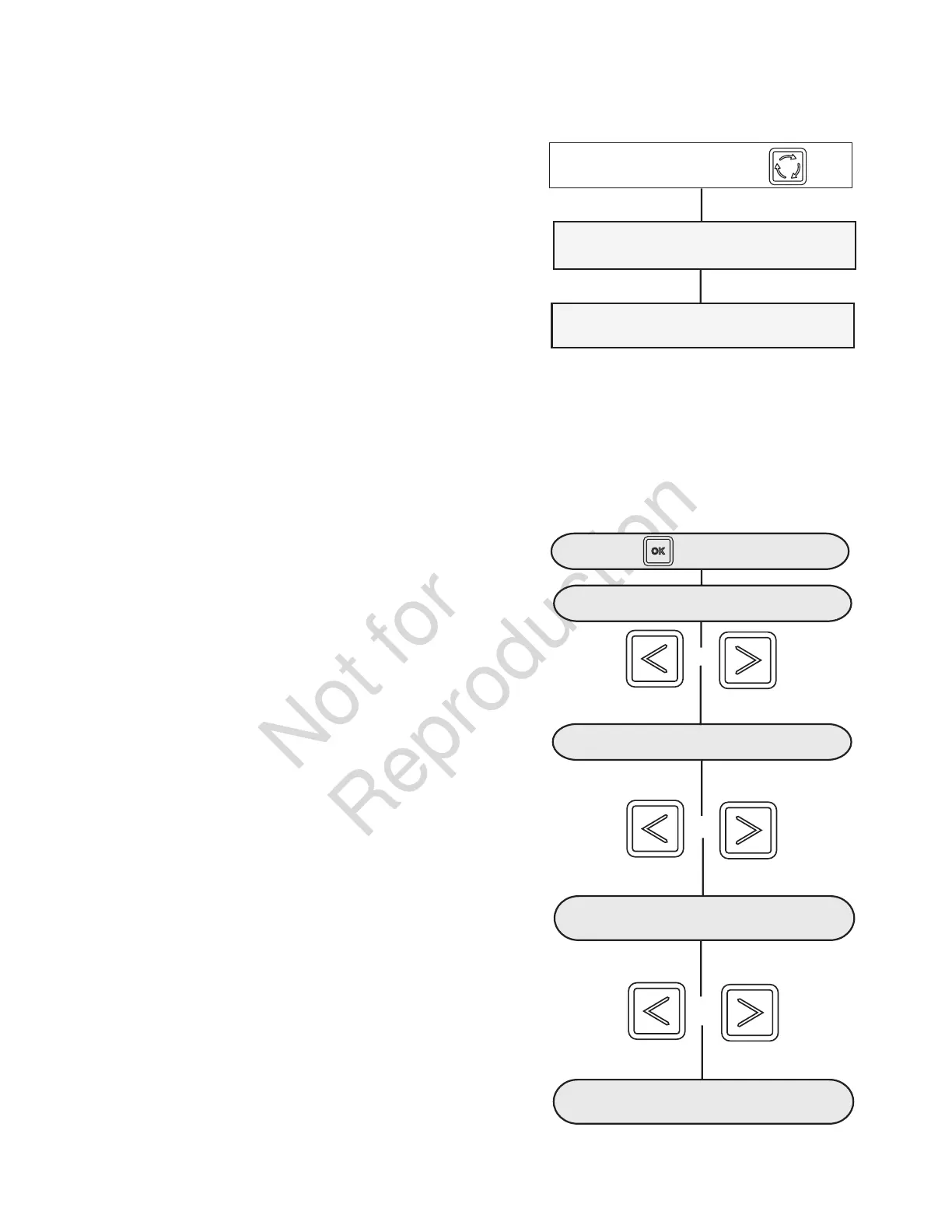

AUTOMATIC MODE
GENERATOR READY OR SERVICE CODE DESCRIPTION
(When Generator NOT Running - Auto Mode)
GENERATOR ON
(When Generator Running - Auto Mode)
(MENU)
RUN TIME
or
or
or
TIME
DATE
EXERCISE CYCLE
