5
Components
Read entire operator’s manual before you attempt to assemble or operate your new water pump.

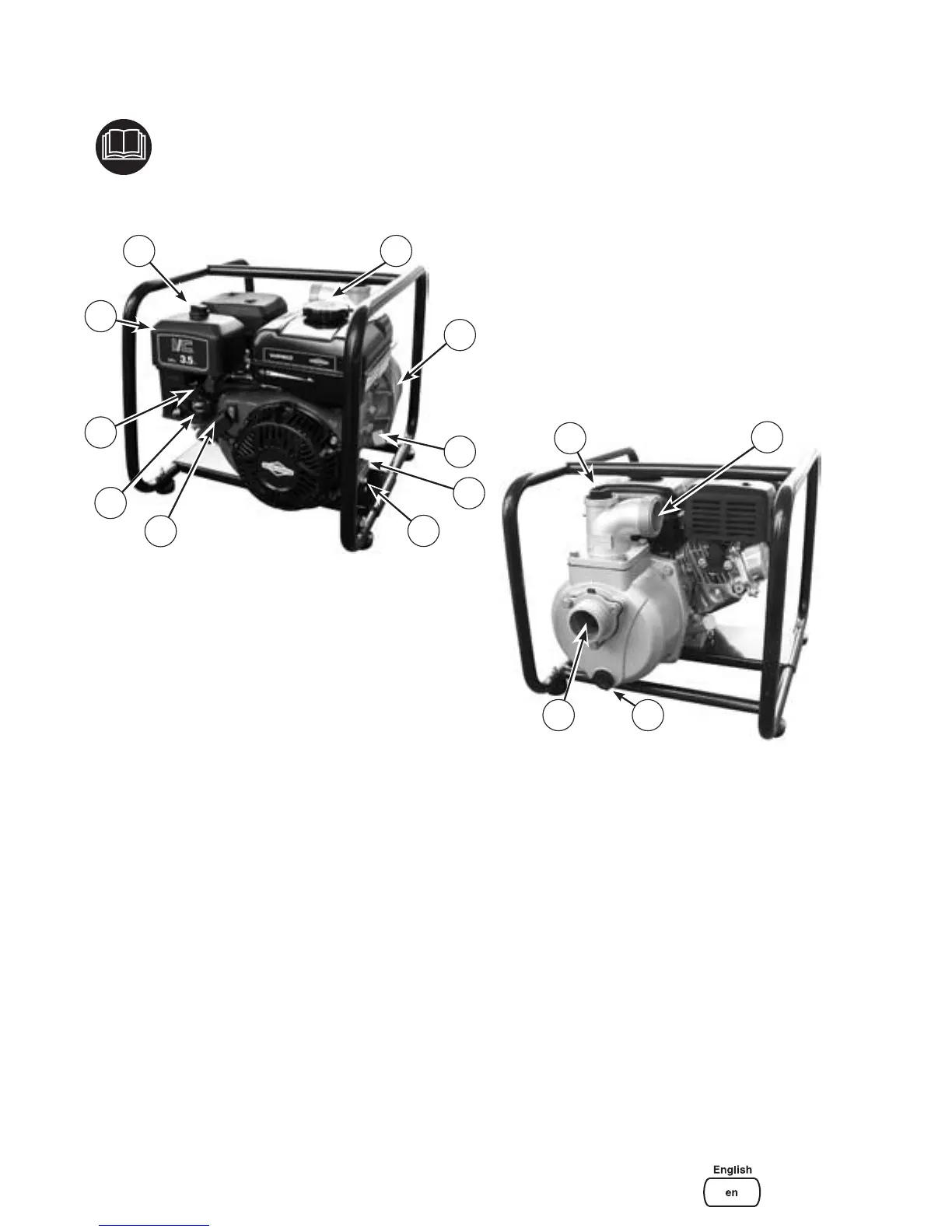

Compare the illustrations with your water pump, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - Priming Plug — Fill pump with water here to prime pump
before starting.
B - Discharge Outlet — Connect discharge hose here.
C - Suction Inlet — Connect reinforced suction hose here.
D - Water Drain Plug — Remove to drain water from pump
and to flush internal components with clean water.
E - Spark Plug — Always disconnect spark plug wire when
servicing water pump.
F - Engine Information — Provides model, type and code
number of engine.
G - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
H - Recoil Starter — Used for manually starting the engine.
J - ID Label — Provides model and serial number of
water pump.
K - Engine Controls — Used for starting, stopping, and
setting engine speed.
L - Fuel Tank — Fill tank with regular unleaded fuel here.
Always leave room for fuel expansion.
M - Oil Drain — Drain engine oil here.
N - Oil Fill — Check and add engine oil here.
O - Fuel Valve — Used to turn fuel supply on and off to
engine.
A
B
C
D
E
G
M
K
H
L
J
N
F
O
