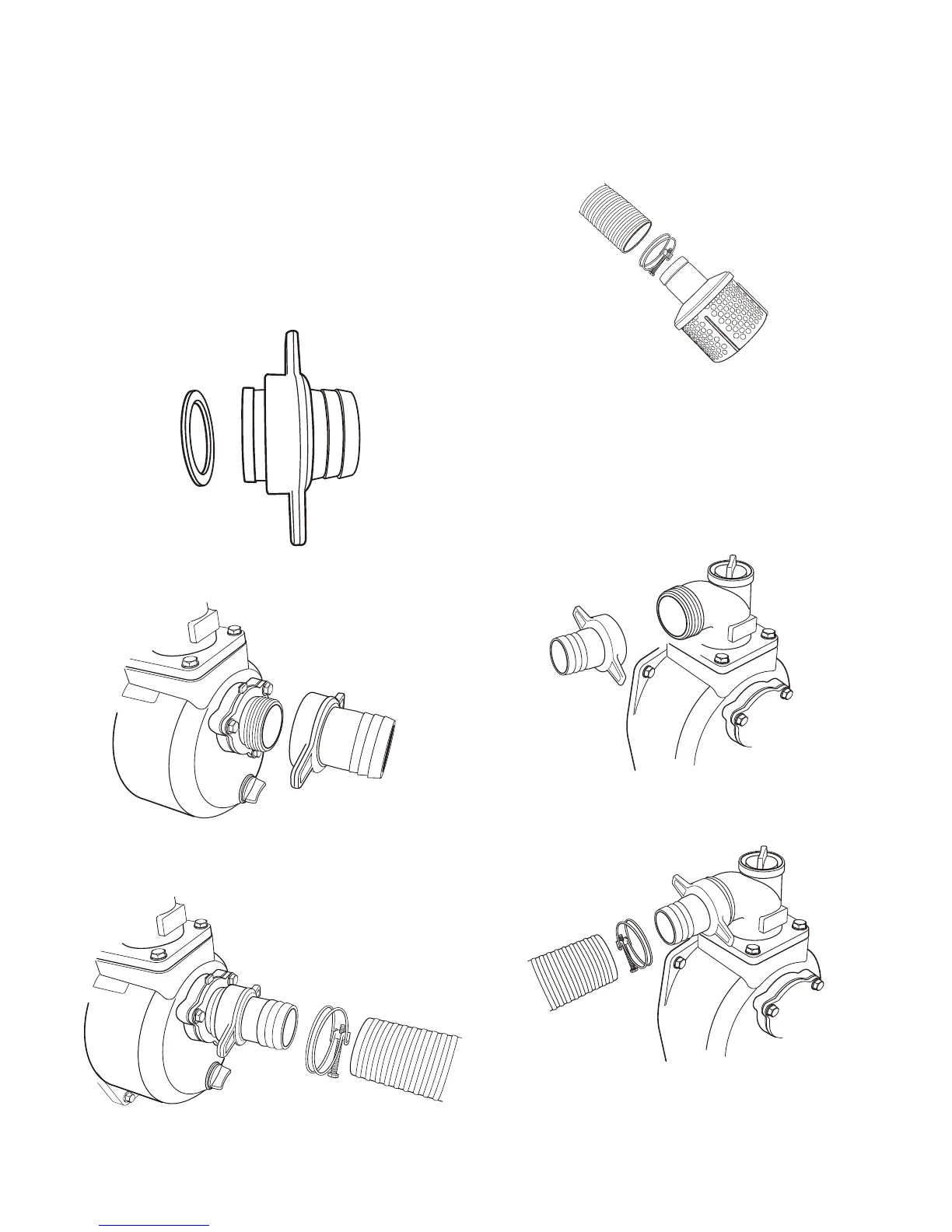

Assemble and Attach Hoses
You will need the following tool to install the hoses to the
waterpump:
 • 6mmor1/4”standardscrewdriver
Connect Suction Hose to Pump
Use a commercially available hose. The suction hose must
be reinforced with a non-collapsible wall or braided material.
DO NOT use a hose with an inside diameter smaller than the
pumps suction port size.
1. Slide barb cuff over hose barb. Insert rubber seal into
end of barb cuff.
2. Screw hose barb assembly onto pump in clockwise
rotation until hose barb assembly is tightened securely.
3. Slide hose clamp over end of hose. Slide suction hose
onto hose barb. Tighten hose clamp securely using a
standard 6mm (1/4”) screwdriver.
Attach Suction Hose to Strainer Basket
Slide hose clamp over hose. Attach open end of suction
hose to strainer hose barb. Tighten hose clamp securely
using a standard 6mm (1/4” ) screwdriver.
Connect Discharge Hose (Optional)
If desired, use a commercially available hose. DO NOT use
a hose with an inside diameter smaller than the pump’s
discharge port size.
1. Slide barb cuff over hose barb. Insert rubber seal into
end of barb cuff.
2. Screw hose barb assembly onto pump in clockwise
rotation until hose barb assembly is tightened securely.
3. Slide hose clamp over end of discharge hose. Slide
discharge hose onto hose barb. Tighten hose clamp
securely using a standard 6mm (1/4”) screwdriver.
