Brillcam BVR-3808PS - BVR-3504 PS Model Interfaces

Brillcam Inc. Copyright 2020-2021 Page 8 , Total 83
1
100~240 VAC Power Supply
6
VGA Interface (DB9 Connector)
2
AUDDIO IN
7
USB 3.0 Interface
3
HDMI Interface
8
GND
4
LAN Network Interface
9
Power switch
5
Audio Output
10
Network interfaces with PoE function
(8 interfaces for BVR-3808PS, 16 interfaces for
BVR-3816PD)

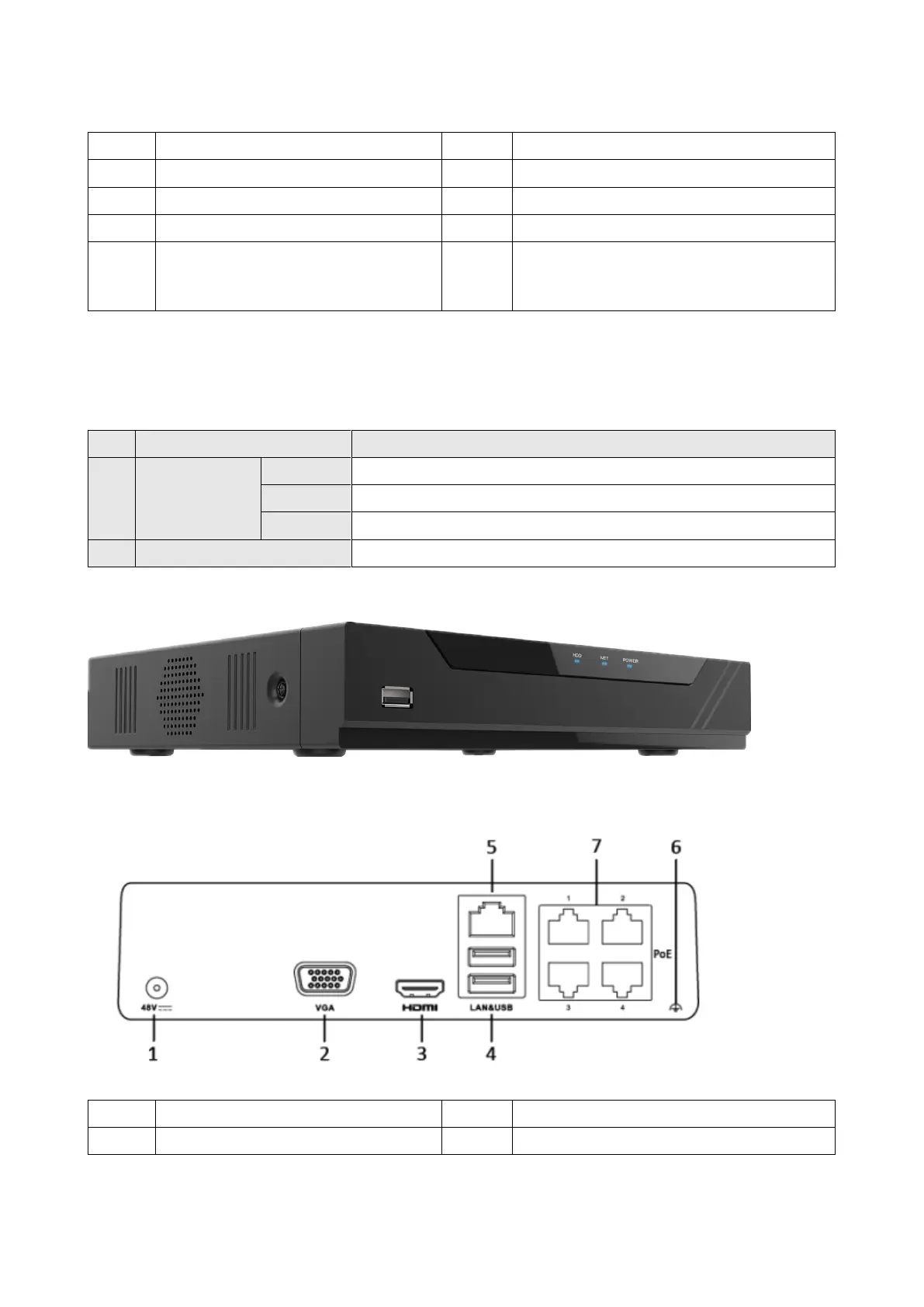

BVR-3504PS:
Front Panel
No.
Name
Description
1
Status Indicator
Power
Power indicator turns green when system is running.
HDD
Status indicator blinks red when data is being read from or written to HDD.
Network
Network indictor blinks green when network connection is functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB mouse.
Backend Panel
Index
Description
Index
Description
1
Power Supply
5
LAN Interface
