MPPT SOLAR CHARGE
CONTROLLER
Your Brinkley RV is equipped with a 370W solar
panel and is prepped for the addition of a second
370W solar panel. The roof is supplied with
additional backer to permit installation of the
second panel. For wiring, please refer to
Section 18C
. Please consult your Dealer or
contact Brinkley Customer Care for the backer

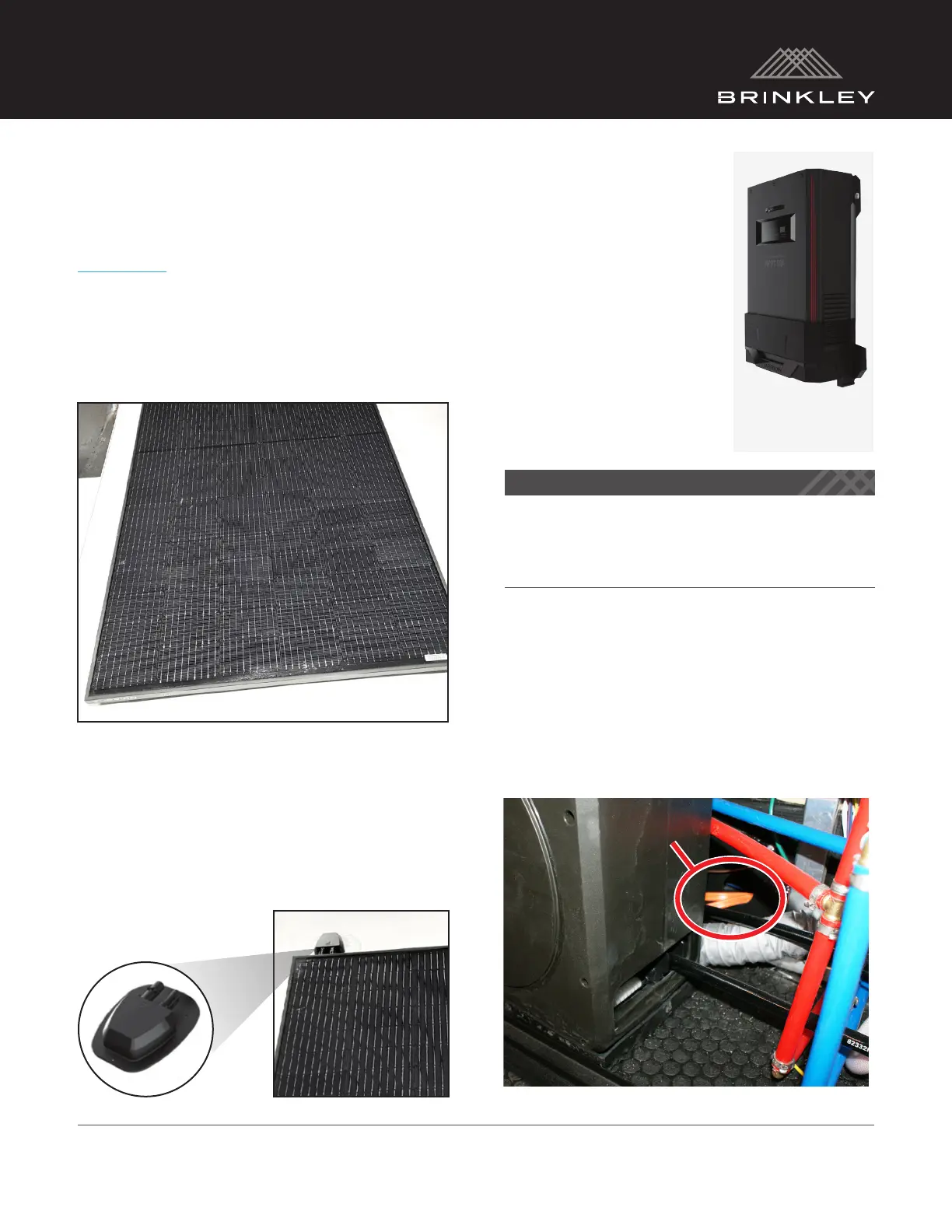

locations. Shown above is a picture of the standard
370W solar panel equipped on the roof of your
Brinkley RV (location may vary by floorplan).
1. Solar Docking Port
The solar docking port inlet mounts directly on
the roof of the RV and accepts the plug from the
solar panel battery charger which enables you to
charge your RVs 12V battery safely and quickly.
The picture below left is a close-up view of the
Solar Docking Port. The below right photo
highlights the location of the Solar Docking
Port relative to the
solar panel.
2. Solar Power
Charging System
Prior to utilizing or installing
a second solar panel, please
read and understand the
instructions and warnings
within the manufacturer’s
manual for the 50 Amp MPPT
Solar Charge Controller and
Solar Panel. This information
can be found in your Owner’s
Information Package.
+ NOTICE
All safety alerts, warnings, and instructions
should be followed when installing and/or
using any Solar Power.
3. Inverter Prep
Your Brinkley Z Air RV is pre-wired (prepped) for
aftermarket installation of a 3,000-watt inverter
(Customer Supplied). Below is a picture of the
front compartment. Remove the access panel.
Locate the two (2) orange 120 VAC wires coming
up through the floor behind the hose reel (shown
below). These are your invertor prep wires.
HOSE REEL
INVERTOR PREP
