g. Check that all wire connections are firmly in
place and there are no signs of chafing or
cracks on the insulation. Verify that the spark
ignition cable between the Control Board
and the igniter is securely in place and not
shorted to any metal component.
h. Inspect the pressure safety valve to ensure
it has not been leaking (no water residue).
See “Pressure Safety Valve Maintenance”
for further inspection. (
Fig. 32
)
i. Inspect/clean/replace water inlet filter as
necessary, see “Filter Cleaning” section.
j. Turn on the power to the water heater
and open a hot water faucet to inspect the
flame of the burner. The flame should be
of the normal bluish appearance that
indicates proper combustion. This can be
accomplished by removing the water heater
door and bae to observe the flames by
looking at the burner under the edge of the
heat exchanger (
Fig. 33
)
k. A sealing ring is assembled on the chimney.
(
Fig. 34
) Inspect to make sure the seal does
not have any cracks or breaks, and that it is
in good condition. Contact Furrion
for replacement.
+ NOTICE
When installing the seal, make sure
the words “INSIDE” are facing inward.
WARNING
BURN OR SCALD HAZARD:
• NEVER drain the hot water heater
while hot.
• NEVER perform work on the water
heater while it is operating.
• NEVER perform work unless the
Electrical and LP gas supply is shut o.
• NEVER perform work while the
appliance is hot.
• NEVER actuate the pressure relief
valve if the appliance is still hot.
• Never actuate the drain plug if the appliance
is under water pressure and/or is still hot.

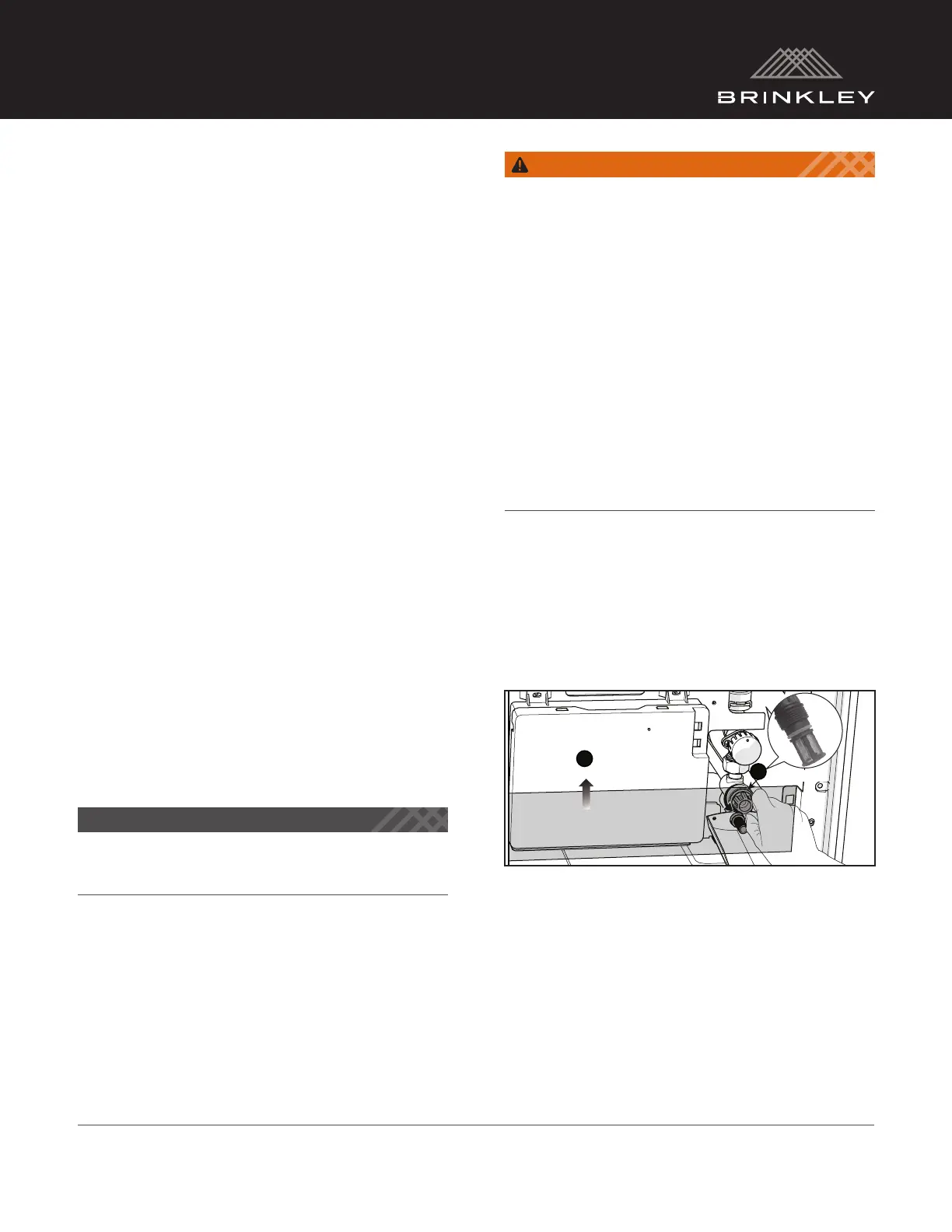

8. Filter Cleaning
There is a filter screen on the Water Heater inlet
water line connection. The filter screen needs to
be cleaned periodically to prevent blockages from
forming. Follow below steps below to clean the
filter: (
Fig. 35
)
a. Open the door of the water heater and
remove the bae.
b. Unscrew the filter cover by hand or with a
proper tool counterclockwise.
c. Clean the screen filter by flushing any debris
accumulated.
1
2
Bae
Filter Cover
Pressure safety
valve handle (Red)
1
2
Draining
Hose
Drain plug cover
Bae
FIG. 35
To Next Page
