SEC.14 PLUMBING SYSTEMS

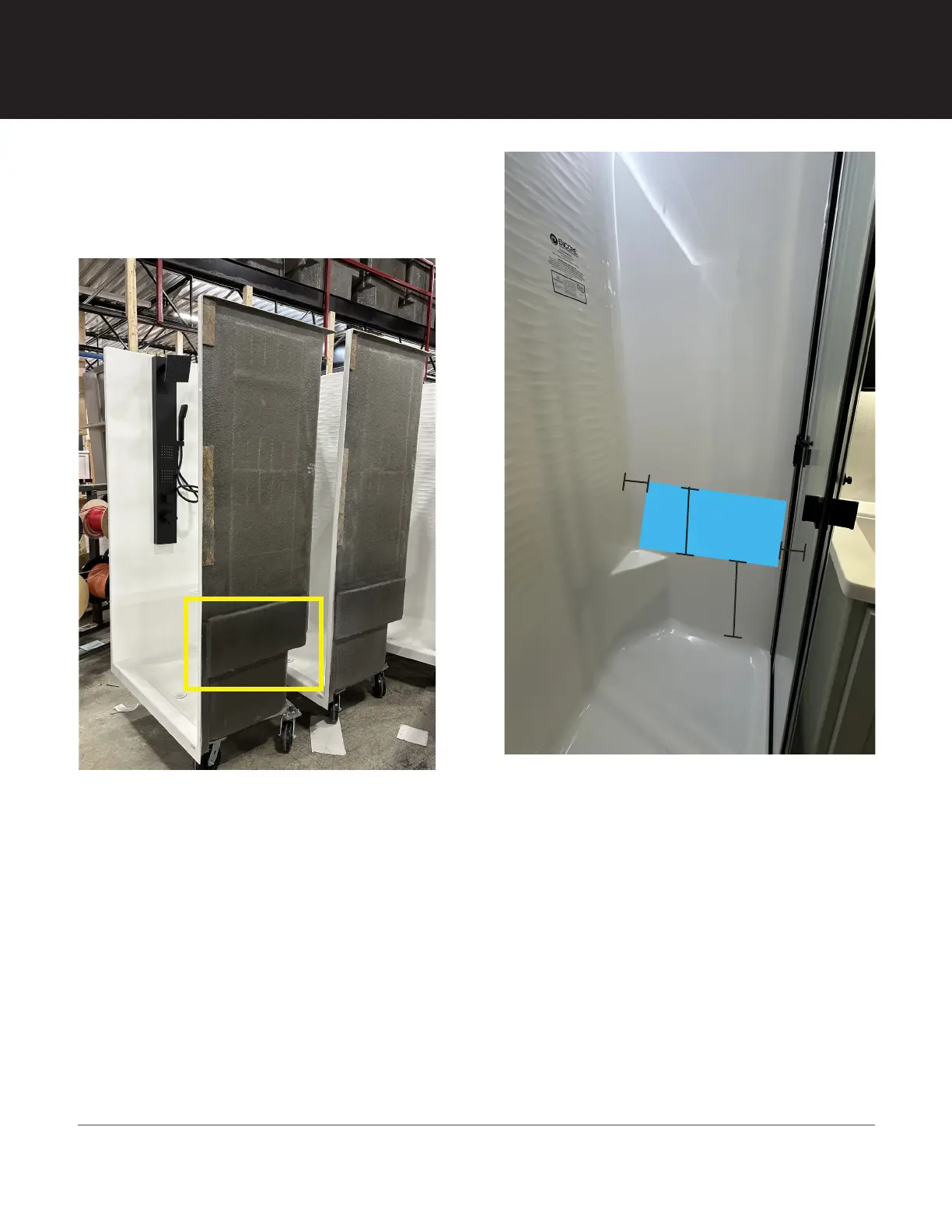

4. Your Model Z fiberglass shower has a backer
for a customer supplied shower seat. Should
you choose to install a customer supplied
showers seat the backer information is below.
The backer is located on the right exterior wall
(opposite of the shower head) of the shower. It is
moulded into the outside of the fiberglass
The dimensions of the backer, shown here as a
blue rectangle, are as follows:
- Backer is 16” up from shower floor
- Backer is 9” tall
- Backer is 3” from back wall of shower
- Backer is 2” from front lip of shower
16”
9”
3”
2”
