SEC.07 SLIDE-OUT SYSTEMS
WARNING
Do not place excessive weight within the
slide-out. Over-loading a slide out may result
in malfunction leading to damage to the slide
mechanism, injury, or death.
+ NOTICE
For long-term storage, it is recommended
that all slide-outs be stored with slide rooms
fully retracted.
For troubleshooting and/or repair, please
contact your Authorized Dealer or Brinkley RV
Customer Care team. Examples of when to contact
may include, but are not limited to, the following:
• Slide motor stalls before the slide
reaches full extension or retraction.
• Slide does not properly close or seal correctly.
• Slide retracts or extends unevenly.
• Slide puts out unusual sound upon operation.
D. LIPPERT THROUGH FRAME
ELECTRIC SLIDE-OUT SYSTEM
One type of slide mechanism utilized by Brinkley
RV is the Lippert Through Frame Electric Slide-out
System. This system’s function is to allow the slide
room to fully extend and retract at the push of a
button. The through-frame system is a rack and
pinion guided system using an electric ball screw
actuator to move the room assembly. The actuator
comes equipped with an automatic clutching
system and is design to operate as a negative
ground system. Please refer to the manufacturer’s
manual for complete instructions on use,
maintenance, and limitations:
https://lci-support-
doc.s3.amazonaws.com/manuals/slideouts/ccd-
0001614.pdf
.
WARNING
Fully disable the auxiliary battery and turn OFF
the breaker for the converter on the distribution
panel BEFORE manually operating the system.
Failure to do so may cause electricity to back
feed from the motor and cause damage to the
system and will void the warranty.
1. Manual Operation
The Lippert Through Frame Electric Slide-out
System comes with a manual override feature.
To manually override, the system, see the
instructions below. Locate the 1" access hole
for the slide-out override in the skirt metal on the
opposing side of the slide you are attempting
to override.
Manual Override:
• Disconnect your RV battery.
• Locate 3/4" crank handle supplied with the RV
Located in the front pass-through compartment
.
• Position crank handle extension.
• Turn clockwise to retract the slide-out.
• Turn counter-clockwise to extend the slide-out.

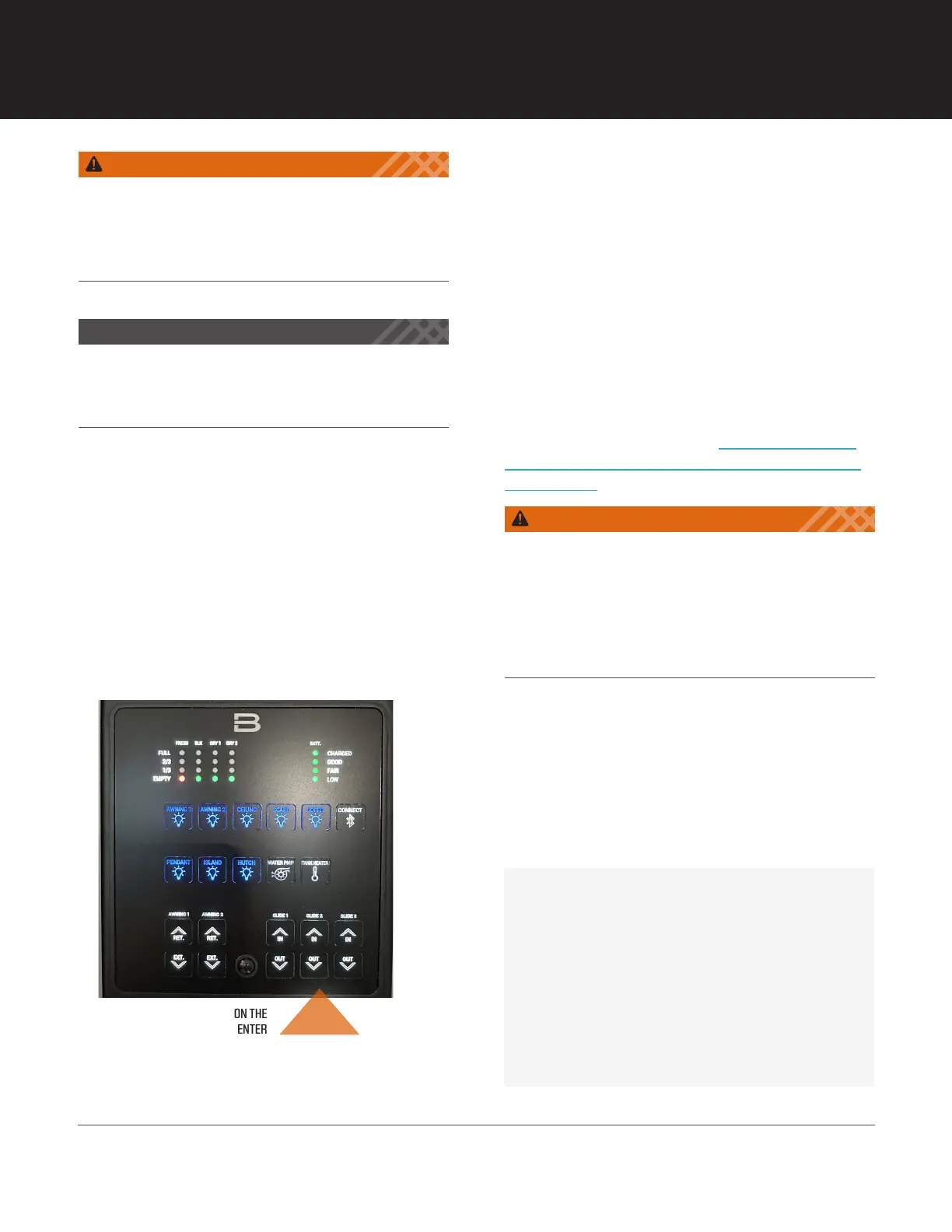

SLIDE SWITCHES ON THE
COMMAND CENTER
