Installation: Forward-Facing
16
Forward-Facing
LATCH Installation

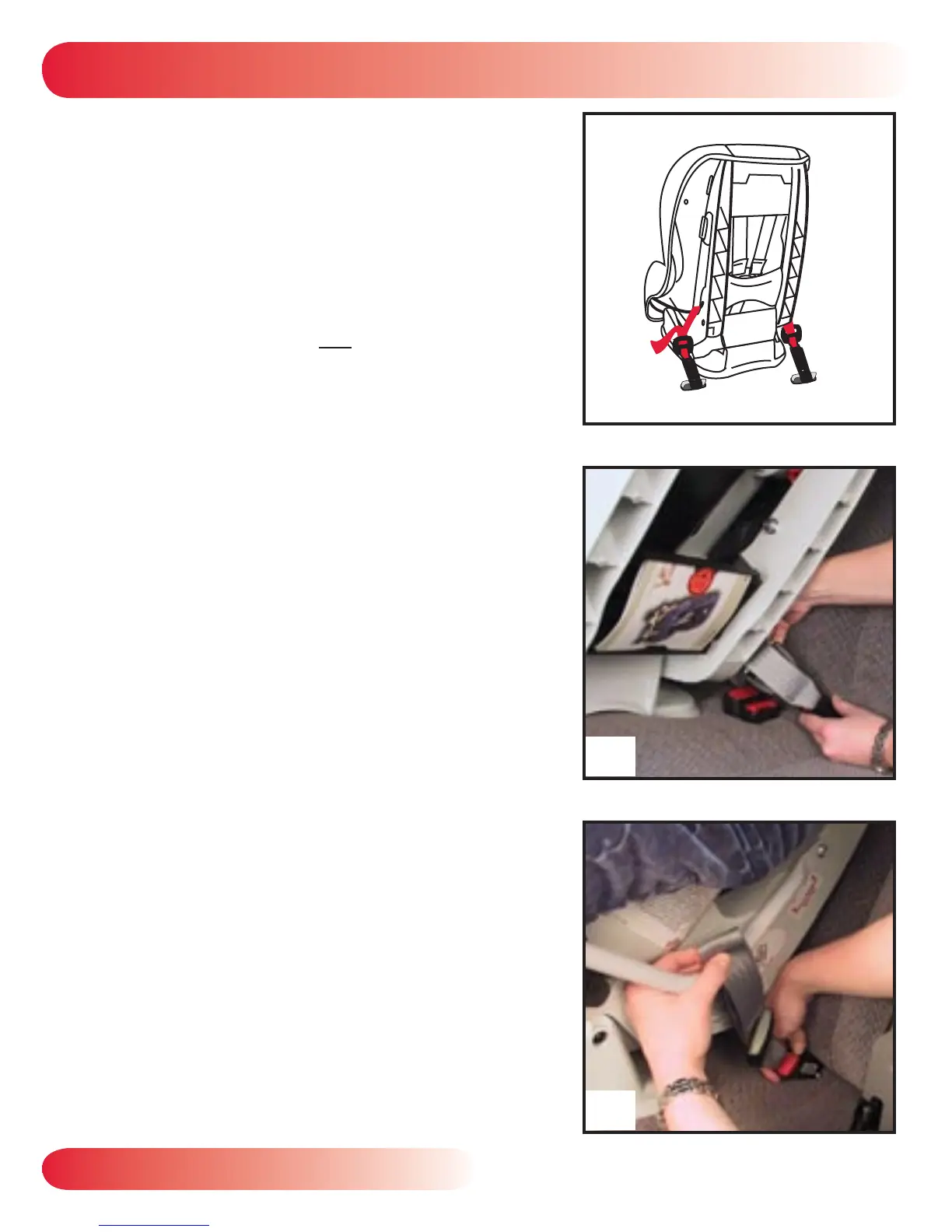

• Figure A illustrates the forward-facing
LATCH harness routing.
1
Verify that your vehicle is equipped with
LATCH anchors.
•
If LATCH anchors are not installed, you must
use standard vehicle belt installation methods.
2 If stored, remove LATCH connectors
from storage pouches under cover.
3 Press and hold the LATCH adjuster
release button, then pull to lengthen
LATCH harness to full length.
4 Place the restraint sideways on the vehicle
seat, with the back facing toward you.
•
Restraint must be in the full upright
position when installed in forward-facing
mode with children over 33 pounds (15kg).
5 Verify that LATCH harness is not twisted,
then loosely attach the farthest connector
to LATCH anchor (Fig. B).
•
A positive click confirms attachment.
•
If LATCH connectors will not attach with a
positive click, it may be necessary to switch
the LATCH connectors as shown on page
21.
6 Rotate seat into forward-facing
position.
7 Verify that LATCH harness is not twisted,
then loosely attach the closest connector
B
A
C
To Next Page
