3.3 Flashing Kit
All ductwork shall be adequately weather protected by a flashing kit designed for a 10kW, 13kW or 15kW
Icebox. The flashing kit is available in two sizes, 150mm and 250mm, each containing four parts.
Diagram 7: Flashing Kit
3.4 Fixing Screws
Six screws have been supplied in a bag with this installation manual and are required to secure the
heater to the Icebox.
4.0 ICEBOX INSTALLATION

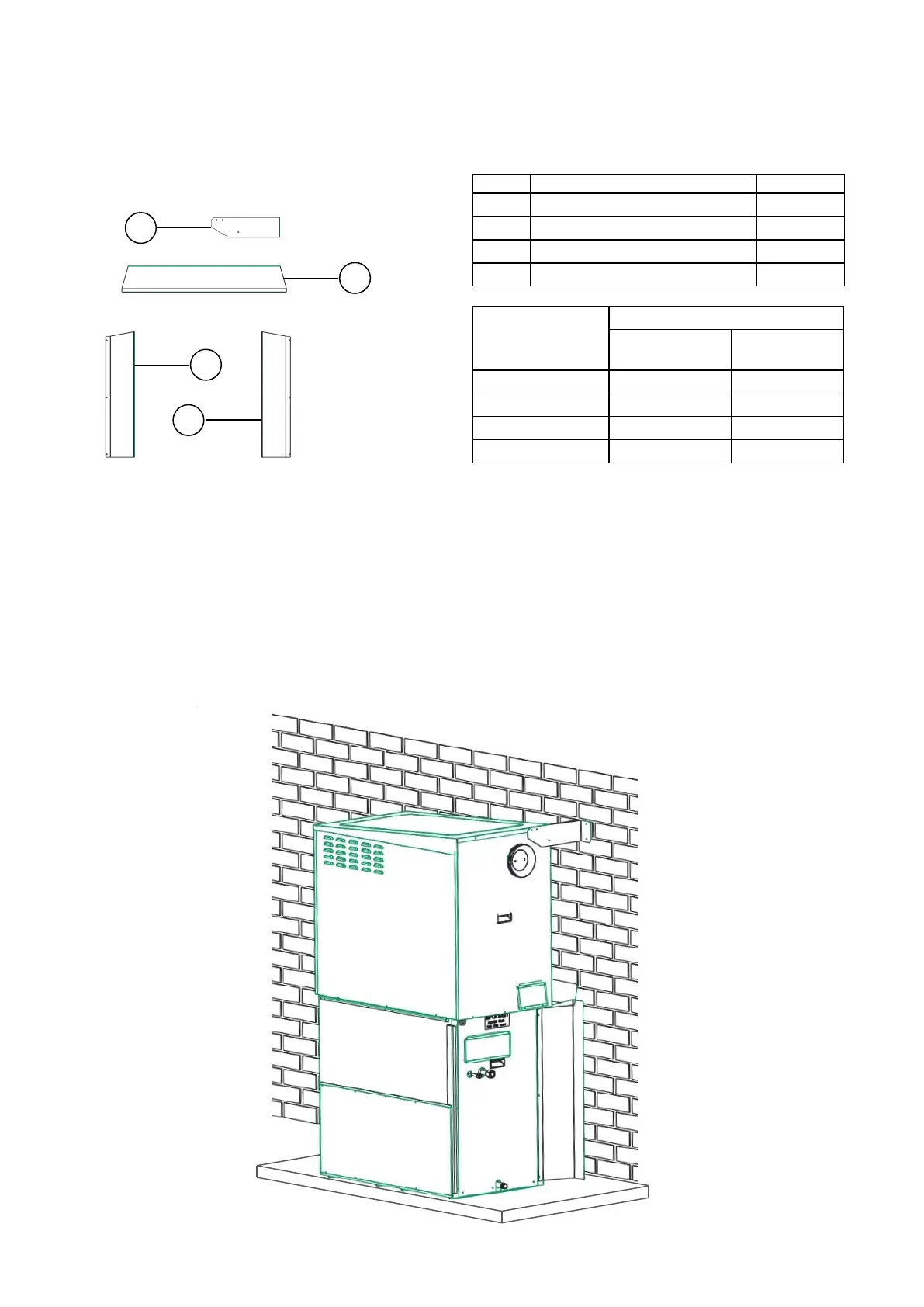

Diagram 8: Typical Icebox Installation
Item
Description
Quantity
1 Heater Support Bracket 1
2 Flashing Top 1
3 Flashing Left Hand 1
4
Flashing Right Hand
1
Model
Flashing Kit Number
Width
150mm
Width
250mm
DINIB10Z7-L
B062743
B062744
DINIB10Z7-R
B062743
B062744
DINIB13Z7
B062745
B062746
DINIB15Z7
B062939
B062940
1
3
2
4
