4.5 Brivis Heater Thermistor position (if applicable)
• Mount heater thermistor in the discharge (outlet) pop of the cooling coil
• Drill a 3/4” (20mm) diameter hole through the top of the evaporator coil’s outlet pop
• Carefully insert the thermistor assembly (probe end first) into this hole and secure using the two screws provided
• Ensure that the thermistor plug is facing upwards and is accessible for servicing
• Connect the thermistor extension lead from the heater to the thermistor assembly and ensure that the plug is
connected securely
• Ensure that the thermistor extension lead is secured to timbers or duct outer casing to prevent damage
4.6 Filtration
A filter must be fitted into the system, and should be easily accessible for regular cleaning. Please refer to the guidelines
for return air filter grilles accompanying the Gas Ducted Heater.
4.7 General Arrangement Drawings

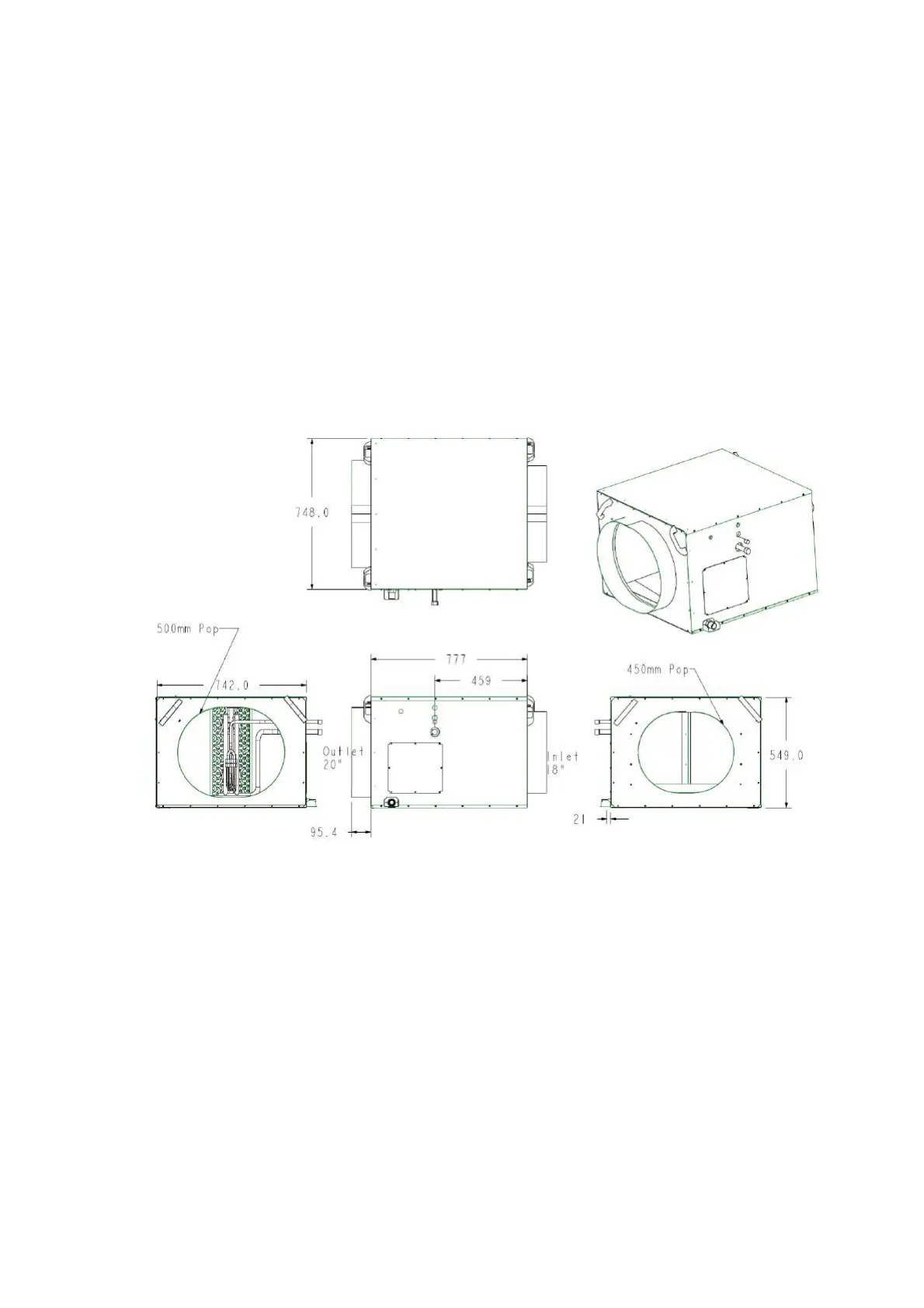

Fig. 8 - Indoor Unit Dimensions DI-XU22Z
