Brodie BiRotor Plus B27X - Complete Reassembly B35 Thru B38

IOM BiRotor Plus R27Page 29/58
9.8 - Complete Reassembly (B35 thru B38)
1. USE ARBOR PRESS TO CAREFULLY PRESS (QTY 2) TIMING GEAR SIDE BEARING INTO THE OUTLET
BEARING PLATE
NOTE:

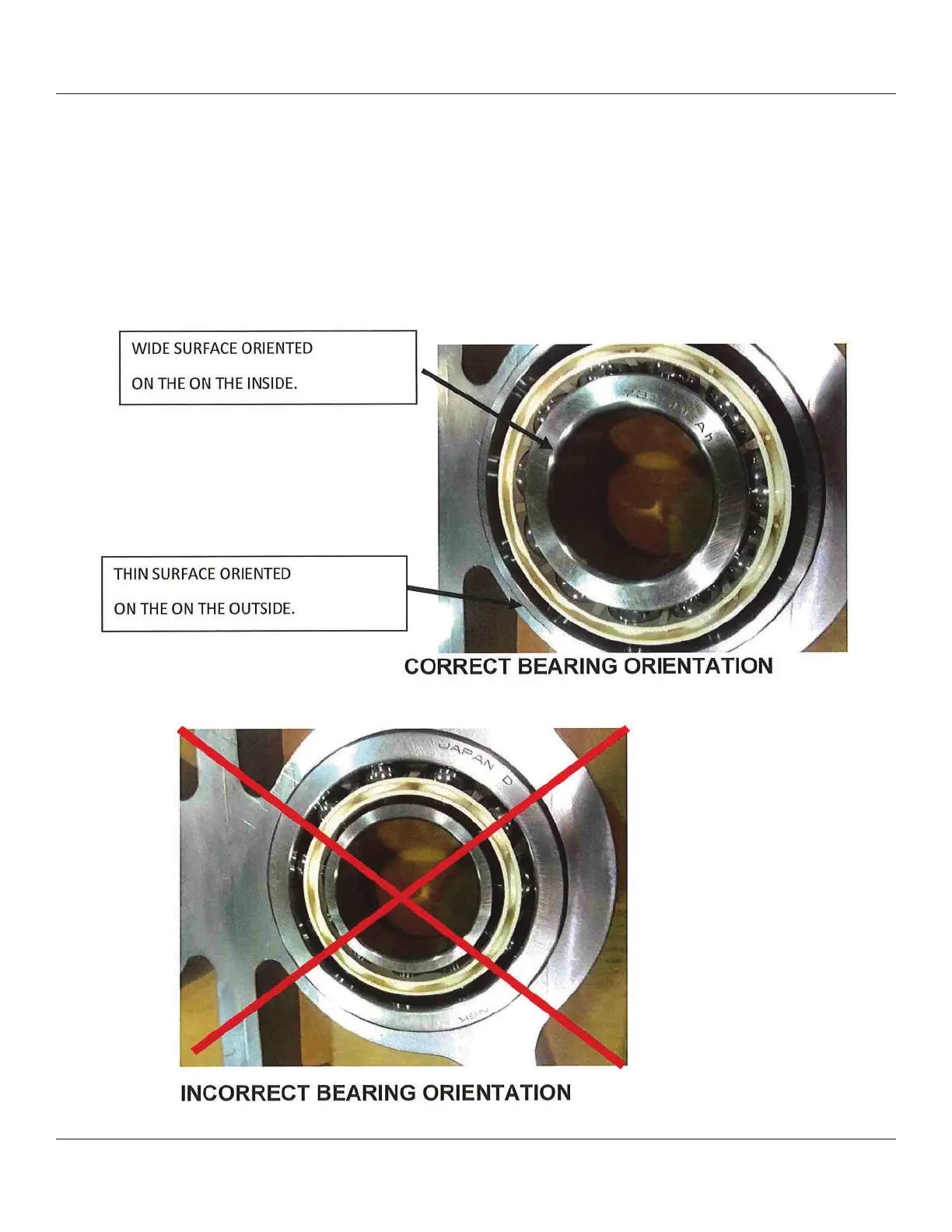

Direction of Bearing is Critical. (See Figure 1)
DO NOT PRESS ON INNER RACE OF BEARING
Figure 1
