ANALOG DIAL VISCOMETER

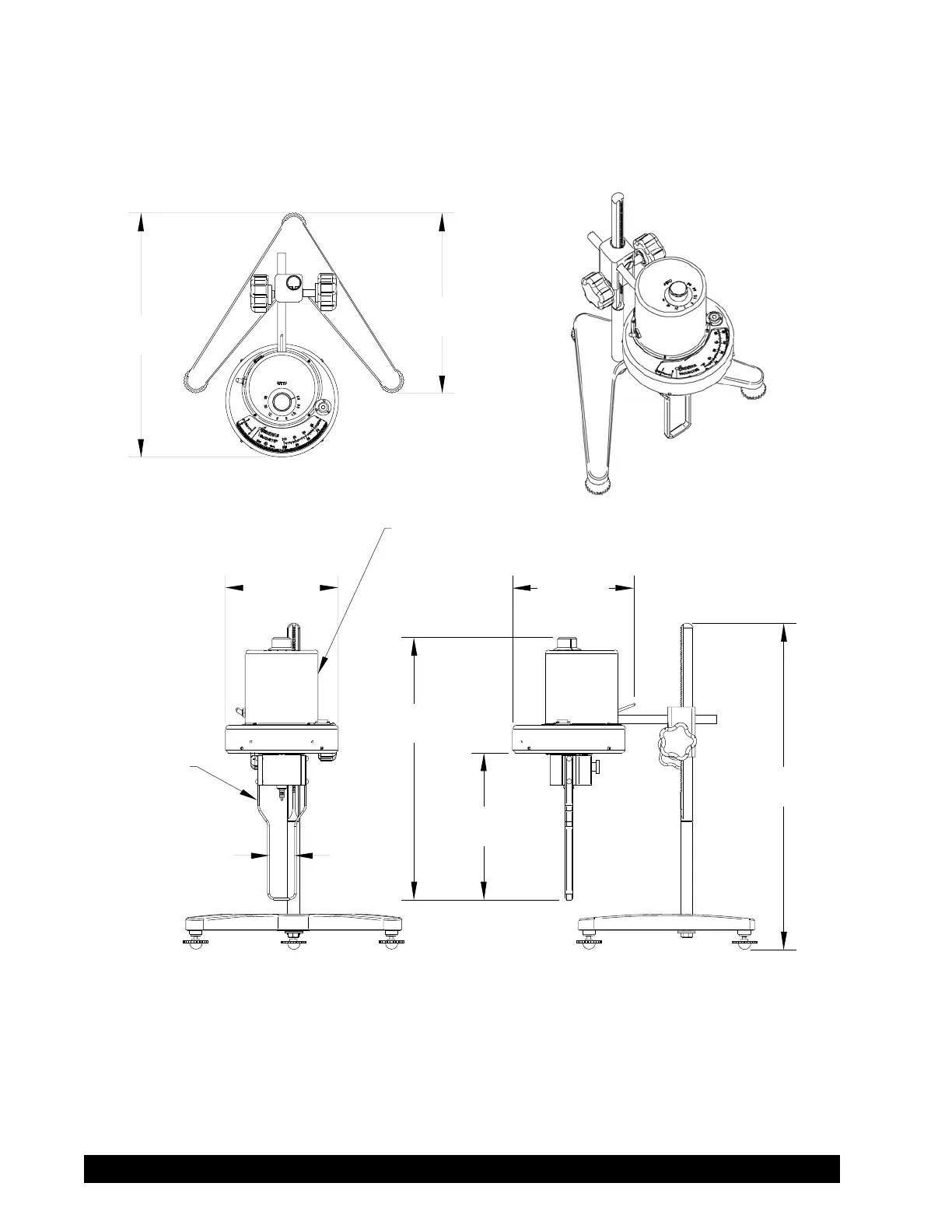

WITH MODEL A LAB STAND OVERALL DIMENSIONS
1 1/4
[3.2 cm]
B-20Y
LV GUARD LEG
ASSEMBLY
5 5/8
[14.3 cm]
ANALOG DIAL VISCOMETER
6 1/32
[15.3 cm]
13 5/64
[33.2 cm]
7 21/64
[18.6 cm]
9
[22.8 cm]
12 11/64
[30.9 cm]
16 17/64
[41.3 cm]
