Brother ADS-2600W User Manual

4-4
Confidential
1.4 Setting Serial Number
(1) Connect the machine to your computer using the USB cable in the initial state of
maintenance mode.

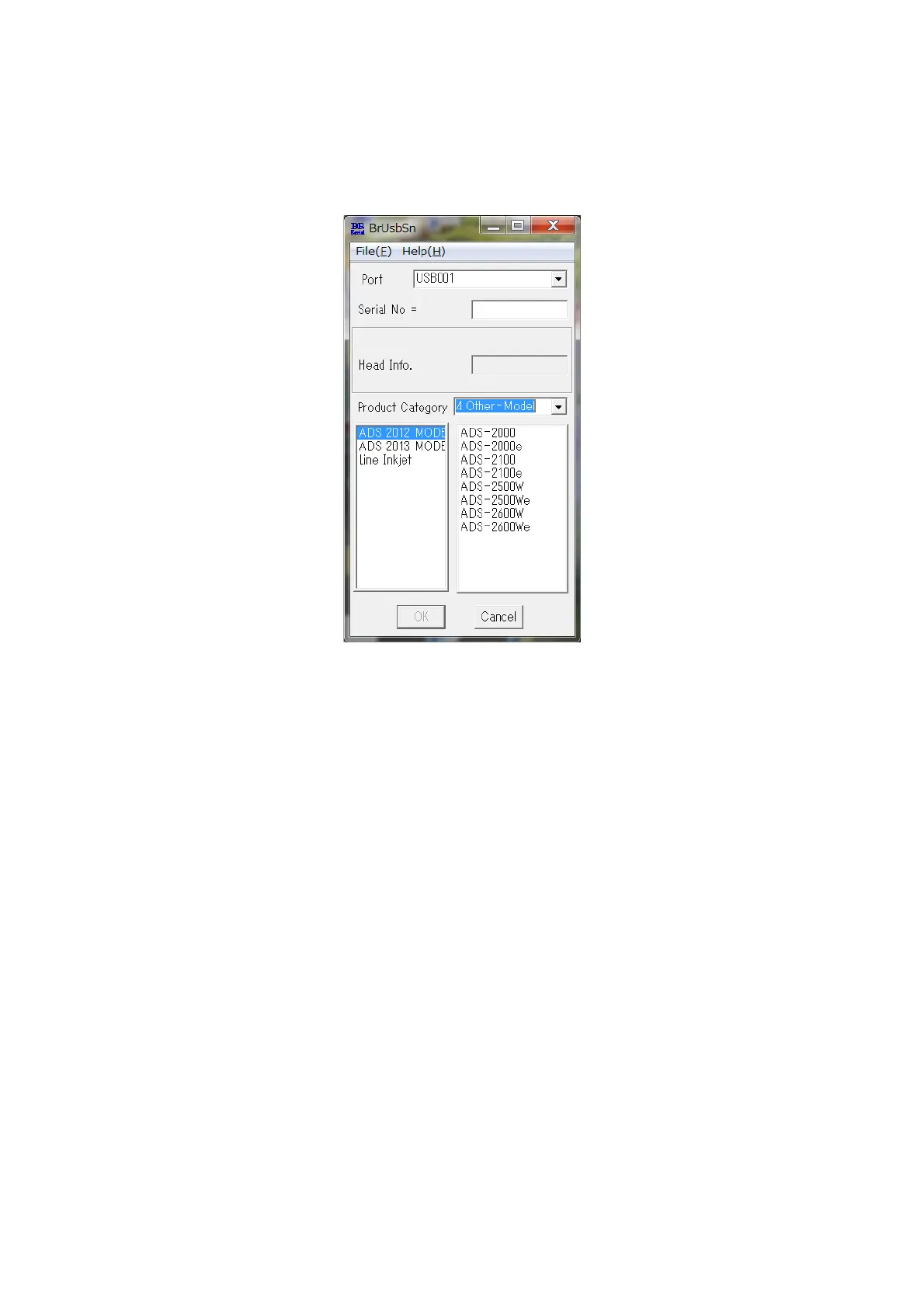

(2) Double-click "brusbsn.exe" file that was copied into the temporary folder to start it.
(3) In the [Product Category] field, select the [4 Other-Model].
(4) Select [ADS 2012 MODEL] in the left bottom field of the BrUsbSn.
(5) In the [Port] field, select the port number assigned to the Brother Maintenance USB
Printer.
If the port number is unknown, follow the steps below to check it.
1) Click [Start], [Settings], and [Printers and Faxes]. The Printers and Faxes window
appears.
2) Right-click the "Brother Maintenance USB Printer" icon.
3) Click [Properties]. The Brother Maintenance USB Printer Properties window appears.
4) Click the [Ports] tab. The Brother Maintenance USB Printer port number is displayed.
(6) Enter the serial number (15 digits) of the machine in the [Serial No] field.
(7) Click the [OK] button. The [CHECK] box is displayed.
(8) Click the [Yes(Y)] button. The serial number is written to the machine.
(9) Disconnect the USB cable.

Brother ADS-2600W Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black, White
Display diagonal	3.7 \
Scan to	E-mail, E-mail Server, FTP, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ICA, ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	1500 pages
Auto document feeder (ADF) input capacity	50 sheets
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (off)	0.4 W
Power consumption (standby)	4 W
Power consumption (typical)	20 W
Sustainability certificates	ENERGY STAR
Package weight	5700 g

Weight and Dimensions

Depth	220 mm
Width	299 mm
Height	179 mm
Weight	3600 g
