Brother ADS-2600W User Manual

3-14
Confidential
9.3 Pick-up roller ASSY

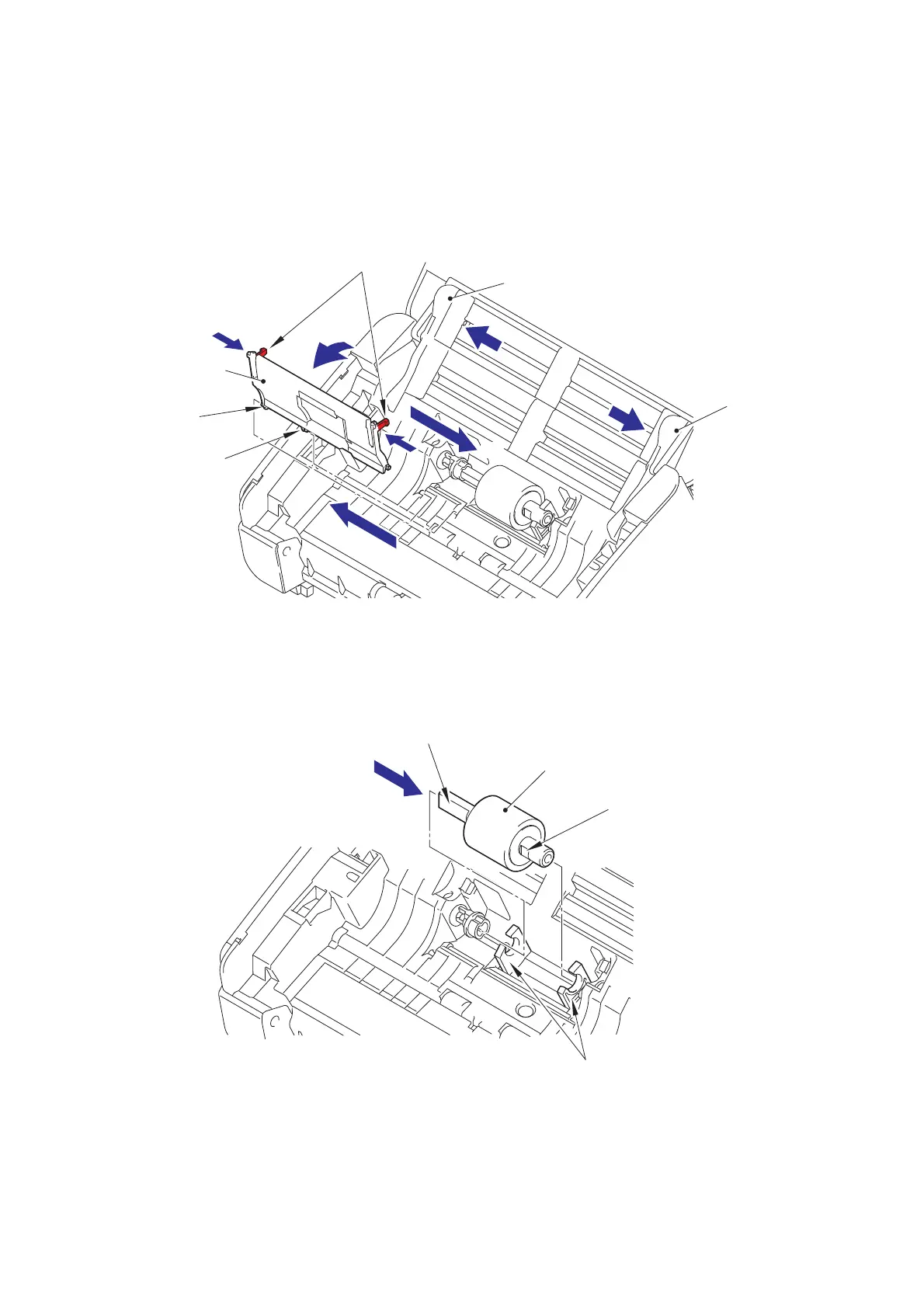

(1) Slide the document guide L and R outward.
(2) Push the two hooks inward to open the pick-up roller cover ASSY. Slide the pick-up roller
cover ASSY in the direction of arrow 2a to remove the boss A, and in the direction of arrow
2b to remove the boss B. Then remove the pick-up roller cover ASSY from the machine.
Fig. 3-6
(3) Slide the pick-up roller ASSY in the direction of the arrow, engage the two shaft cutout
surfaces on the pick-up roller ASSY with the two notches on the pick-up roller bushing, and
then remove the pick-up roller ASSY from the machine.
Fig. 3-7
(4) Close the front cover and the top cover.
Hooks
Document guide L
Document guide R
Boss B
Pick-up roller
cover ASSY
2a
Boss A
2b
Pick-up roller ASSY
Cutout surface
Cutout surface
Pick-up roller bushing

Brother ADS-2600W Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black, White
Display diagonal	3.7 \
Scan to	E-mail, E-mail Server, FTP, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ICA, ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	1500 pages
Auto document feeder (ADF) input capacity	50 sheets
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (off)	0.4 W
Power consumption (standby)	4 W
Power consumption (typical)	20 W
Sustainability certificates	ENERGY STAR
Package weight	5700 g

Weight and Dimensions

Depth	220 mm
Width	299 mm
Height	179 mm
Weight	3600 g
