7. ADJUSTMENT
BAS-311G, BAS-326G
108

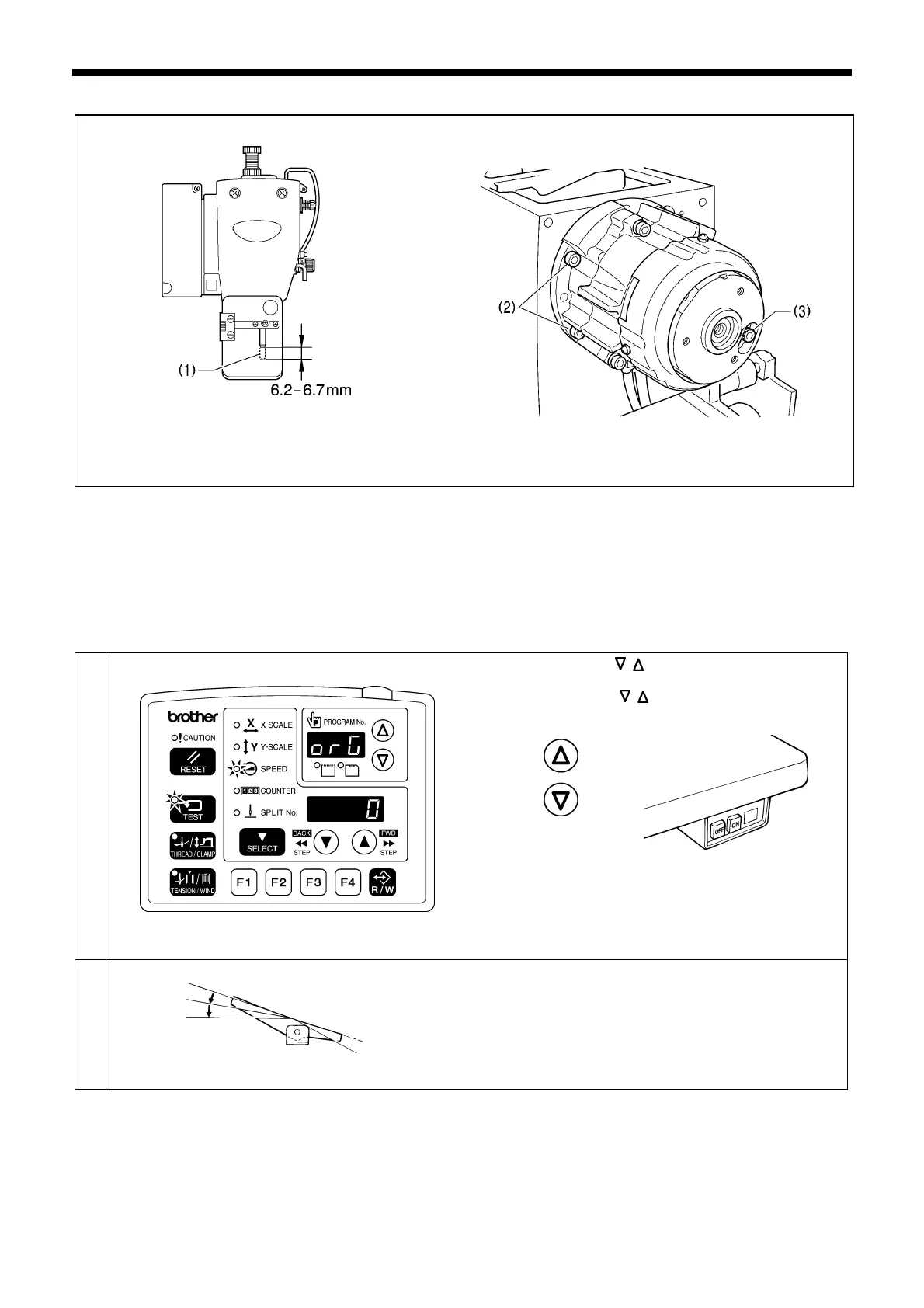

7-22. Adjusting the needle up stop position
Use the operation panel to adjust the needle up stop position so that the needle bar (1) is lowered 6.2 – 6.7 mm from its
highest position (near the highest stop position for the thread take-up).
NOTE:
When the four bolts (2) of the sewing machine motor and the bolt (3) of the magnet are loosened, the feed timing may
move out of adjustment. Do not loosen these bolts when the settings are at the factory defaults or after adjusting the
needle up stop home position.
[Adjustment method]
1
TEST indicator and SPEED indicator light
While pressing the
keys simultaneously, turn on
the power switch.
* Keep pressing the keys until the model name is
displayed and the buzzer beeps once.
• "orG" will flash in the PROGRAM No. display and the
offset value will be displayed in the menu display.
2
Depress the foot switch to the 2nd step.
(If using a two-pedal foot switch, lower the work clamp before
depressing the start switch.)
• X-Y home position detection will be carried out and the "orG" will
stop flashing and illuminate steadily.
2nd step
4441Q
4703Q 4448Q 4421Q
5216Q
5211Q
