6. ASSEMBL
Y
BAS-311G, BAS-326G
84

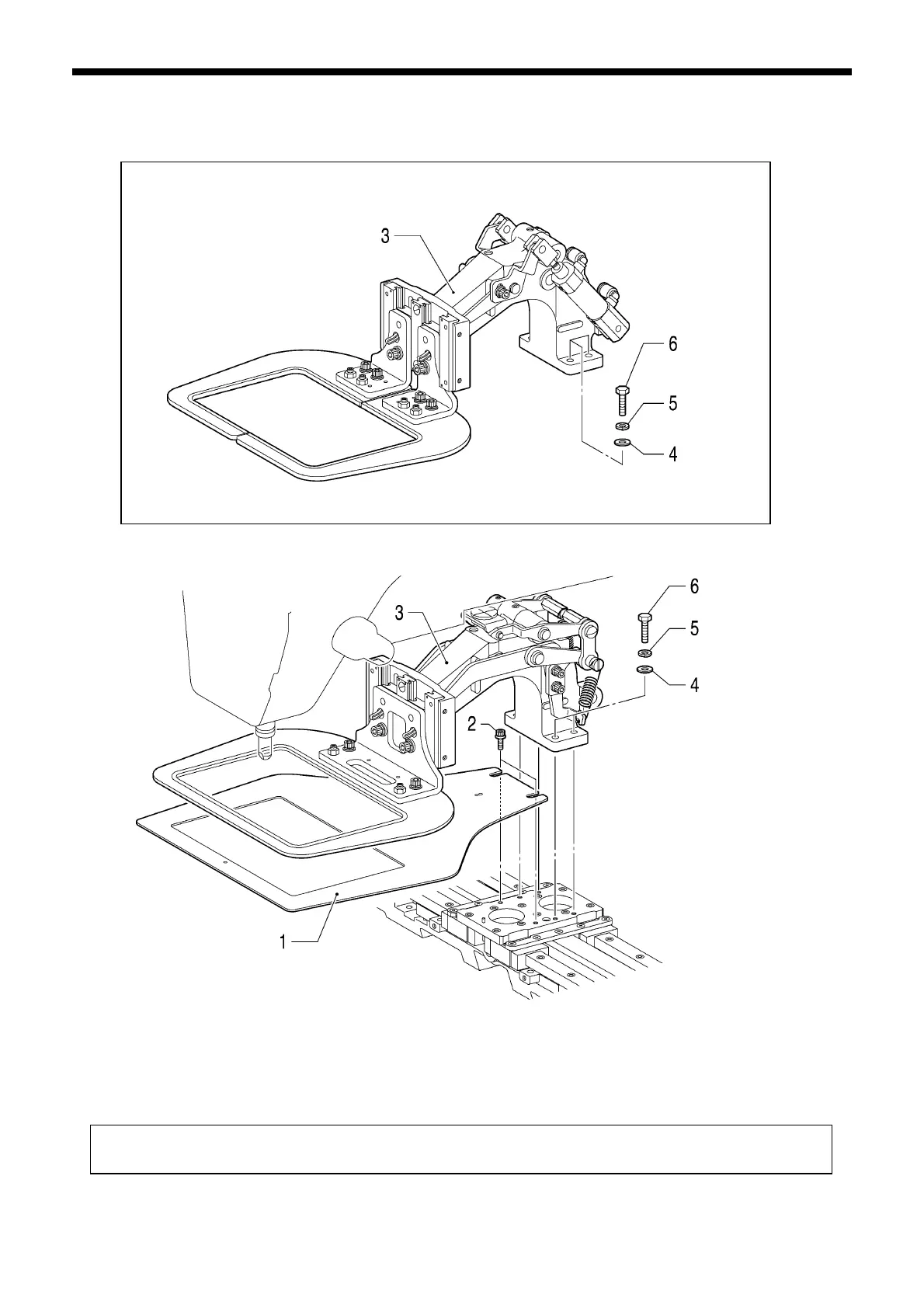

6-14. Work clamp arm mechanism
1. Feed
plate
2.
Bolts with washer [2pcs]
3.
Work clamp assy
4.
Plain washers [4 pcs]
5.
Spring washers [4 pcs]
6.
Bolts [4 pcs]
A
fter installing, carry out test
feeding and check that the
needle hole is in
side the work clamp and the feed plate
frame. If the needle hole is not inside the frame, adjust the position of the work clamp arm assembly and feed plate.
Pneumatic s
p
ecifications
5200Q
5201Q
90
92
Table of Contents
Default Chapter
6
Table of Contents
6
1 Specifications
8
2 Function Settings
9
List of Special Functions When Power Is Turned on
9
List of Advanced Functions
10
Memory Switch Setting Method (Advanced)
11
List of Memory Switch Settings
12
Setting the Work Clamp Mode
21
Stitch Counter Checking Method
22
Error History Checking Method
23
Input Checking Method
24
Output Checking Method
27
Software Version Checking Method
29
3 Reading / Writing Data
30
Handling Data
30
Notes on Handling CF Cards (Sold Separately)
31
Structure of a CF Card Folder
31
Data Read/Write Mode
32
Reading Sewing Data from CF Cards
33
Writing Sewing Data to CF Cards
34
Reading Memory Switch Data from CF Cards
35
Writing Memory Switch Data to CF Cards
35
Reading User Program Data from CF Cards
36
Writing User Program Data to CF Cards
36
Updating the Control Program
37
Writing Error Log Data to CF Card
38
Reading Sewing Data from Floppy Disks
38
Writing Sewing Data to Floppy Disks
39
Reading Extended Option Output Data from a CF Card
40
Writing Extended Option Output Data to CF Cards
41
Reading Extended Option Output Data from Floppy Disks
41
4 Mechanical Descriptions
42
Needle Bar and Thread Take-Up Mechanisms
42
Lower Shaft and Shuttle Race Mechanisms
42
Work Clamp Lifter Mechanism (Solenoid Specifications)
43
Work Clamp Lifter Mechanism (Pneumatic Specifications)
44
Intermittent Presser Foot Lifter Mechanism
44
Intermittent Presser Foot Stroke Mechanism
45
Feed Mechanism
46
Thread Trimmer Mechanism
47
Tension Release Mechanism
48
Thread Wiper Mechanism
48
5 Disassembly
49
Covers
49
Thread Wiper Mechanism
50
Work Clamp Arm Mechanism
51
Intermittent Presser Foot Lifter Mechanism (1)
52
Needle Bar Mechanism
53
Upper Shaft Mechanism
54
Lower Shaft Mechanism
55
Feed Covers
56
Feed Mechanism
57
Work Clamp Lifter Mechanism (Solenoid Specifications)
60
Work Clamp Lifter Mechanism (Pneumatic Specifications)
61
Tension Release Mechanism
62
Intermittent Presser Foot Lifter Mechanism (2)
62
Thread Trimmer Mechanism
63
Shuttle Hook Mechanism
64
6 Assembly
65
Thread Trimmer Mechanism (1)
65
Intermittent Presser Foot Lifter Mechanism (1)
67
Tension Release Mechanism
67
Work Clamp Lifter Mechanism (Solenoid Specifications)
68
Work Clamp Lifter Mechanism (Pneumatic Specifications)
71
Feed Mechanism
73
Feed Covers
80
Upper Shaft Mechanism
82
Needle Bar Mechanism
84
Intermittent Presser Foot Lifter Mechanism (2)
86
Lower Shaft Mechanism
88
Shuttle Hook Mechanism
90
Thread Trimmer Mechanism (2)
90
Work Clamp Arm Mechanism
91
Adjustments after Work Clamp Arm Installation
92
Thread Wiper Mechanism
93
Covers
94
7 Adjustment
95
Checking the Machine Head Switch
95
Standard Thread Tension
96
Upper and Lower Thread Tension
96
Thread Take-Up Spring
97
Arm Thread Guide R
97
Adjusting the Needle Bar Height
98
Adjusting the Needle Bar Lift Amount
98
Adjusting the Driver Needle Guard
98
Adjusting the Needle Clearance
99
Adjusting the Shuttle Race Thread Guide
99
Rotary Hook Lubrication Amount
99
Adjusting the Position of the Movable Knife
100
Replacing the Movable and Fixed Knives
102
Installing the Feed Plate
103
Adjusting the Thread Wiper
104
Presser Foot Installation Position
104
Changing the Intermittent Stroke
105
Adjusting the Work Clamp Lift Amount
107
Adjusting the Air Pressure (Pneumatic Specifications)
107
Adjusting the Thread Trimmer Cam Position
108
Belt Tension Adjustment
108
Adjusting the Tension Release Amount
109
Adjusting the Backlash of the Lower Shaft Gear
110
Adjusting the Home Position
111
Work Clamp Lift Home Position
111
X-Y Feed Home Position
112
Adjusting the Needle up Stop Home Position
114
Adjusting the Needle up Stop Position
115
8 Electrical Mechanism
117
Precautions While Carrying out Adjustments
117
Inside the Control Box and Operation Panel Structure
118
Description of Fuses
119
Description of Connectors
120
Connector Positions
120
Symptoms When There Are Poor Connections
123
Troubleshooting
126
Diagnosis Flowchart
126
Remedy
130
9 Table of Error Codes
144
10 Troubleshooting
148
11 Segment Display
151
