7. ADJUSTMENT
BAS-311G, BAS-326G
96

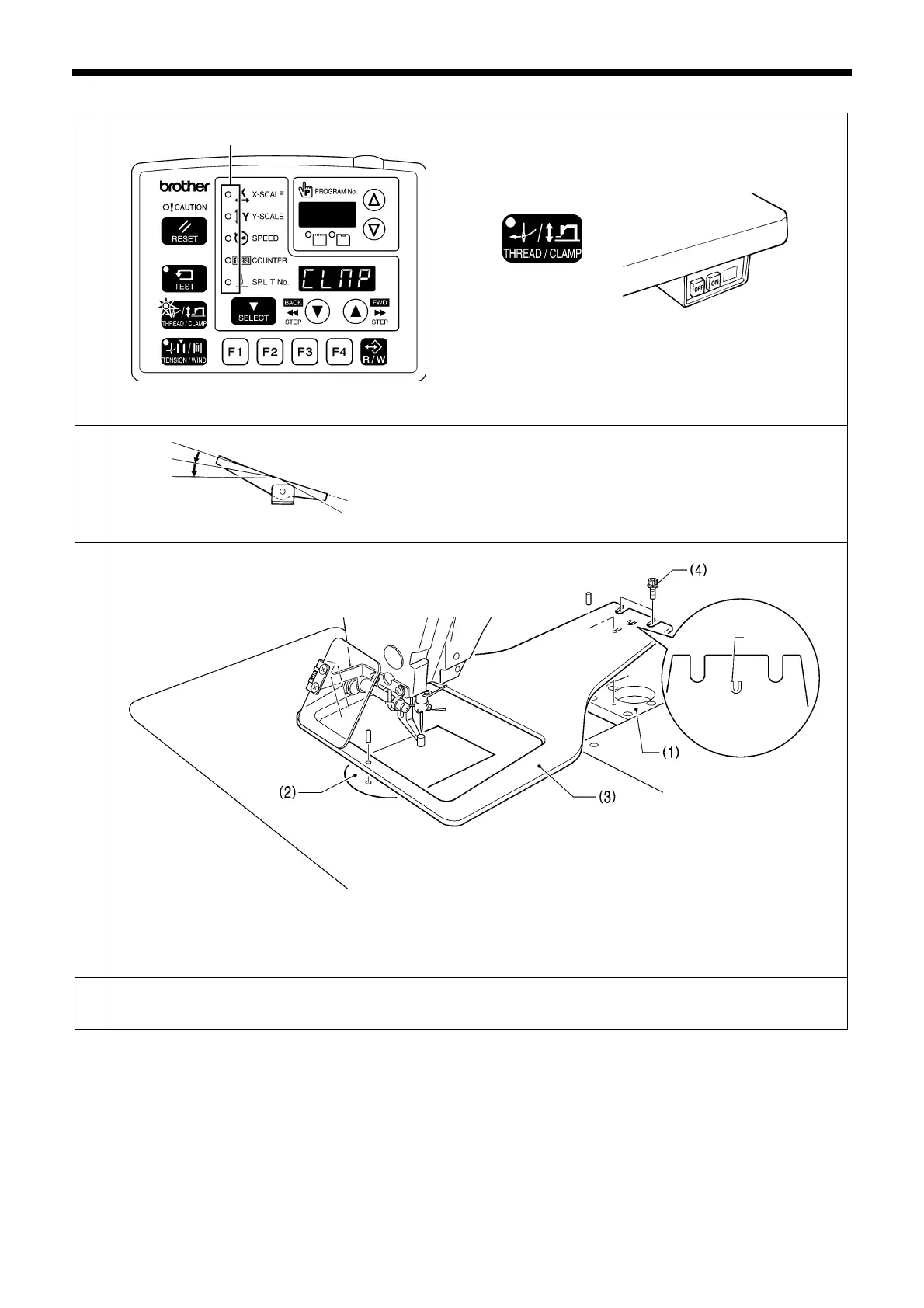

7-10-1. Installing the feed plate
1
MENU indicator switches off
THREAD/CLAMP indicator illuminates
While pressing the THREAD/CLAMP key, turn on the power
switch.
* Keep pressing the THREAD/CLAMP key until the model
name is displayed and the buzzer beeps once.
• "CLMP" will appear in the menu display.
2
Depress the foot switch to the 2nd step.
(If using a two-pedal foot switch, lower the work clamp before
depressing the start switch.)
• After the home position is detected and the work clamp drops, the
feed mechanism will move to the feed plate installation position and
then the work clamp will rise.
3
Use a 2 mm diameter pin to align the holes in the X feed bracket (1) and the needle plate (2) with the two holes in the
feed plate (3), and then tighten the two bolts (4).
NOTE: Install the feed plate so that the surface with the index mark is facing upward.
4
End feed plate installation mode Turn off the power.
4421Q
All indicators switch off
2nd step
5005Q
4441Q
5006Q
Index
mark
To Next Page
