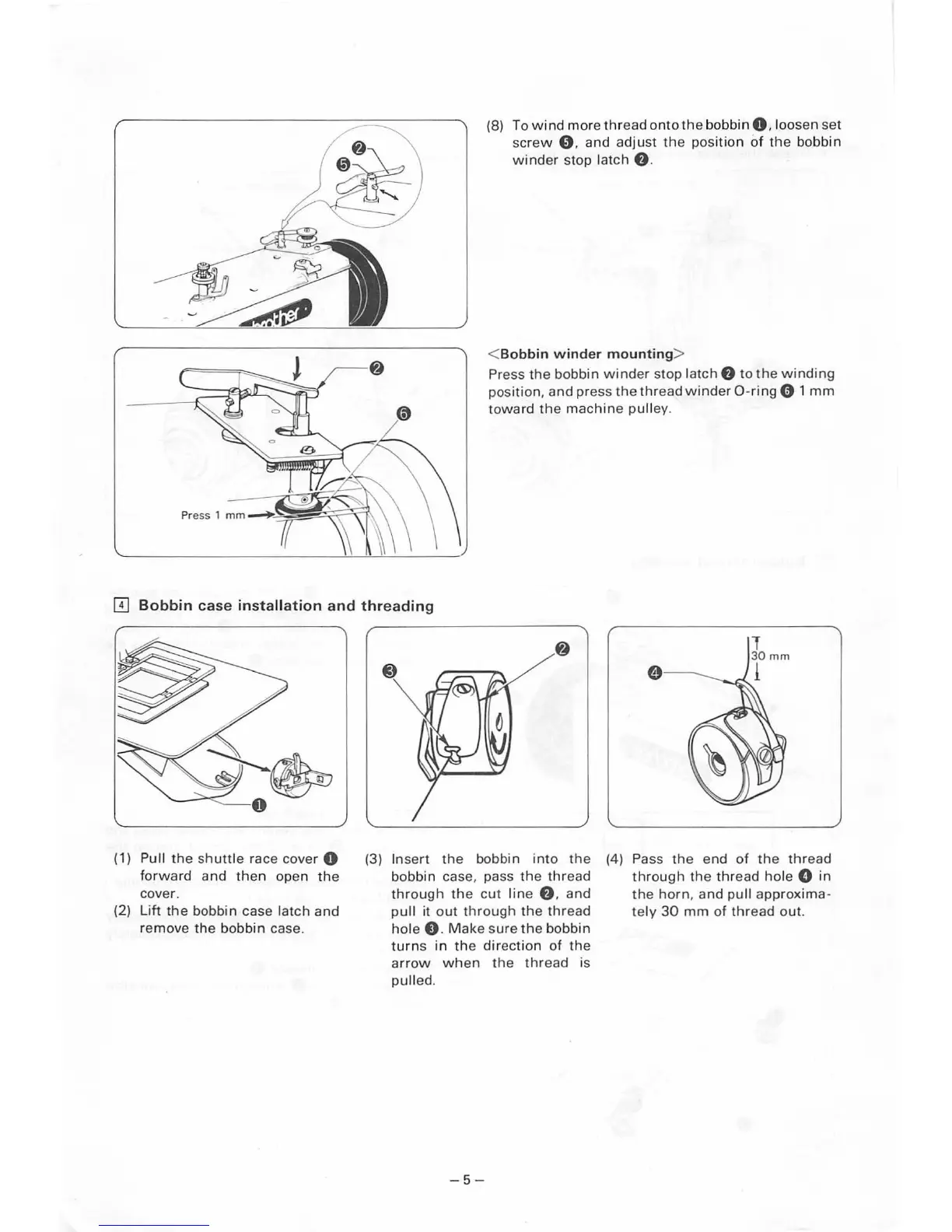

Brother BAS-320 - Bobbin Case Installation and Threading

(8) To wind more thr ead onto the bobbin 0, loosen set
screw 0. and adjust the pos it ion of the bobbin
winder stop l atch f) .
< Bobbin winder mounting >
Press
th e bobbin winder stop latch f) to the winding
position, and press th e thread winder 0-ring G 1 mm
towa rd the mach ine pu ll ey .
[I] Bobbin case installation and threading
(1) Pull the sh uttle race cover 0
forward a nd then open the
cover.
(2)
Lift the bobbin case latch and
remove the bobbin case.
(3)
In sert the bobbin into th e
bobbin
case, pass the thr ead
through the cut l ine f) , and
pull it out through the thread
hol e 0 . Make s ure the bobbin
turn s in the direct ion of the
arrow when th e thread is
pulled .
- 5 -
(4) Pass the end of th e thread
through th e thread hole 0 in
the horn, and pull approxima-
tely 30 mm of thr ead out.
