3. INSTALLATION
16
BAS-341H, BAS-342H

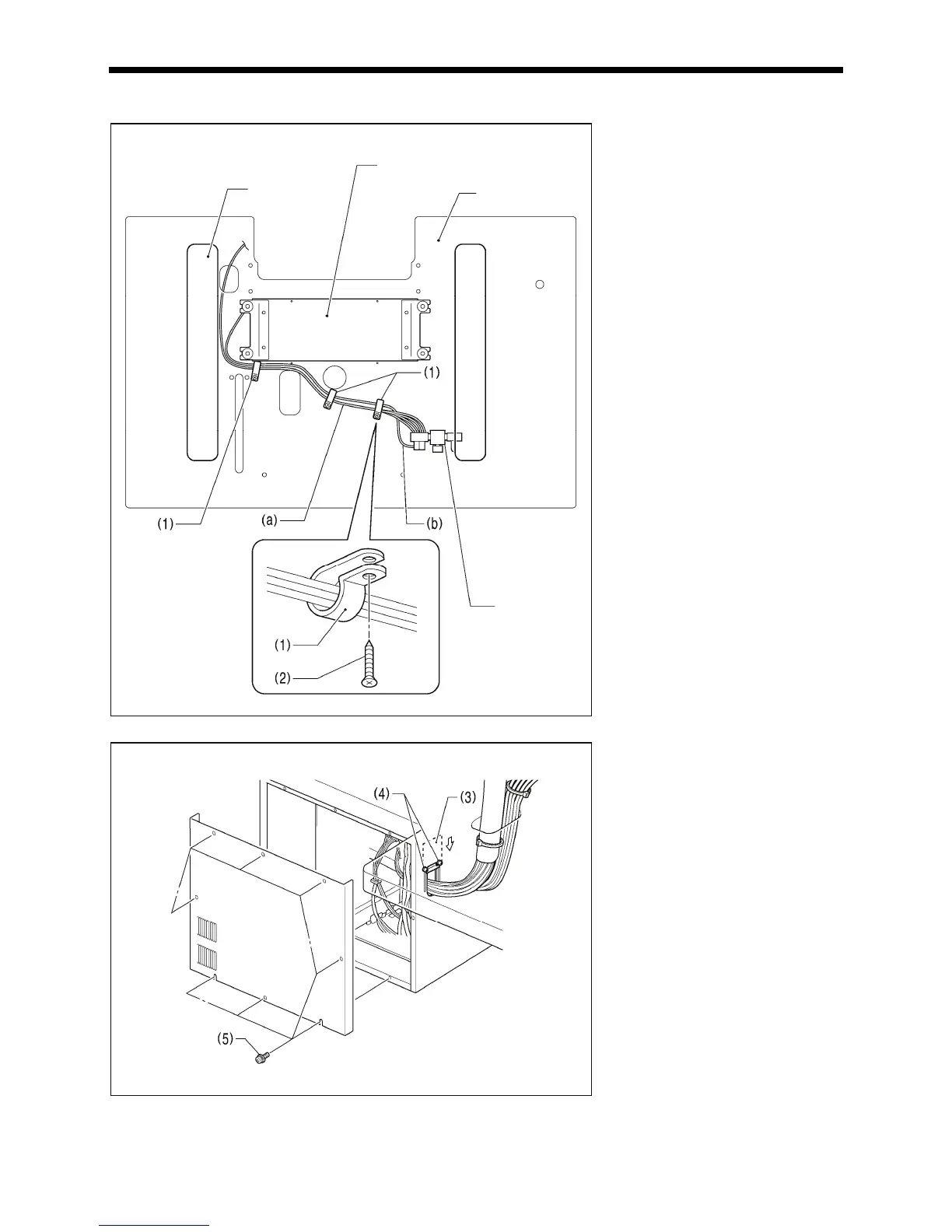

3-14. Securing the cords and air tubes
Secure the air tubes (a) and the solenoid
valve assembly cord (b) together
underneath the table with the three cord
holders (1).
(1) Cord holders [3 pcs.]
(2) Wood screws [3 pcs.]
<
Checking the cords>
1. Gently tilt back the machine head.
(Refer to "3-5. Tilting back and
returning the machine head".)
2. Check that none of the cords are
being pulled.
3. Return the machine head to its
original position.
4. Close the cord presser plate (3) in the
direction of the arrow, and secure it by
tightening the two screws (4).
NOTE:
Close the cord presser plate (3)
securely so that no foreign objects,
insects or small animals can get
inside the control box.
5. Secure the cover of the control box by
tightening the eight screws (5).
Check that the cords are not clamped
by the cover at this time.
3654B
Control box
Table
Solenoid valve
assembly
Leg
< Perspective view from above table >
3600B
To Next Page
