BE-0901E-AC-PC• BE-1201B-AC-PC 2-3
Chapter 2 Preparation of Embroidery Machine
2. Installation
DANGER
Embroider
machines should be installed onl
by trained engineers.
Electric wiring should be laid by your
distributor or electric experts.
Install a machine in a place away from a high-
fre
machine or other machines that
ma
electric noise. Failure to do
so may cause the embroidery machine to
malfunction.
The sewing machine weighs more than 195
kg. The installation should be carried out by
two or more people.
Be sure to connect the ground. If the ground
connection is not secure, you run a high risk of
receiving a serious electric shock, and problems
with correct operation may also occur.
Do not connect the power source until
installation is completed. Doing so may start
the machine unintentionally through an
accidental activation of the START switch,
resulting in bodily injuries.
Secure the machine with the nuts when installin
it
so that it will not move b
seat
on the sound floor.
* After installation is completed, get the power supply from a dedicated outlet.
* When connecting multiple machines, exercise care not to exceed the capacity of the outlet.
2-1 Transportation of Machine
When relocating the machine, lift it by the steel frame.
Note) Never lift the machine by the table or the guard bar.

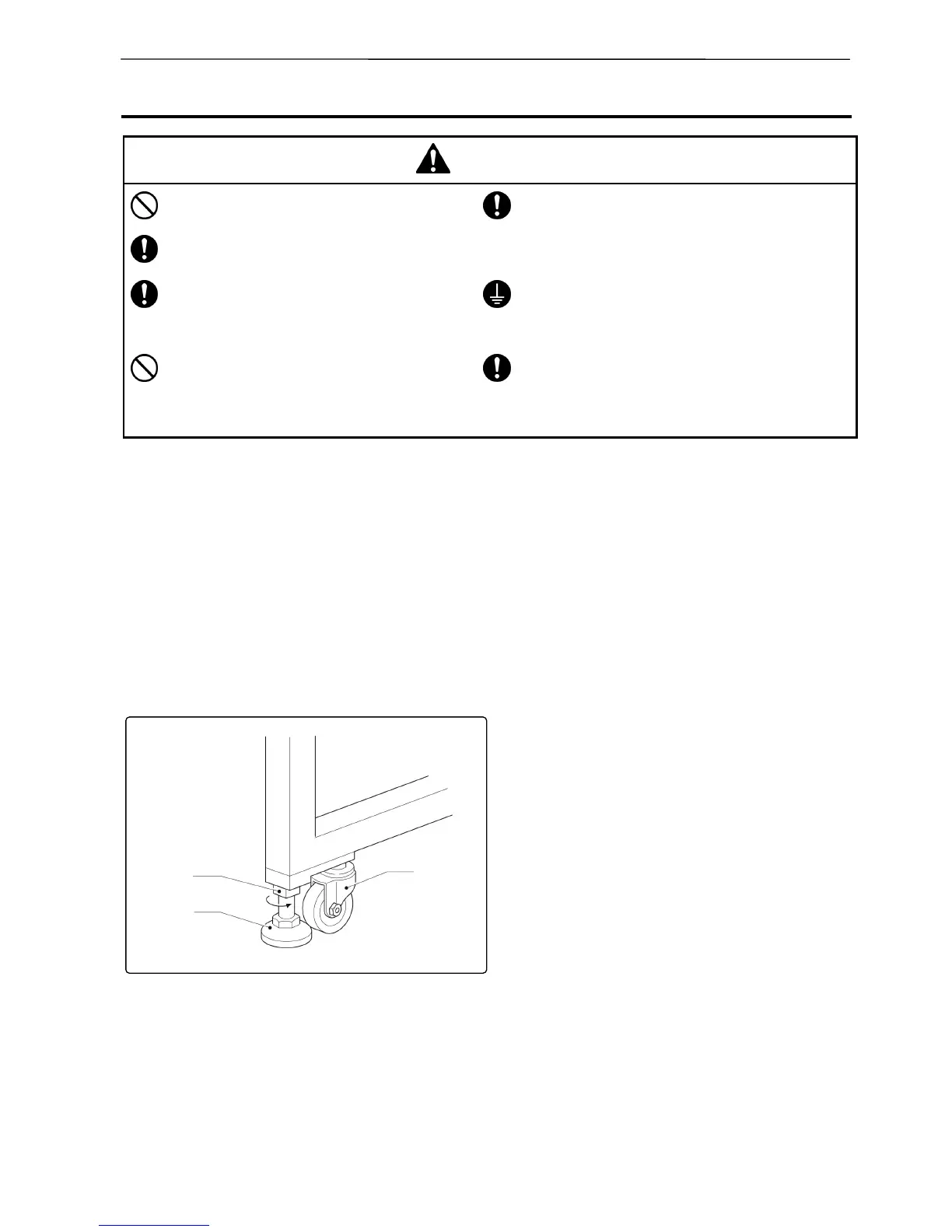

2-2 Installation of Machine
W1565
1 Adjust leveling seats [1] by turning nuts [2]
in the direction of the arrow until the table
top is placed horizontally.
2 If the table is not stable, loosen nuts [2] and
turn leveling seats [1] for adjustment.
When relocating the machine, raise leveling
seats [1]. The machine can then be moved
with casters [3].
[3]
[1]
[2]
