Chapter 2 Preparation of Embroidery Machine
3-5 Attachment of Embroidery Hoop and Frame
!
!!
! Attaching a square frame and a flat hoop frame (standard)
W1591

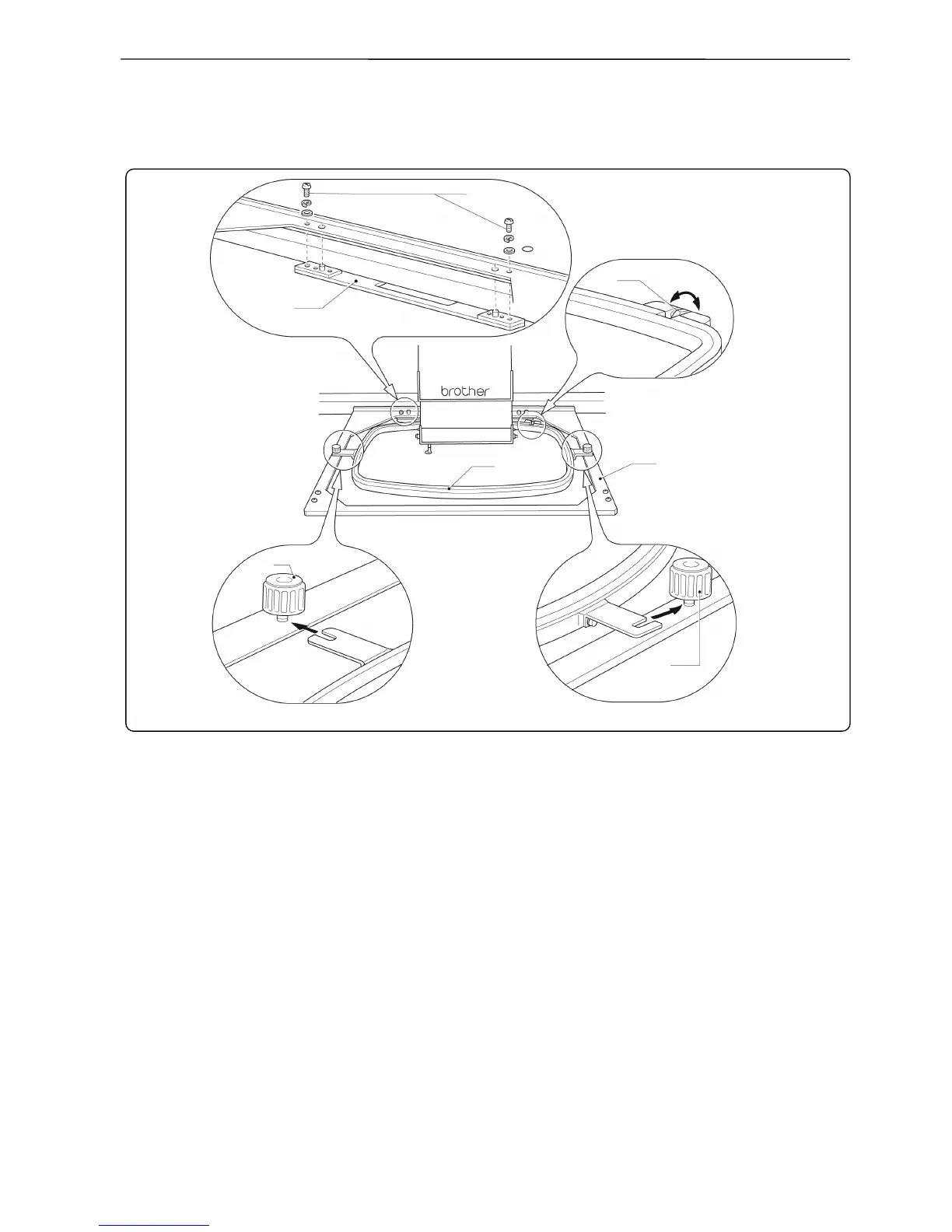

1. Attach flat hoop frame (assembly) [1] to X carriage [2], and tighten two screws [3].
Fit the projections of the X carriage into the inner holes.
2. Loosen two screws [4]. Attach square frame [5].
3. As shown in Figure A, fit the left metal part of the square frame to the screw. As shown in Figure B,
fit the right metal part to the screw. Tighten two screws [4] securely.
4. If the material over the square frame is not set properly, stitches may be skipped, threads may be
broken, or the material may shrink during embroidering. Make an adjustment using screw [6].
[4]
[2]
Figure
A
Figure B
[5]
[6]
[4]
[1]
[3]
