KE-430D, BE-438D
iv

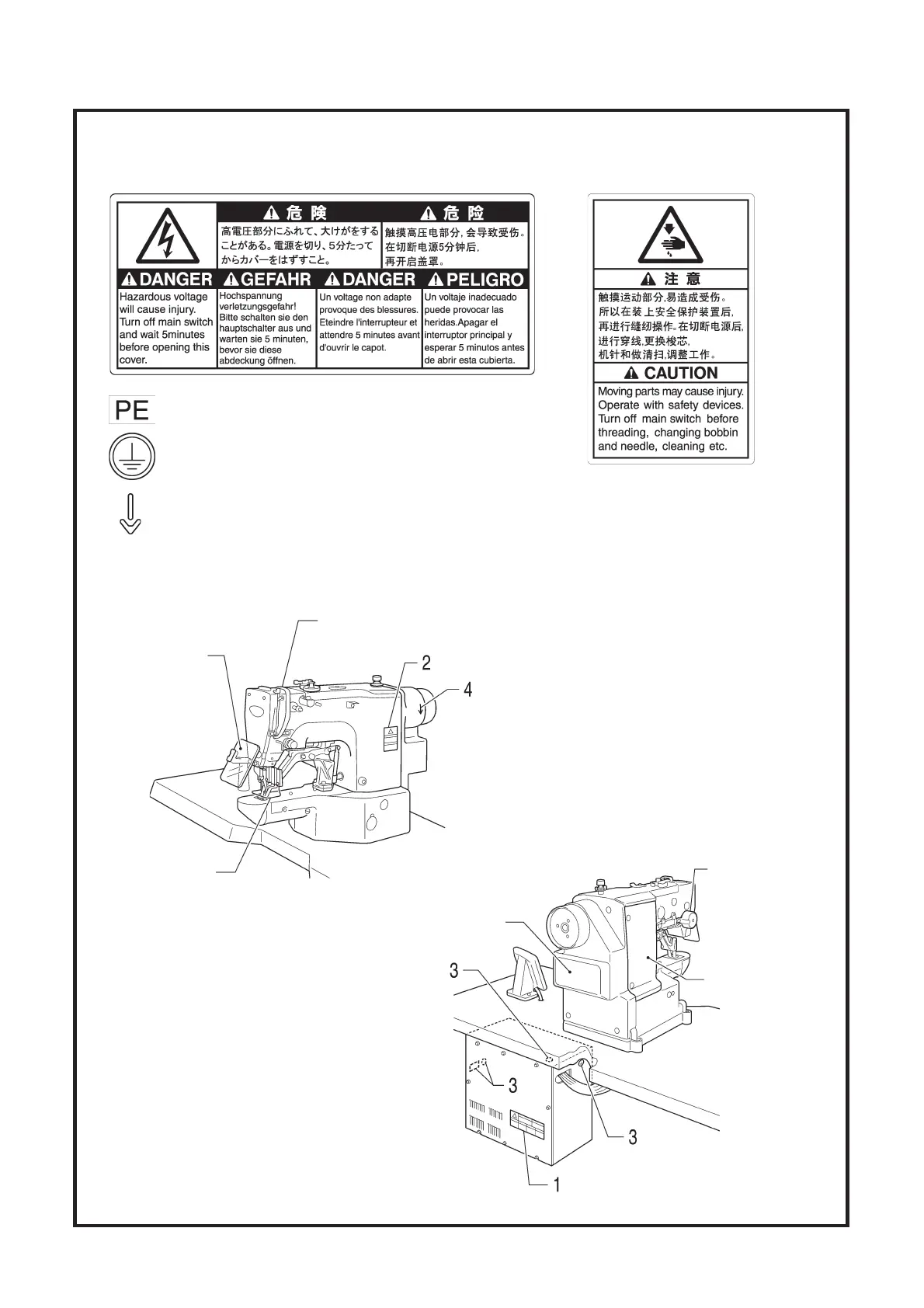

3. Warning labels
The following warning labels appear on the sewing machine.
Please follow the instructions on the labels at all times when using the machine. If the labels have been removed or are
difficult to read, please contact your nearest Brother dealer.
1 2
3
Be sure to connect the ground. If the ground
connection is not secure, you run a high risk of
receiving a serious electric shock, and problems
with correct operation may also occur.
Safety devices
4
Direction of operation
Eye guard
Finger guard
Tension release solenoid cover
Thread take-up cover
Frame side cover
Back cover, etc.
4399Q 4467Q
Thread take-up cover
Finger guard
Eye guard
Back cover
Tension release
solenoid cover
Frame side cover
To Next Page
